| Manufacturer | AIC |
| Product ID | XP1-T116DLXX |
| Model Number | TB116-DL |
| CPU | Supports Intel Xeon E-2300 Series Processor Socket LGA 1200 Supports CPU TDP up to 95W |
| Chipset | Intel C256 PCH |
| Memory | 4 x DDR4 DIMM slots Supports ECC UDIMM Maximum 128GB Capacity Dual Channel |
| Video | Aspeed AST2500 |
| Storage Technology | 1 x MiniSAS HD Connector (Supports 4 SATA) 2 x SATA Connectors 2 x M.2: PCI-E 3.0 x2/SATA |
| Connectivity | 1 x Realtek RTL8211EL Dedicated IPMI 2 x Intel I350-AM4/AM2 GbE LAN |
| Expansion | 2 x PCI-E 4.0 x8 slots 1 x PCI-E 3.0 x8 slot (x4 link) |

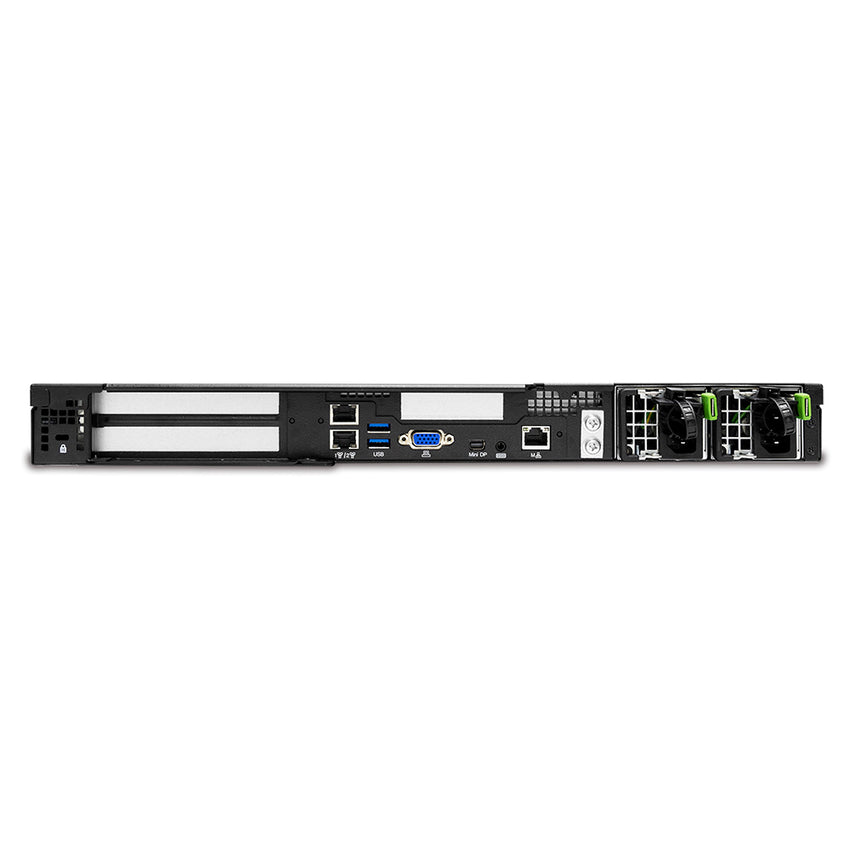

| Rear I/O | 2 x RJ45 GbE LAN 2 x USB 3.0 1 x VGA 1 x Mini DP (Requires CPU with Integrated Graphics) 1 x 3.5mm Audio Jack COM Port 1 x RJ45 Dedicated IPMI |

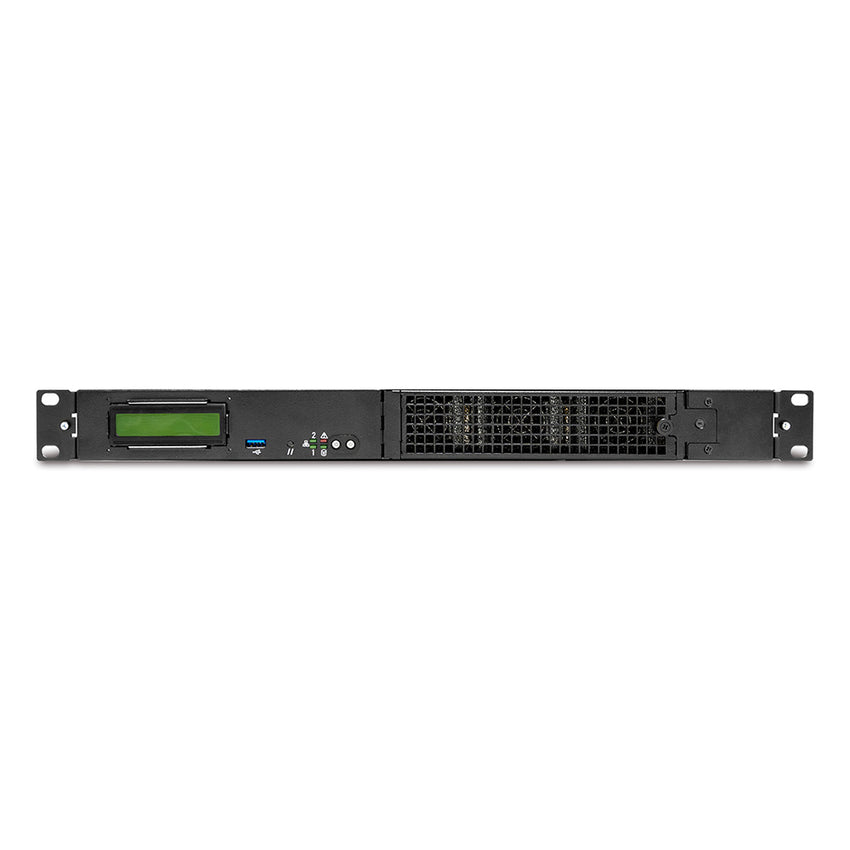

| Front Panel I/O | 1 x LCM Module 1 x USB 2.0 1 x NMI Button 4 x 5 x Status LED (Power, System, HDD, Network, System ID) 1 x ID Button 1 x Power Button |
| Drive Support | 1 x 3.5" SATA Drive Bay or 2 x 2.5" SATA Drive Bay 2 x M.2 22110 slots (PCI-E 3.0 x2/SATA) |
| Power Supply | 300W 1+1 80-PLUS Gold Redundant Power Supply AC Input: 100-240V, 50-60Hz, 5-3A |
| Cooling | 3 x 40x56mm Hotswap Fans |
| Case Dimensions | 1U Rackmount 432.8 x 541.8 x 44.4mm 17" x 21.3" x 1.75 (in inches) Weight: 22 kgs, 48.5 lbs 20" Fixed Rail |
| Environmental | Operating Temperature: 0°C to 35°C (32°F to 95°F) Non-operating Temperature: -10°C to 60°C (14°F to 140°F) Non-Operating Humidity: 5% to 95% (non-condensing) |
| Warranty | 1 Year Manufacturer's Limited Warranty |
PRODUCT ID: XP1-T116DLXX
