Product ID | VM-DP4U-083ER |
Certified Model Number | FT48TB7105 / B7105F48TV4HR-2T-N |
CPU | Supports Dual Intel Xeon Scalable Processor LGA 3647 Supports up to 205W TDP |
Chipset | Intel C621 |
Memory | Supports 6 x DDR4 DIMM per CPU, 12 total Supports up to 384GB RDIMM Supports up to 768GB LRDIMM Supports ECC RDIMM/LRDIMM/RDIMM 3DS/LRDIMM 3DS Supports 6-Channels |
Video | Aspeed AST2500 |
Storage Technology | 2 x SATADOM: 6.0Gb/s 2 x Mini-SAS HD (8 ports) M.2: PCI-E 3.0 x4 or SATA |
Connectivity | 2 x Intel X550-AT2 10GbE LAN 1 x Realtek RTL8211E Dedicated IPMI |
Expansion Slots | 5 x PCI-E 3.0 x16 slots (Full Height, Full Length, Double Width) 1 x PCI-E 3.0 x16 slot (Full Height, Full Length, Single Width) 5 x PCI-E 3.0 x8 slots (Full height, Full Length) |

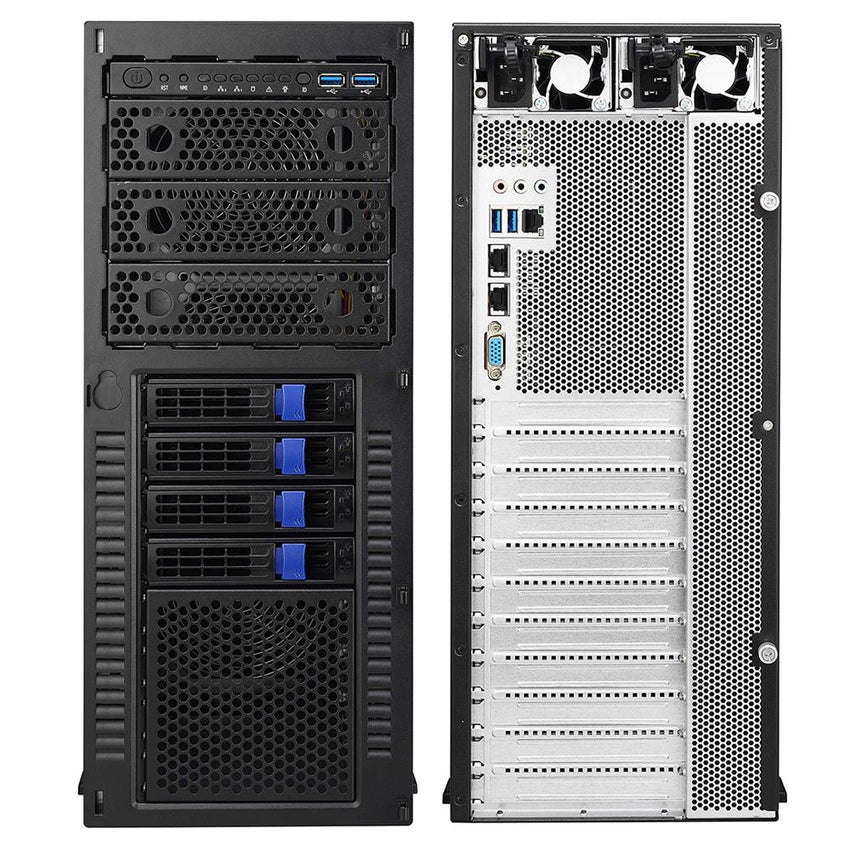

Rear Panel I/O | 3 x Audio I/O 1 x RJ45 IPMI 2 x USB 3.0 2 x RJ45 10GbE LAN 1 x VGA |
Front Panel I/O | 1 x Power Button 1 x Reset Button 1 x NMI Button 6 x Status LED 1 x ID Button 2 x USB 3.0 |
Drive Support | 5 x 5.25" Device Bays 4 x 3.5"/2.5" Hot Swap SATA Drive Bays |
Cooling | 5+1 x Hot Swap 120mm Fans |
Power Supply | 1+1 Redundant 1968W 80+ Platinum Power Supply 100-127Vac: 24A, 47-63Hz, 1000W Output 220-240Vac: 10A, 47-63Hz, 1968W Output |
Case Dimensions | 700 x 427 x 176mm 27.5" x 16.8" x 6.8" (in inches) Net Weight: 34 kg, 75 lbs |
Mounting | Optional 4U Rackmountable |
OS Software | VMware Compatible ESXi 6.7 U1, ESXi 6.7, ESXi 6.5 U2, ESXi 6.5 U1, ESXi 6.5 |
Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°C) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 90% (Non-condensing) at 35°C Non-operating Humidity: 90% (Non-condensing) at 35°C |
Warranty | 1-Year Manufacturer's Limited Warranty |
