| Product ID | VM-DP2U-162ER |
| Certified Model Number | SYS-2029P-C1R |
| CPU | Supports Dual Intel Xeon Scalable Processor LGA 3647 Supports up to 205W TDP |
| Chipset | Intel C621 |
| Memory | Supports 8 x DDR4 DIMM per CPU, 16 total Supports up to 2TB LRDIMM 2666/2400/2133 MHz Supports ECC RDIMM/LRDIMM |
| Video | Aspeed AST2500 BMC |
| Storage Technology | 8 x SATA3 6.0Gb/s Ports 8 x SAS 12Gb/s Ports via Broadcom 3108 controller SAS Supports RAID 0, 1, 5, 6, 10, 50, 60 1 x M.2: PCI-E 3.0 x4 |
| Connectivity | 2 x Intel X722 GbE LAN 1 x Realtek RTL8211E-VB-CG Dedicated IPMI Redfish features require OOB or DCMS License |
| Expansion Slots | 4 x PCI-E 3.0 x16 slots 1 x PCI-E 3.0 x8 Supports total of 5 Low Profile Add on Cards |

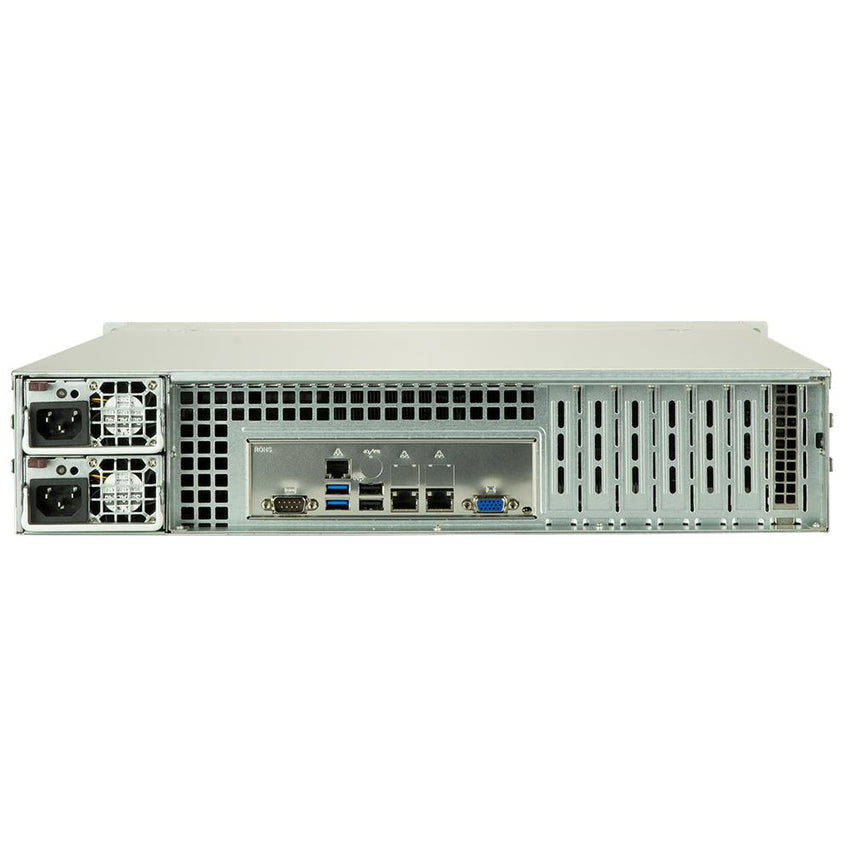

| Rear Panel I/O | 1 x Serial COM Port 1 x RJ45 Dedicated IPMI 2 x USB 3.0 2 x USB 2.0 2 x RJ45 GbE LAN 1 x VGA |

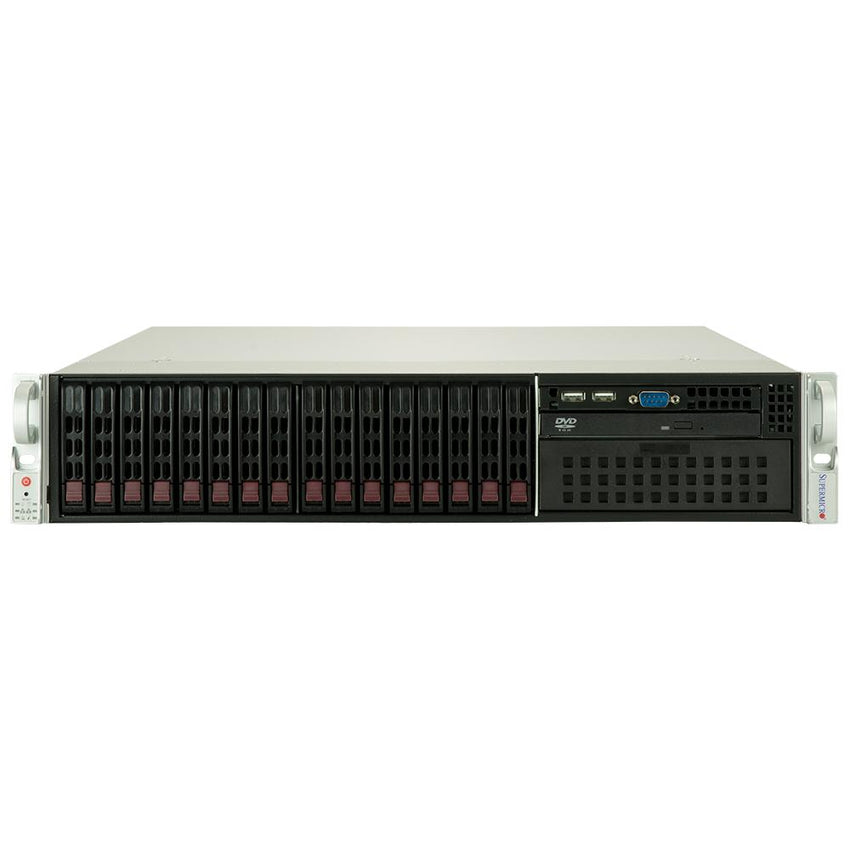

| Front Panel I/O | 2 x USB 2.0 1 x Serial COM Port 1 x Power Button 1 x Reset Button 5 x Status LED |
| Drive Support | 8 x 2.5" Hot Swap SATA3 Drive Bays 8 x 2.5" Hot Swap SAS Drive Bays 1 x M.2 2260/2280/21100 slot (PCI-E 3.0 x4) |
| Cooling | 3 x 80mm PWM System Fans |
| Power Supply | 1+1 Redundant 1200W 80+ Titanium Power Supply 100-127Vac, 15-12A, 50-60Hz, 1000W 200-240Vac, 8.5-7A, 50-60Hz, 1200W 200-240Vdc, 8.5-7A (CCC Only) +12V: Max 83A, Min 0A (100-127Vac) +12V: Max 100A, Min 0A (200-240Vac) +12V: Max 100A, Min 0A (200-240Vdc) +5Vsb: Max 4A, Min 0A |
| Case Dimensions | 2U Rackmount 630 x 437 x 89mm 24.8" x 17.2" x 3.5" (in inches) Net Weight: 29.0 kg, 64 lbs |
| OS Software | VMware Compatible ESXi 6.7 U1, ESXi 6.7, ESXi 6.5 U2, ESXi 6.5 U1, ESXi 6.5 |
| Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°C) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Humidity: 8% to 90% (Non-condensing) Non-operating Humidity: 20% to 90% (Non-condensing) |
| Warranty | 1-Year Manufacturer's Limited Warranty |
PRODUCT ID: VM-DP2U-162ER
