Product ID | VM-DP2U-123ER |
Certified Model Number | TN76B7102 / B7102T76V12HR-2T-N |
CPU | Supports Dual Intel Xeon Scalable Processor LGA 3647 Supports up to 165W TDP |
Chipset | Intel C621 |
Memory | 12x DDR4-2666MHz DIMM Slots per CPU, 24 total Supports up to 1,536GB RDIMM Supports up to 1,536GB LRDIMM Supports up 3,072GB RDIMM 3DS/LRDIMM 3DS 6 Channel per CPU, 1.2V |
Video | Aspeed AST2500 VGA Max Resolution: 1920x1200 |
Storage Technology | SATA: 2x Mini-SAS (8-ports) eSATA: 2x SATA-DOM / 1x Mini-SAS HD (4-ports) 6.0 Gb/s |
Connectivity | 2x Intel X550-AT2 10GbE 1x Realtek RTL8211E PHY Dedicated IPMI |
Expansion Slots | 4x PCI-E Gen3 x16 slots 4x PCI-E Gen3 x8 slots 1x PCI-E Gen3 x8 OCP 2.0 slots (conn.A+conn.C) 1x PCI-E Gen3 x8 Storage Mezz. slot |

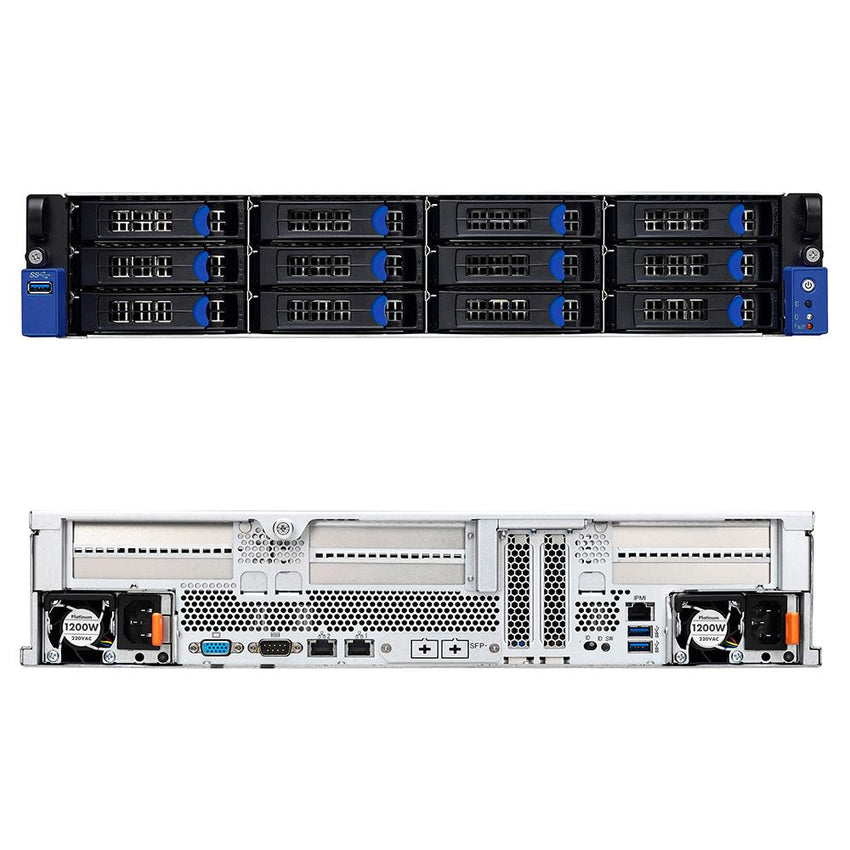

Rear Panel I/O | 2x USB 3.0 1x COM Port 1x VGA 2x RJ45 10GbE LAN 1x RJ45 Dedicated IPMI |
Front Panel I/O | 1x ID 1x Power with LED 2x Status LEDs (ID, Warning) 1x USB 3.0 |
Drive Support | 12x 3.5"/2.5" Hot-Swap HDD/SSD (External) 1x M.2 (2242) by PCI-E Interface 1x M.2 (2280) by PCI-E Interface |
Cooling | 12 x 60mm System Fans |
Power Supply | 1+1 Redundant 1,200W 80-PLUS Platinum RPSU AC 100-127V/12.47A 200-240V/7.08A |

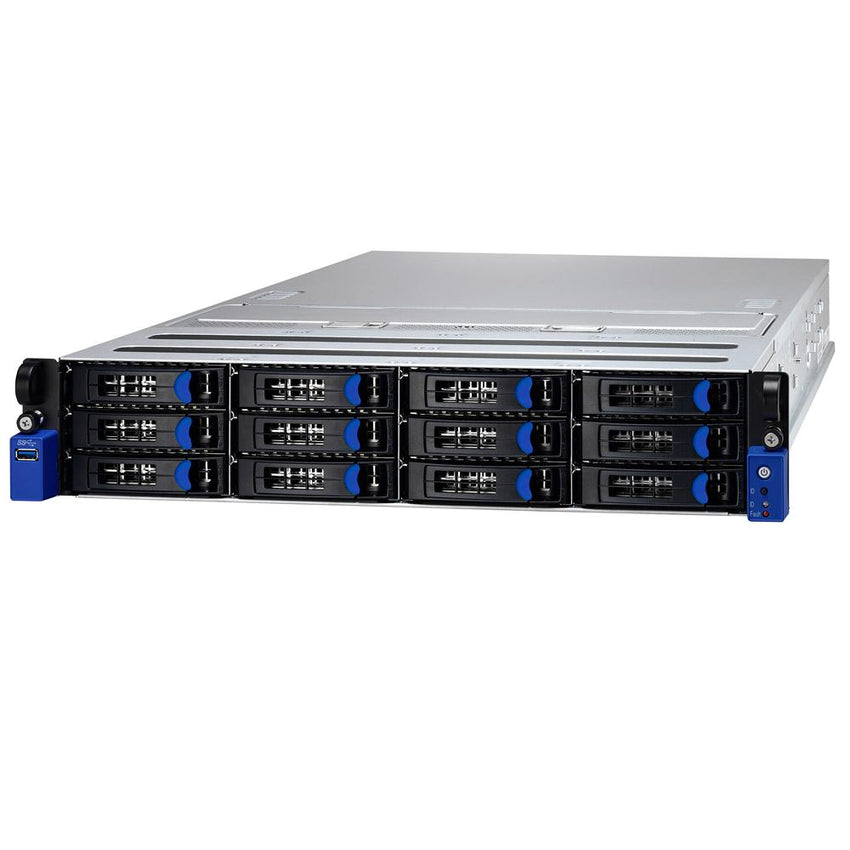

Case Dimensions | 2U Rackmount 760 x 438 x 87.6mm 29.9" x 17.2" x 3.4" (in inches) Gross Weight: 37 kg, 82 lbs Net Weight: 28 kg, 62 lbs |
OS Software | VMware Compatible ESXi 6.7 U1, ESXi 6.7, ESXi 6.5 U2, ESXi 6.5 U1, ESXi 6.5 ESXi 6.0 U3 |
Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°C) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 90% (Non-condensing) at 35°C Non-operating Humidty: 90% (Non-condensing) at 35°C |
Warranty | 1-Year Manufacturer's Limited Warranty |
