Manufacturer | Supermicro |
Product ID | SYS-6049GP-TRT |
CPU | Supports 2 x Intel Xeon Scalable Processors Socket P, LGA 3647 Support CPU TDP 70-205W Up to 28 Cores |
Chipset | Intel C622 |
Memory | 24 x DDR4 DIMM slots Supports up to 6TB 3DS ECC RDIMM/LRDIMM Supports up to 3TB ECC LRDIMM Supports up to 1,536GB ECC RDIMM 2133MHz Minimum Supports Intel Optane DCPMM with Cascade Lake processor |
Video | Aspeed AST2500BMC |
Storage Technology | 10 x SATA3 6Gb/s Ports, RAID 0, 1, 5, 10 1 x M.2 Slots (PCI-E 3.0 x4) |
Connectivity | 2 x SoC 10GBase-T LAN 1 x Realtek PHY RTL8211E Dedicated IPMI |
Expansion | 20 x PCI-E 3.0 x16 slots (Single width) 1 x PCI-E 3.0 x8 (FHFL in x16 slot) |

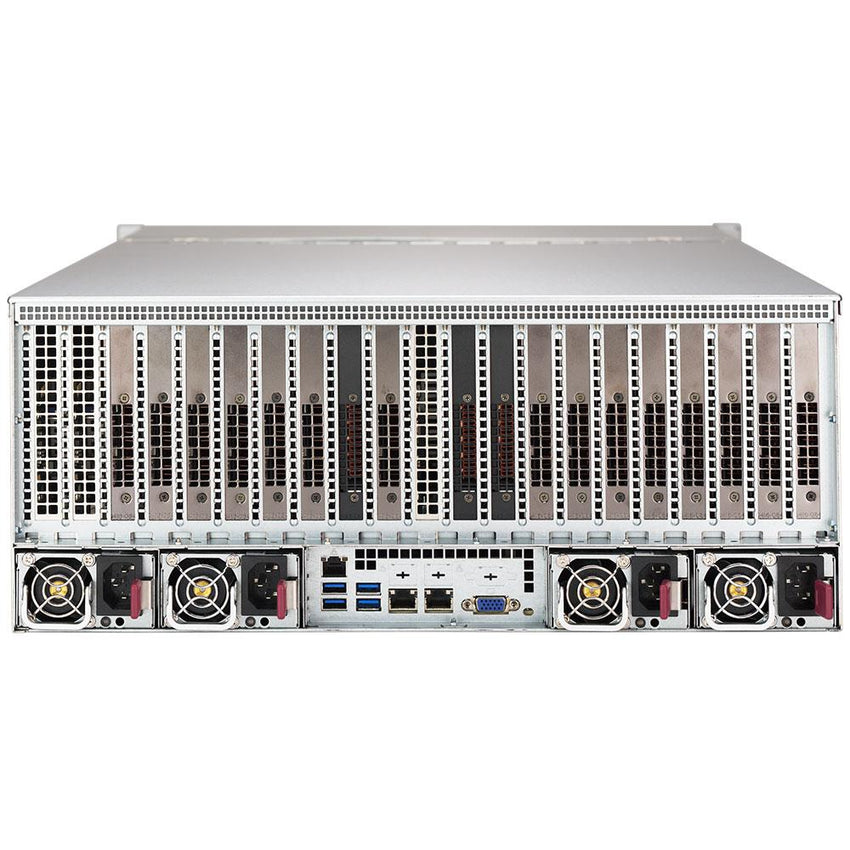

Rear I/O | 1 x RJ45 Dedicated IPMI 4 x USB 3.0 2 x RJ45 10GbE LAN 1 x VGA |

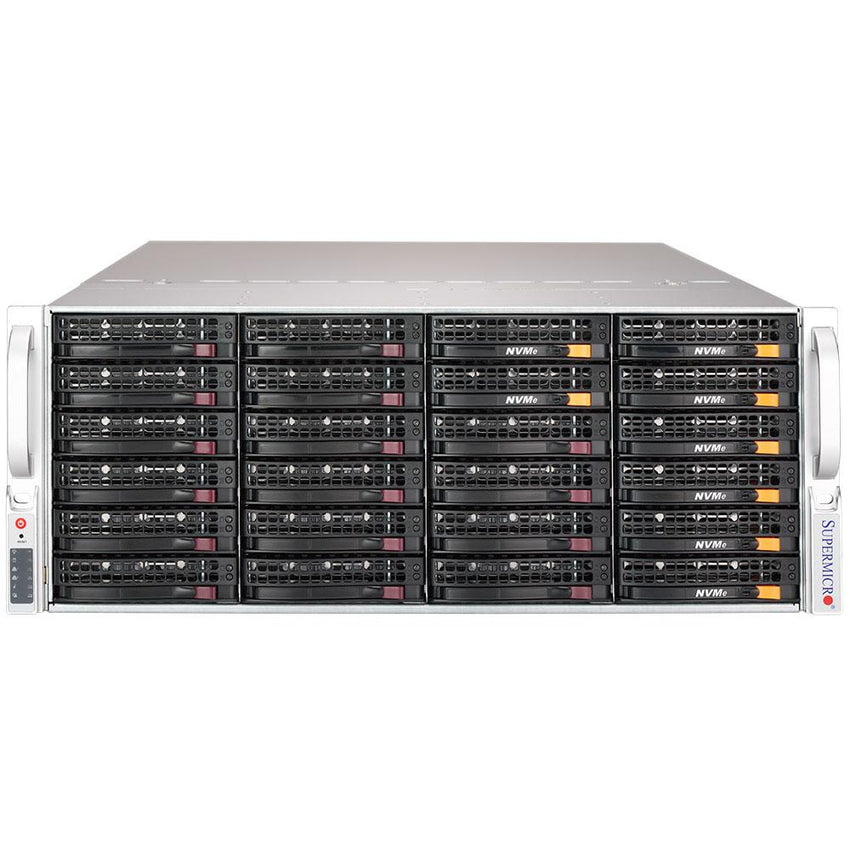

Front Panel I/O | 1 x Power Button 1 x Reset Button 6 x Status LED (Power, HDD, LAN, Status) |
Drive Support | 24 x 3.5" Hot Swap Drive Bays Optional 2 x U.2 NVMe 2.5" Drives |
Power Supply | 2+2 2000W Redundant 80 PLUS Titanium PS with PMBus 100-120Vac, 12.5-9.5A, 50-60Hz 200-220Vac, 10-9.5A, 50-60Hz 220-230Vac, 10-9.8A, 50-60Hz 230-240Vac, 10-9.8A, 50-60Hz 200-240Vac, 11.8-9.8A, 50-60Hz (UL/cUL only) |
Cooling | 8 x 92mm Hot Swappable Fans |
Case Dimensions | 815 x 437 x 178mm 32.1" x 17.2" x 7.0" (in inches) |
Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Humidity: 8% to 90% (non-condensing) Non-operating Humidity: 5% to 95% (non-condensing) |
Compliance | RoHS Compliant |
Warranty | 1 Year Manufacturer's Limited Warranty |
