Supermicro SuperServer 6029P-WTR Dual Intel Xeon CPU, 2U Rackmount, 8x 3.5" Hot-swap bays, 2x fixed 3.5" drive bays, Redundant PSU
Manufacturer	Supermicro
Model Number	SYS-6029P-WTR
CPU	Supports 2x Intel Xeon Scalable Processors Socket P, LGA 3647 205W Max TDP
Chipset	Intel C621
Memory	Supports 6x DDR4-2666 ECC RDIMM Slots per CPU (12 Total) 6-Channel, 1.2V Supports up to 768GB ECC RDIMM Supports up to 1.5TB ECC LRDIMM 3DS
Video	Aspeed AST2500 BMC
Storage Technology	SATA3 6.0Gb/s RAID 0, 1, 5, 10
Connectivity	2x GbE LAN from Intel C621 1x Realtek RTL8211E-VB-CG dedicated IPMI
Expansion	4x PCI-E 3.0 x16 slots (Full Height, Half Length) 2x PCI-E 3.0 x8 slots (Low Profile) 1x PCI-E 3.0 x16 (Add on Module)

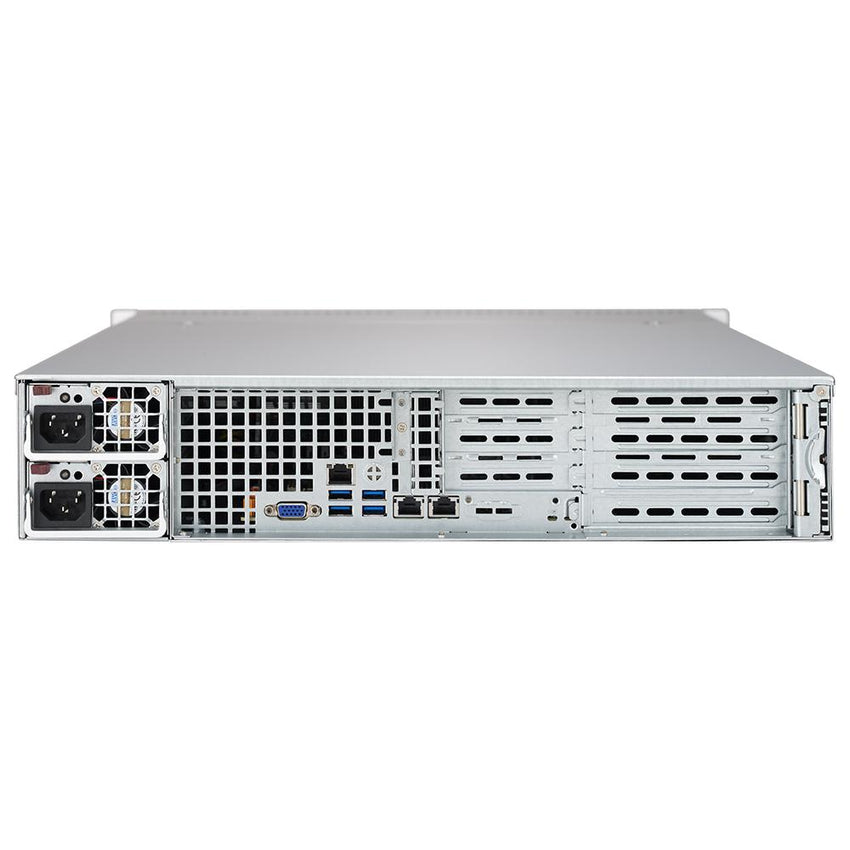

Rear I/O	1x VGA Ports 1x RJ45 (Dedicated IPMI) 4x USB 3.0 Ports 2x RJ45 GbE LAN

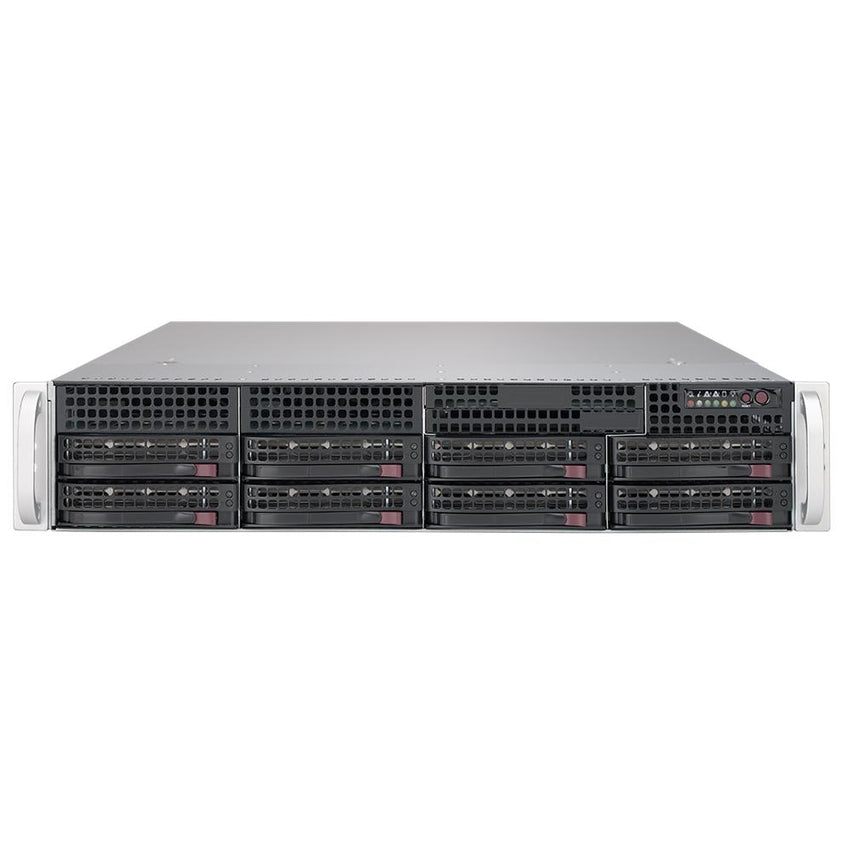

Front I/O	5x Status LED (Power, HDD, Network) 1x Reset Button 1x Power Button
Drive Support	8x 3.5" Hot-Swap SAS/SATA Drive bays with SGPIO (External) 2x 3.5" Fixed SATA Drive Bays (Internal) 1x M.2 (2242,2260,2280,22110) PCI-E 3.0 x4 (Internal)
Power Supply	Redundant 1000W 80-PLUS Titanium Power Supply Input: 100-127Vac, 15-12A, 50-60Hz 200-240Vac, 8.5-7A, 50-60Hz +12V: 83A, Min 0A (100-127Vac) 100A, Min 0A (200-240Vac) +5Vsb: Max 4A, Min 0A
Case Dimensions	2U Rackmount 648 x 437 x 89mm 25.5" x 17.2" x 3.5" (in inches) Net Weight: 27.2 kg, 60 lbs Gross Weight: 28.1 kg, 62 lbs
Case Cooling	Includes 3x 80x38mm 9.4K RPM Hot-Swappable Cooling Fans
Warranty	1-Year Warranty on Parts and Labor
