Manufacturer | Supermicro |

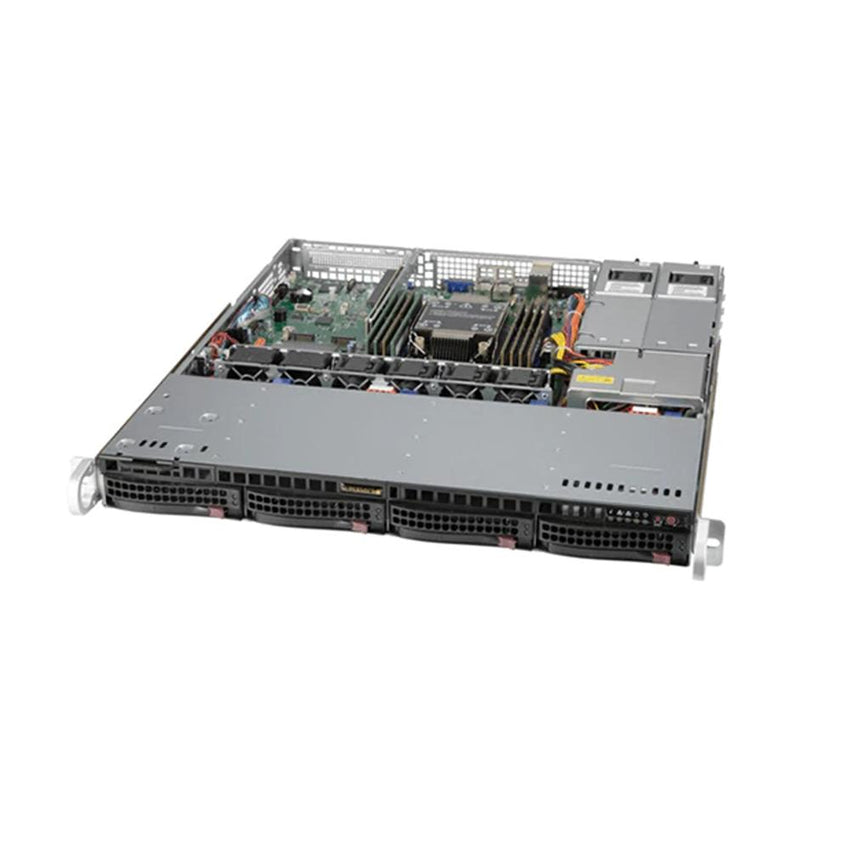

Product ID | SYS-510P-MR |
CPU | Supports Intel 3rd Gen Xeon Scalable Processors Ice Lake Socket P+ (LGA 4189) Support CPU TDP 220W |
Chipset | Intel C621A |
Memory | 8 x DDR4 DIMM Slots Up to 2TB ECC RDIMM/LRDIMM 3200/2933/2666MHz Supports Intel Optane Persistent Memory 200 Series |
Video | ASPEED AST2600 BMC |
Storage Technology | 10 x SATA3 6Gbps Ports Support SoC RAID 0/1/5/10 2 x NVMe Support via Optional Cable (CBL-SAST-1264-85) Support RAID 0/1/5/10 M.2: PCI-E 3.0 x4 or SATA |
Connectivity | 2 x Intel i350 GbE LAN 1 x Realtek RTL8211F Dedicated IPMI |
Expansion | 1 x PCI-E 4.0 x16 slot (Full Height, Half Length) 2 x M.2 22110/2280 slots (M Key, PCI-E 3.0 x4 or SATA) |
Rear I/O | 1 x Serial Port 1 x RJ45 Dedicated IPMI 2 x USB 2.0 2 x USB 3.2 (Gen1) 2 x RJ45 GbE LAN 1 x VGA |
Front Panel I/O | 5 x Status LED (Power, HDD, LAN, BMC) 1 x Reset Button 1 x Power Button |
Drive Support | 4 x 3.5" SATA Hotswap Drive Bays Note: NVMe support requires Optional Cable and Drive Bracket |
Power Supply | Redundant 400W 80 PLUS Platinum Power Supply 100-240VAC, 6.0-3.0A, 50-60Hz 200-240VDC, 3.4-3.2A, 50-60Hz |
Cooling | Supports 6 x 40x28mm Case Fans Includes 4 x 40x28mm PWM Fans |
Case Dimensions | 1U Form Factor 19.98" x 17.2" x 1.7" (in inches) 507 x 437 x 43mm |
Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-Operating Temperature: -40°C to 70°C (-40°F to 158°F) Non-Operating Humidity: 5% to 95% (non-condensing) |
Warranty | 1 Year Manufacturer's Limited Warranty |
