| Manufacturer | Supermicro |
| Product ID | SYS-5029A-2TN4 |
| CPU | Intel Atom C3338 Processor 1.50 - 2.20 GHz 2 Cores / 2 Threads 8.5W TDP, 4MB Cache |
| Chipset | SoC |
| Memory | 2 x DDR4 DIMM slots Supports up to 64GB ECC RDIMM Supports up to 32GB UDIMM 2400/2133/1866/1600MHz (Operates up to 1866MHz) |
| Video | Aspeed AST2540 BMC |
| Storage Technology | 6 x SATA3 6.0Gb/s Ports |
| Connectivity | 4 x Intel SoC GbE LAN 1 x Realtek RTL8211F Dedicated IPMI |
| Expansion | 1 x PCI-E 3.0 x2 (in x4) Low Profile Slot Note: Configurable up to x4 but shared lanes with SATA ports up to 8 |

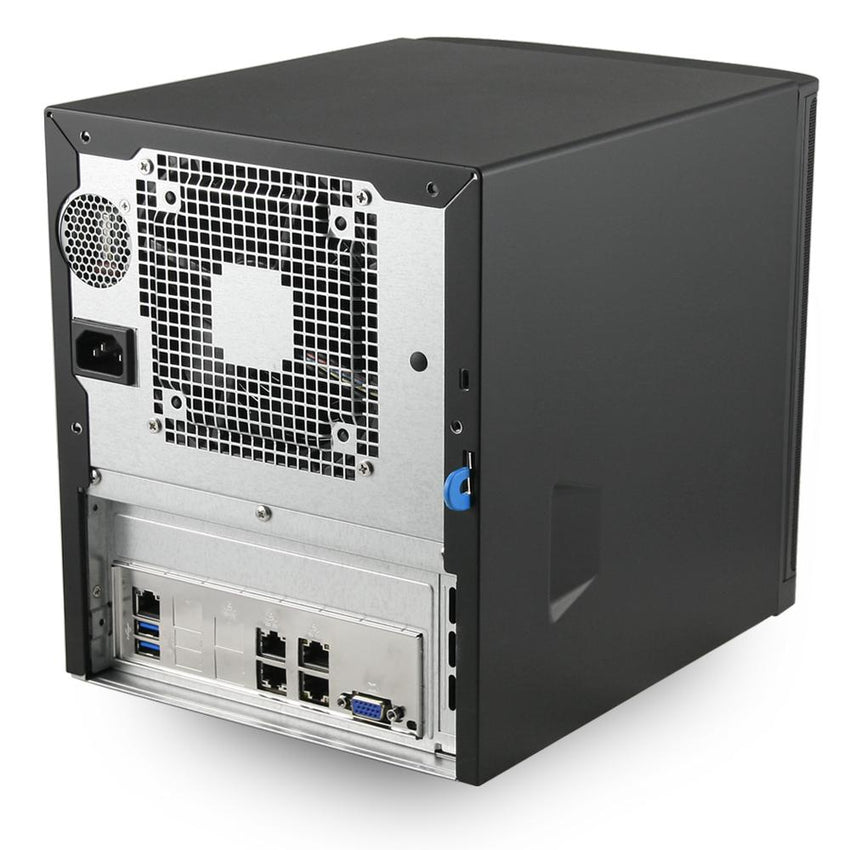

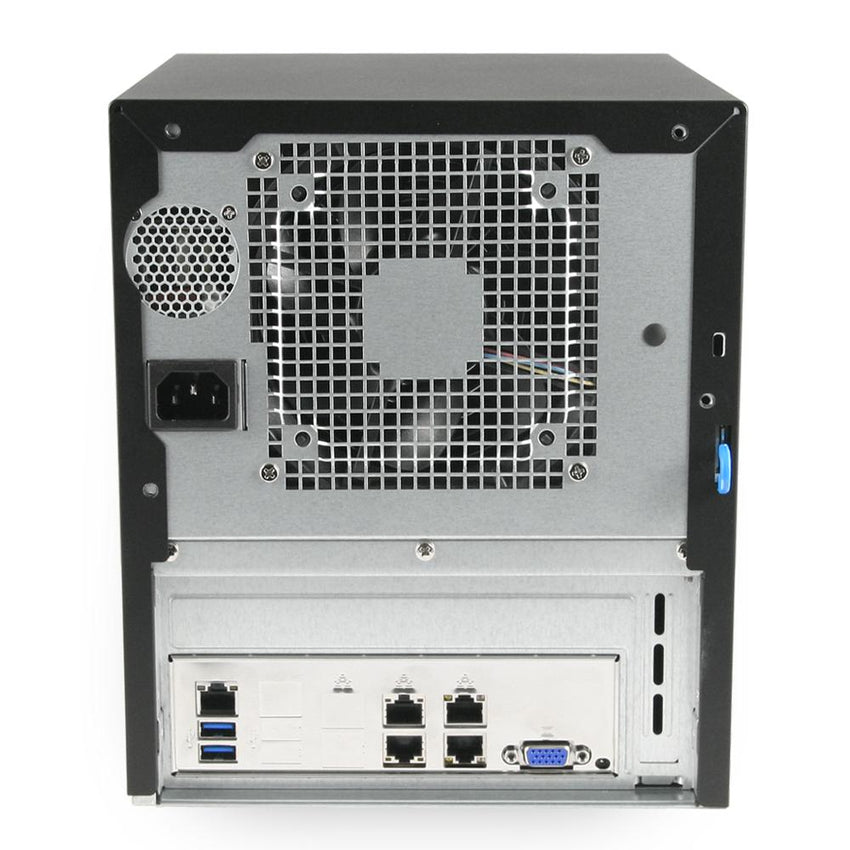

| Rear I/O | 1 x RJ45 Dedicated IPMI 2 x USB 3.0 4 x RJ45 GbE LAN 1 x VGA |
| Front Panel I/O | 1 x Power LED 1 x Hard Drive activity LED 2 x Network activity LED 1 x System LED 1 x Reset Button 1 x Power Switch 2 x USB 2.0 |

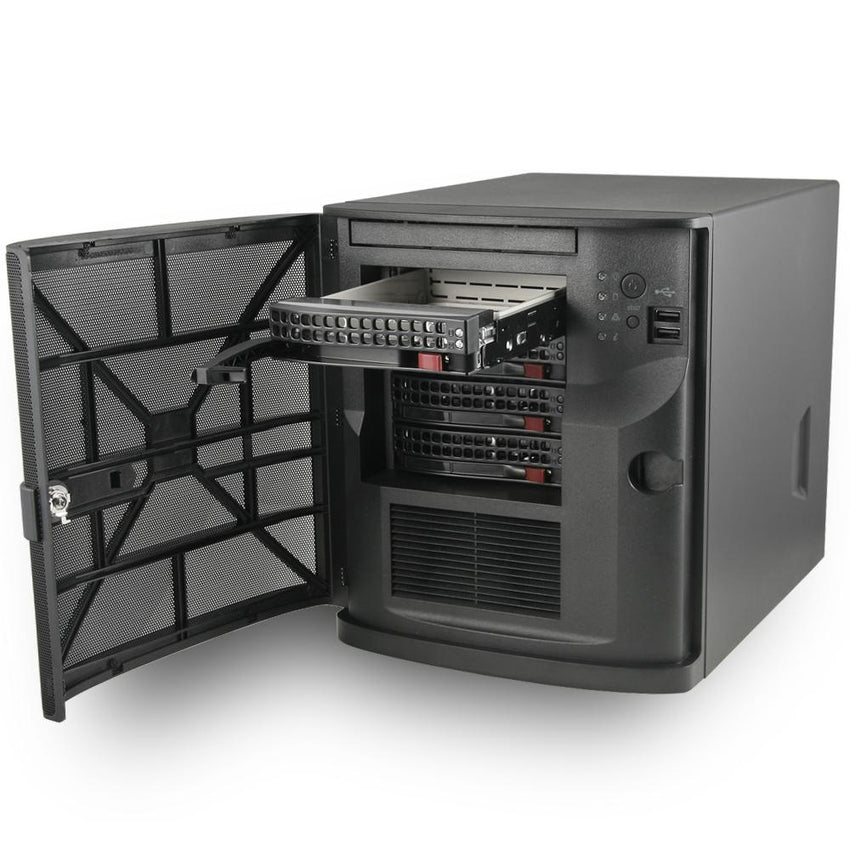

| Drive Support | 4 x Hot-swappable 3.5" Drive Bays 2 x Fixed 2.5" Drive Bays |
| Power Supply | 250W 80 PLUS Bronze Flex ATX Power Supply AC Voltage: 100 ~ 240V, 50-60Hz |
| Cooling | 1 x 120mm Rear Exhaust Fan |
| Case Dimensions | Mini Tower 279 x 210 x 240mm ,br> 11" x 8.27" x 9.45" (in inches) Weight: 15lbs, 6.8kg |
| Environmental | Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 8% to 90% (non-condensing) Non-operating Humidty: 5% to 95% (non-condensing) |
| Compliance | RoHS |
| Warranty | 1 Year Manufacturer's Limited Warranty on Parts 3 Year manufacturer's Limited Warrany on Labor |
PRODUCT ID: SYS-5029A-2TN4
