Manufacturer | Supermicro |
Product ID | SYS-5019P-MR |
CPU |
Supports Intel Xeon Scalable Processors Socket P, LGA 3647 Supports CPU TDP 70-165W |
Chipset | Intel C621 |
Memory |
6 x DDR4 DIMM slots Supports up to 384GB RDIMM/LRDIMM Supports up to 1.5TB 3DS LRDIMM 2133/2400/2666 MHz |
Video | ASPEED AST2500 BMC |
Storage Technology |
12 x SATA3 6.0Gbps Ports 2 x SATADOM Ports M.2: PCI-E 3.0 x16 |
Connectivity |
2 x Marvell 88E1512 GbE LAN 1 x Realtek RTL8211F Dedicated IPMI LAN |
Expansion Slots | 1 x PCI-E 3.0 x16 (Full Height, Half Length) |

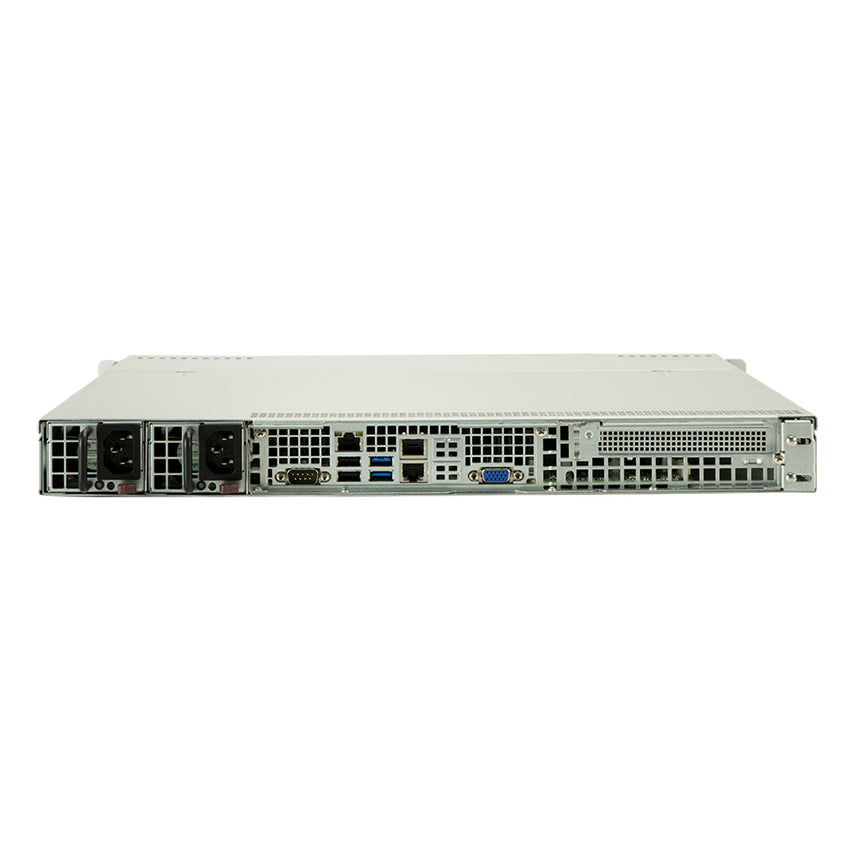

Rear Panel I/O |
1 x Serial COM Port 1 x RJ45 Dedicated IPMI 2 x USB 2.0 2 x USB 3.0 2 x RJ45 GbE LAN 1 x VGA |

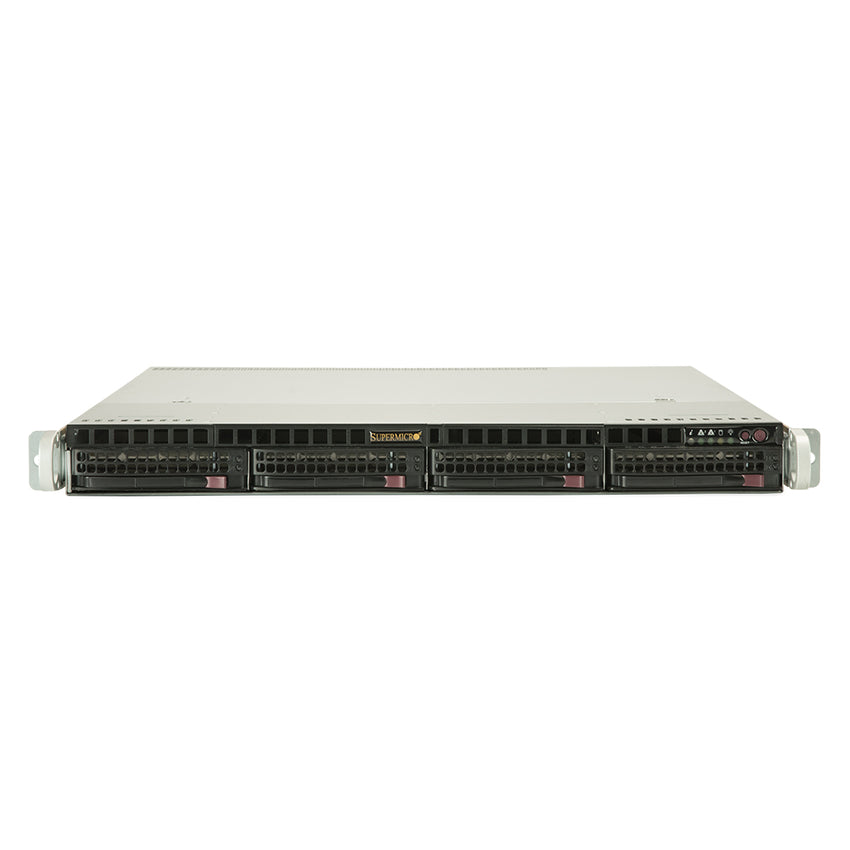

Front Panel I/O |
5 x Status LED (System Information, LAN, HDD, Power) 1 x Reset Button 1 x Power Button |
Drive Support |
4 x 3.5" Hotswap SATA Drive Bays 1 x M.2 2280/2242 slot (PCI-E 3.0 x16, M-Key) |
Cooling |
4 x 40x28mm PWM Fans Supports up to 6 x 40x28mm Fans |
Power Supply |
400W 80 PLUS Platinum Redundant Power Supply w/ PMbus 100-240Vdc, 50-60Hz, 6.0-3.0 A 200-240Vdc, 3.4 - 3.2A (CCC only) |
Case Dimensions |
1U Rackmount 503 x 437 x 43mm 19.85" x 17.2" x 1.7" (in inches) |
Environmental |
Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Humidity: 8% to 90% (non-condensing) Non-operating Humidty: 5% to 95% (non-condensing) |
Compliance |
RoHS |
Warranty |
1-Year Manufacturer's Limited Warranty on Parts 3-Year Manufacturer's Limited Warranty on Labor |
