Manufacturer	Supermicro
Product ID	SYS-5019P-M
CPU	Supports Intel Xeon Scalable Processors Socket P, LGA 3647 Supports CPU TDP 70-165W
Chipset	Intel C621
Memory	6 x DDR4 DIMM slots Supports up to 384GB RDIMM/LRDIMM Supports up to 1.5TB 3DS LRDIMM 2133/2400/2666 MHz
Video	ASPEED AST2500 BMC
Storage Technology	12 x SATA3 6.0Gbps Ports 2 x SATADOM Ports M.2: PCI-E 3.0 x16
Connectivity	2 x Marvell 88E1512 GbE LAN 1 x Realtek RTL8211F Dedicated IPMI LAN
Expansion Slots	1 x PCI-E 3.0 x16 (Full Height, Half Length)

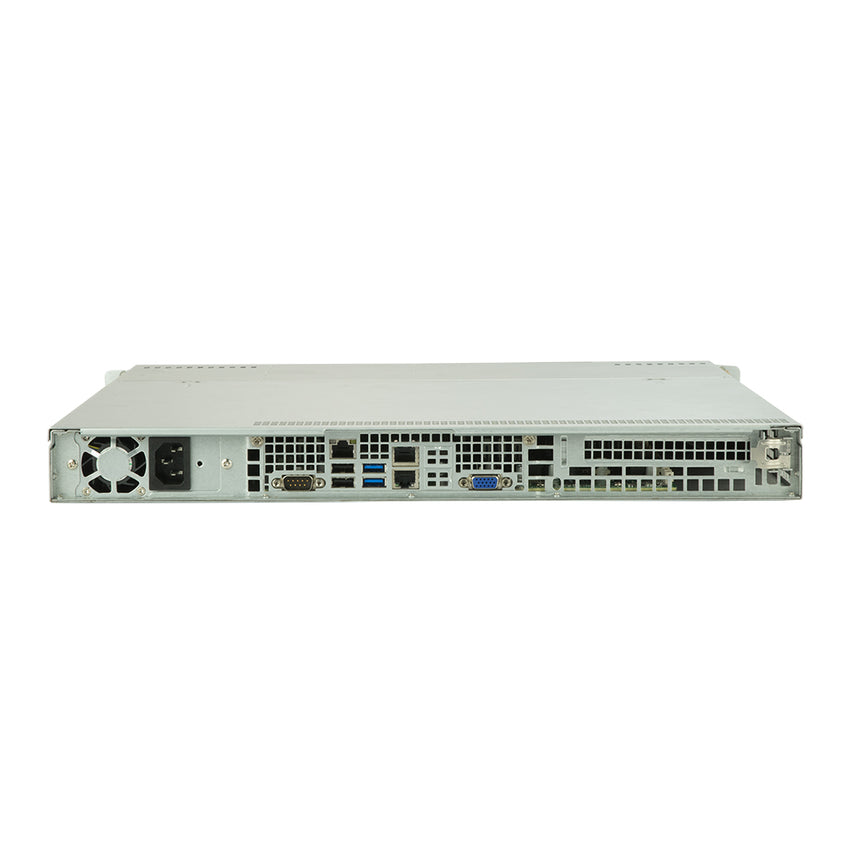

Rear Panel I/O	1 x Serial COM Port 1 x RJ45 Dedicated IPMI 2 x USB 2.0 2 x USB 3.0 2 x RJ45 GbE LAN 1 x VGA

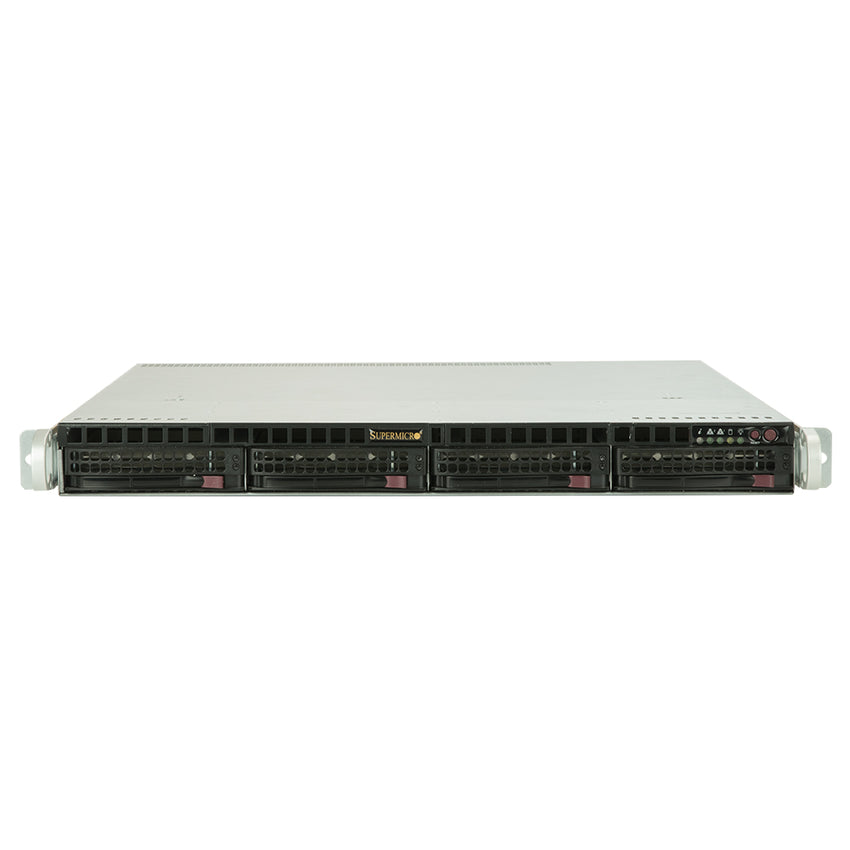

Front Panel I/O	5 x Status LED (System Information, LAN, HDD, Power) 1 x Reset Button 1 x Power Button
Drive Support	4 x 3.5" Hotswap SATA Drive Bays 1 x M.2 2280/2242 slot (PCI-E 3.0 x16, M-Key)
Cooling	4 x 40x28mm PWM Fans Supports up to 6 x 40x28mm Fans
Power Supply	350W 80 PLUS Platinum Power Supply w/ PFC 100-240V 50-60Hz 4.2-1.8 Amp
Case Dimensions	1U Rackmount 503 x 437 x 43mm 19.85" x 17.2" x 1.7" (in inches)
Environmental	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Humidity: 8% to 90% (non-condensing) Non-operating Humidty: 5% to 95% (non-condensing)
Compliance	RoHS
Warranty	1-Year Manufacturer's Limited Warranty on Parts 3-Year Manufacturer's Limited Warranty on Labor
