Manufacturer	Supermicro
Product ID	SYS-5019C-MR
CPU	Supports Intel Xeon E-2100 Processors Supports Intel 8th Gen Core i3 Processors LGA 1151 Supports up to 95W TDP
Chipset	Intel C246
Memory	4 x DDR4 DIMM slots Supports ECC UDIMM Supports up to 128 GB Capacity Supports up to 2666 MHz
Video	Aspeed AST2500 BMC
Storage Technology	6 x SATA3 6Gb/s Ports Supports RAID 0, 1, 5, 10 1 x M.2: SATA or PCI-E 3.0 x4 1 x M.2: PCI-E 3.0 x4
Connectivity	1 x Realtek RTL8211F-CG Dedicated IPMI 2 x Intel I210-AT GbE LAN
Expansion	1 x PCI-E 3.0 x16

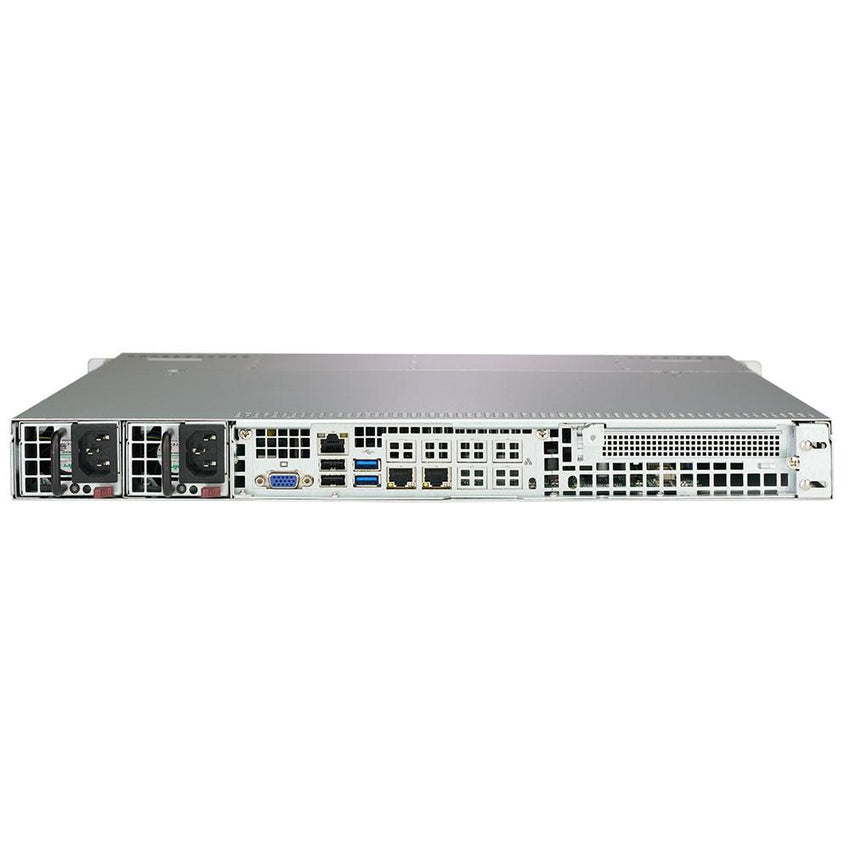

Rear Panel I/O	1 x VGA 1 x RJ45 Dedicated IPMI 2 x USB 2.0 2 x USB 3.0 2 x RJ45 GbE LAN

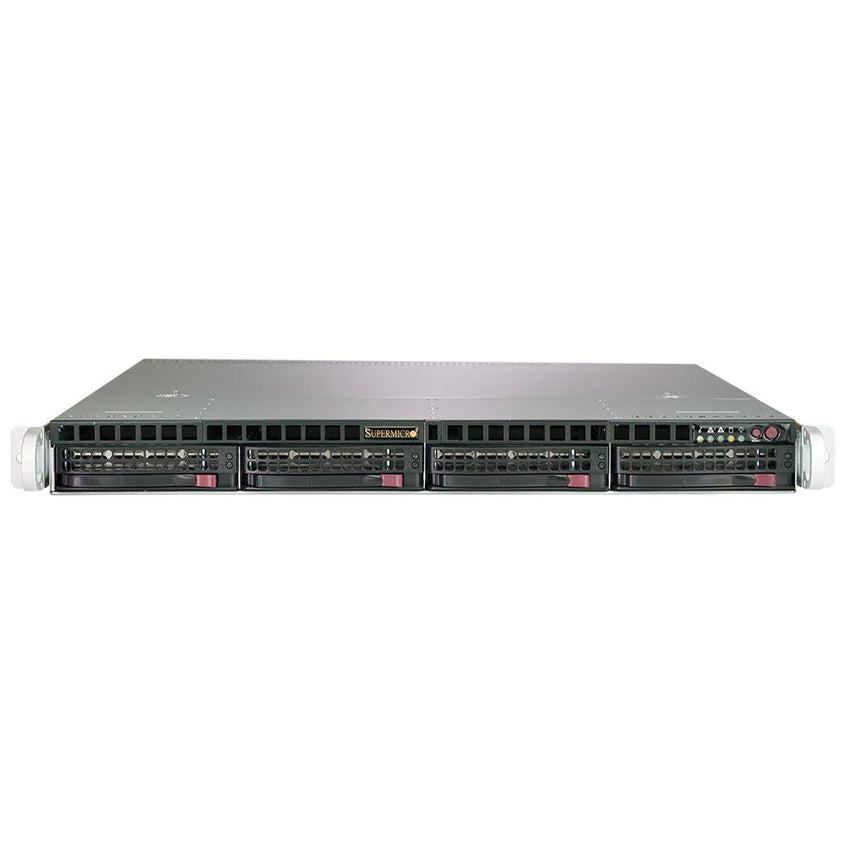

Front Panel I/O	5 x Status LED (Power, HDD, LAN, System) 1 x Reset Button 1 x Power Button
Drive Support	1 x M.2 slot (SATA/PCI-E 3.0 x4, 2280/22100) 1 x M.2 slot (PCI-E 3.0 x4, 2280/22110) 4 x 3.5" Hot Swap Drive Bays
Power Supply	400W Redundant 80 PLUS Platinum Power Supply with PMBus 100-240Vac, 50-60Hz, 6.0-3.0 Amp Max
Case Dimensions	1U Form Factor 503 x 437 x 43mm 19.85" x 17.2" x 1.7" (in inches)
Environmental	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 8% to 90% (non-condensing) Non-operating Humidity: 5% to 95% (non-condensing)
Compliance	RoHS
Warranty	1 Year Manufacturer's Limited Warranty on Parts 3 Year Manufactuere's Limited Warranty on Labor
