| Manufacturer | Supermicro |
| Product ID | SYS-110D-16C-FRAN8TP |
| CPU |
Intel Xeon D-2775TE 16-Core Processor 16 Cores / 32 Threads 2.0 - 3.1 GHz 100W TDP, 25 MB Cache |
| Chipset | SoC |

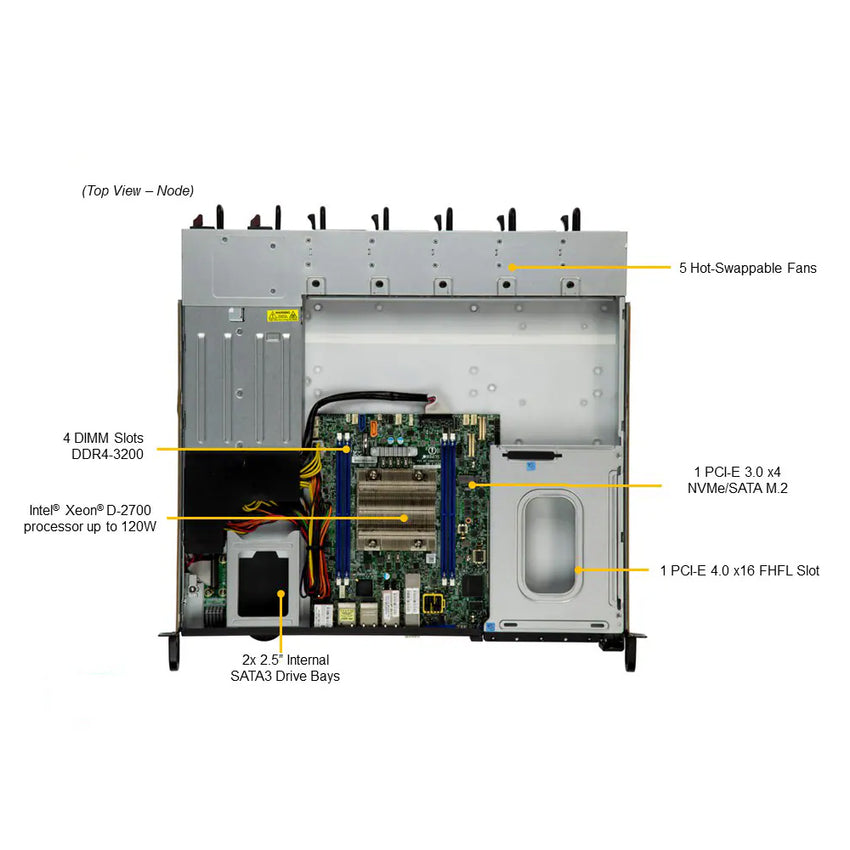

| Memory |
4 x DDR4 DIMM slots Maximum 256GB RDIMM Maximum 512GB LRDIMM 2933/2666/2400 MHz |
| Video | Aspeed AST2600 BMC |
| Storage Technology |
2 x SATA3 6Gb/s 1 x OCuLink: PCI-E 3.0 x4 or 4 x SATA Supports Software RAID 0, 1, 5, 10 1 x M.2: PCI-E 3.0x4 or SATA 2 x SlimSAS: PCI-E 4.0 x8 |
| Connectivity |
2 x SoC 25G LAN 2 x Intel X550 10G LAN 4 x Intel I350 GbE LAN 1 x Dedicated IPMI LAN |
| Expansion |
1 x PCI-E 4.0 x16 slot (Full Height, Full Length) |

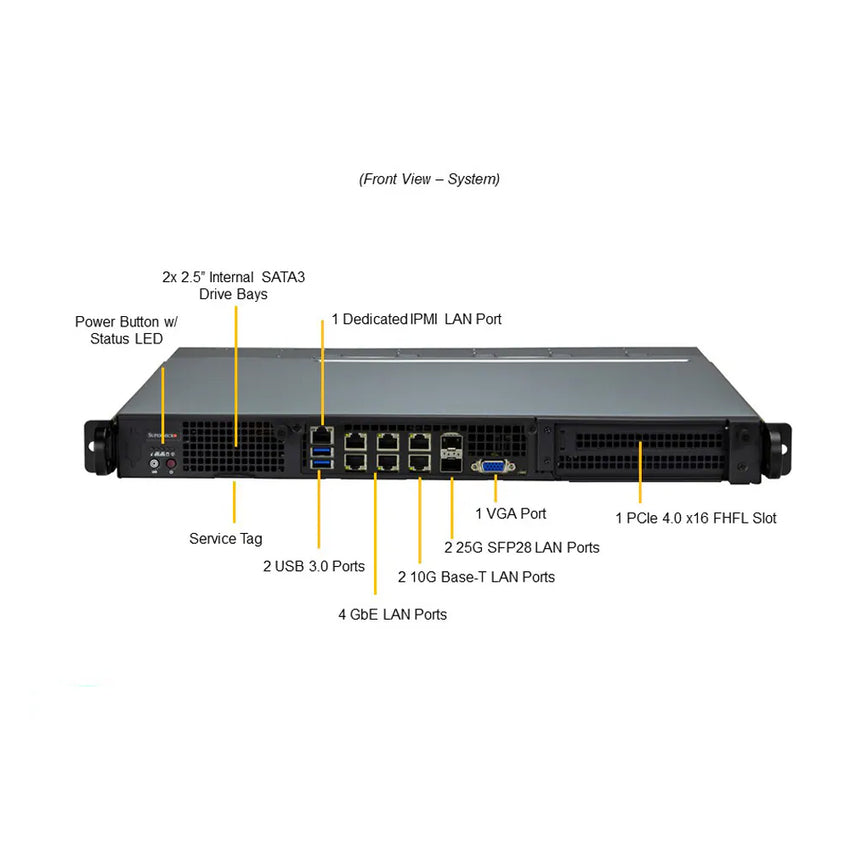

| Front Panel I/O |
6 x Status LED (LAN, HDD, System) 1 x Reset Button 1 x Power Button 1 x RJ45 Dedicated IPMI 2 x USB 3.2 (Gen1) 4 x RJ45 GbE LAN 2 x RJ45 10G LAN 2 x SFP28 25G LAN 1 x VGA |
| Drive Support |
2 x 2.5" Internal Drive Bays 1 x M.2 2242/2280 slot (M Key, PCI-E 3.0 x4 or SATA) |
| Power Supply |
800W Redundant Power Supply 100-240Vac, 50-60Hz |
| Cooling |
4 x 40x56mm 13K-11K RPM Case Fans |
| Case Dimensions |
1U rackmount 15.7" x 17.2" x 1.7" (in inches) 399 x 437 x 43mm |
| Environmental |
Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 8% to 95% (non-condensing) Non-Operating Humidity: 5% to 95% (non-condensing) |
| Warranty | 1 Year Manufacturer's Limited Warranty |
PRODUCT ID: SYS-110D-16C-FRAN8TP
