Manufacturer | ASUS |
Product ID | RS720Q-E11-RS8U-3WSTHS |
Model Number | RS720Q-E11-RS8U |
CPU | Supports 2 x Intel 4th Gen Xeon Scalable Processors per Node Sapphire Rapids, Socket LGA 4677 Supports up to 350W TDP |
Chipset | Intel C741 |
Memory | 16 x DDR5 DIMM slots per Node 4800 MHz Maximum up to 2 + 4TB (Per Node, DDR5 and Crow Pass) |
Video | Aspeed AST2600 with 64MB VRAM |
Storage Technology | Broadcom SAS3008 Controller per Node Supports RAID 0, 1 2 x SAS 12Gb/s Ports or 2 x SATA 6Gb/s Ports 2 x M.2: PCI-E 4.0 x2 or SATA |
Connectivity | 2 x Intel X710-AT2 10G LAN 1 x Realtek RTL8211F GbE Management Port |
Expansion | 2 x PCI-E 5.0 x16 slot (Half Height, Half Length) |

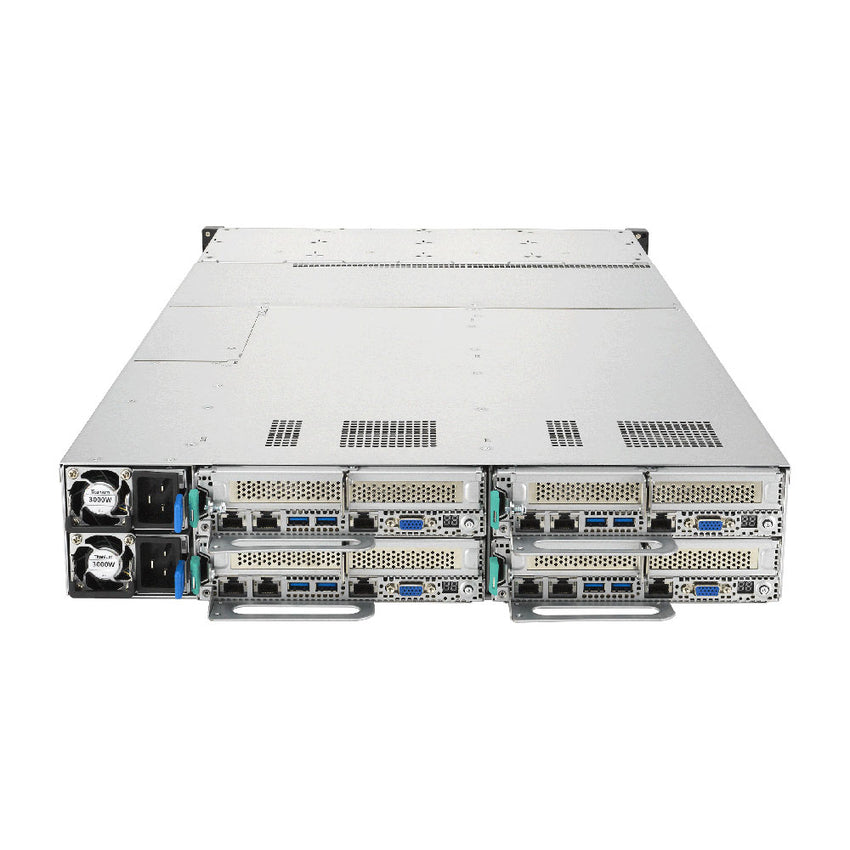

Rear I/O | Per Node: 2 x RJ45 10G LAN 2 x USB 3.0 1 x RJ45 Management LAN 1 x VGA 1 x Q-Code/Port 80 LED 1 x Power Switch with LED |

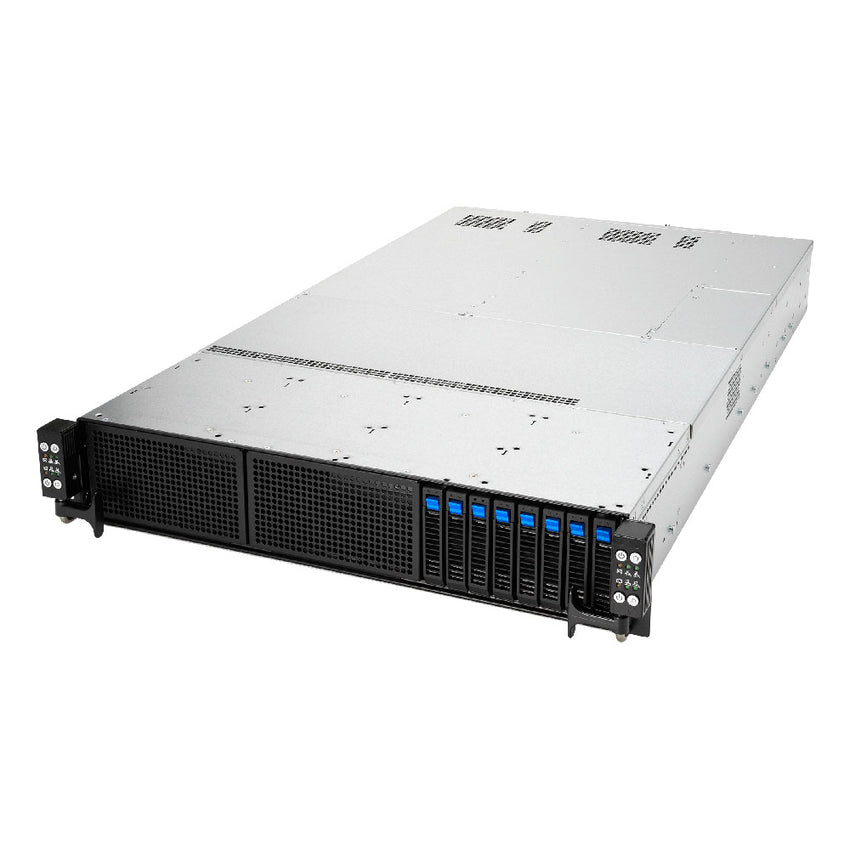

Front Panel I/O | Per Node: 1 x Power Switch with LED 1 x Location Switch with LED 1 x Message LED 2 x LAN LED |
Drive Support | 8 x 2.5" NVMe/SAS/SATA Hotswap Bays 2 x M.2 22110/2280 slot (PCI-E 4.0 x2 or SATA) |
Power Supply | 1+1 Redundant 3000W 80 Plus Titanium Power Supply Rating: 220-240Vac, 15.5A (x2), 50-60Hz, Class I |
Case Dimensions | 2U Form Factor 800 x 444 x 88mm 31.5" x 17.48" x 3.46" (in inches) |
Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Non-operating Humidty: 20% to 90% (non-condensing) |
Warranty | 1 Year Manufacturer's Limited Warranty |
