Manufacturer | ASUS |
Product ID | RS300-E10-PS4 |
CPU |
Supports Intel Xeon E-2200 Processors Supports Intel Xeon E-2100 Processors Supports Intel 8th/9th Gen Core i3/Pentium/Celeron Processors Supports up to 95W TDP |
Chipset | Intel C242 |
Memory |
4 x DDR4 DIMM slots Maximum 128GB Capacity Support ECC or Non-ECC UDIMM 2666/2400 MHz Dual Channel |
Video | Aspeed AST2500 with 32MB VRAM |
Storage Technology |
6 x SATA3 6Gb/s Connectors (4x from Mini-SAS HD) 2 x M.2 (SATA or PCi-E, Gray SATA port disabled with M.2 in use) Intel Rapid Storage Technology Enterprise (RSTe) Supports Software RAID 0, 1, 5, 10 |
Connectivity |
4 x Intel I210-AT GbE LAN with teaming support 1 x Management LAN Port |
Expansion Slots |
1 x Slim-Type Optical Drive Bay 1 x PCI-E 3.0 x16 (x8 link) 1 x PCI-E 3.0 x8( x8 link) |

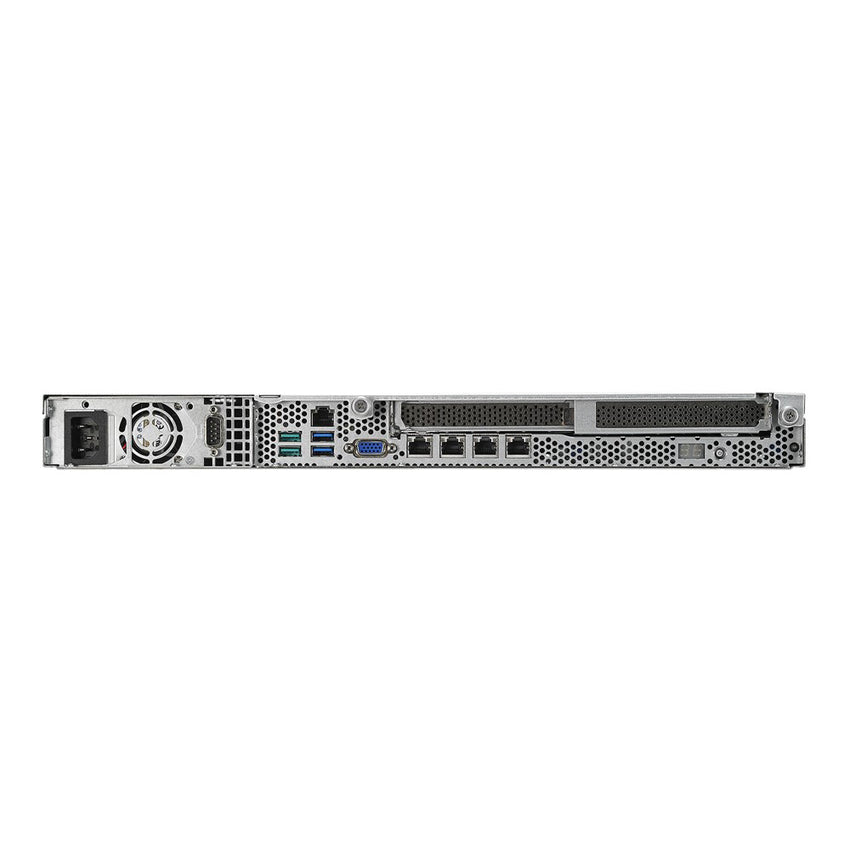

Rear Panel I/O |
1 x Serial Port 2 x USB 3.0 1 x RJ45 Management Port 2 x USB 3.1 Ports 1 x VGA 4 x RJ45 GbE LAN 1 x Q-Code/Port 80 LED 1 x Power Switch |

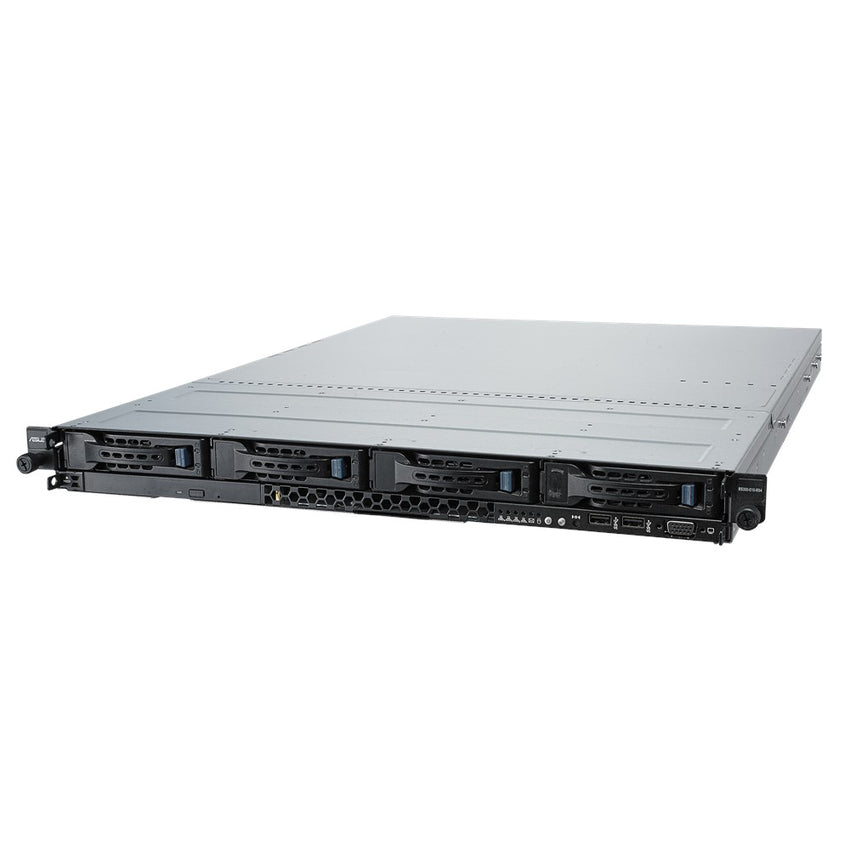

Front Panel I/O |
6 x Status LED (HDD, Message, LAN) 1 x Power Switch with LED 1 x Reset Switch 1 x Location Switch with LED 2 x USB 2.0 1 x VGA |
Drive Support |
4 x 3.5" Hot Swap Drive Bays 2 x 2.5" Internal Drive Bays 2 x M.2 2242/2260/2280/22110 slots (SATA or PCI-E) |
Cooling | 4 x 40x56mm Cooling Fans |
Power Supply |
400W 80 PLUS Gold Power Supply 100-200Vac, 6-3.3A, 60-50Hz, Class 1 |
Case Dimensions |
1U Rackmount 615 x 444 x 44mm 24.21" x 17.48" x 1.73" (in inches) Net Weight: 11.04 kg, 24.3 lbs Gross Weight: 17.16 kg, 37.8 lbs |
Environmental |
Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Non-operating Humidty: 20% to 95% (non-condensing) |
Compliance |
BSMI, CE, RCM, FCC(Class A) |
Warranty | 1-Year Warranty on Parts and Labor |
