Manufacturer	InWin
Product ID	RJ424-07S-CR550
Model Name	IW-RJ424-07
Storage Technology	SATA3 6Gb/s or SAS 12Gbps
Expander	Downlink: Mini SAS HD (SFF-8644) Uplink: 2 x Mini SAS HD (SFF-8644)
Expansion Slots	1 x Optional Expander Backplane

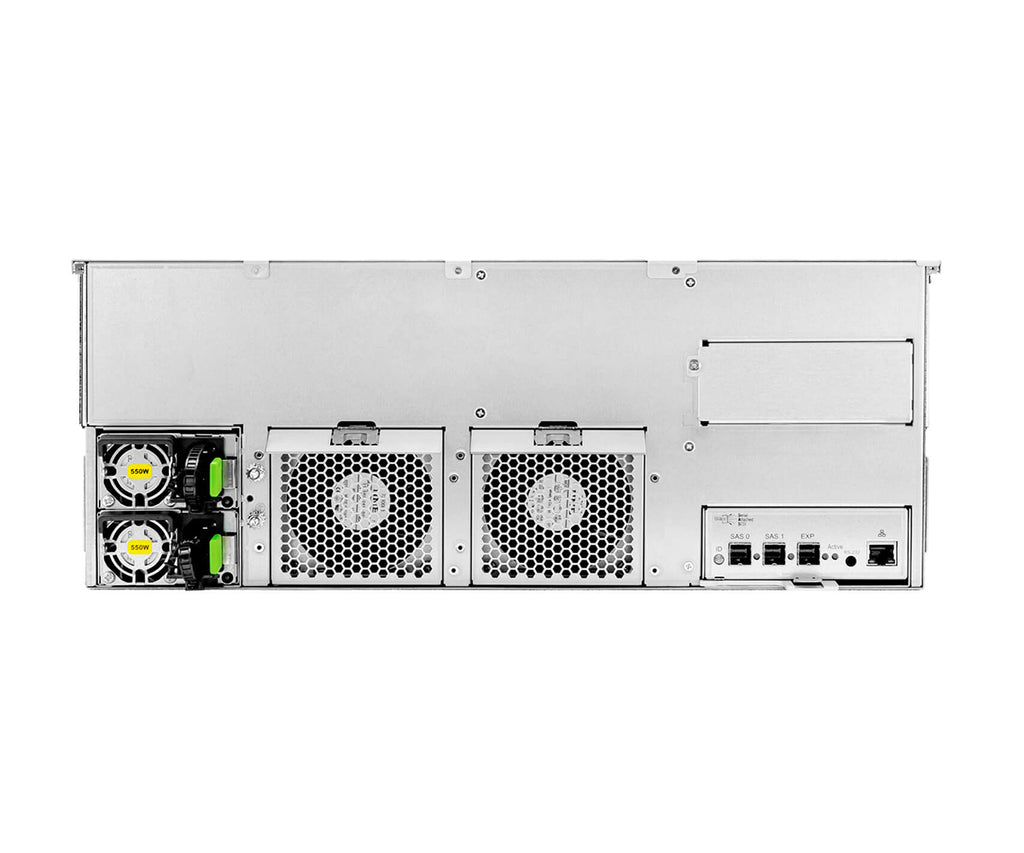

Rear Panel I/O	1 x ID Button 2 x Mini SAS HD (SFF-8644) Uplink 1 x Mini SAS HD (SFF-8644) Downlink 2 x Expander Status LED 1 x 3.5mm RS232 port (Includes 3.5mm to DB9 cable) 1 x RJ45 GbE LAN for Remote Management
Front Panel I/O	1 x Power Button with LED 1 x Mute Button 1 x ID Button with LED 1 x System Fail LED
Drive Support	24 x 2.5"/3.5" SATA/SAS Drive Bays
Power Supply	550W 80-PLUS Platinum CRPS
Cooling	4 x 80x38mm 5500 RPM Hotswap Fans
Case Dimensions	532 x 449.5 x 174.2mm 20.94" x 17.7" x 6.86" (in inches)
Mounting	4U Rackmount Includes Fixed Rails Optional 30" Tool-less, Ball-bearing Slide Rails
Environmental	Operating Temperature: 0°C to 35°C (32°F to 95°F)
Warranty	1-Year Warranty on Parts and Labor
