| Product ID | NAS-EPM-062I4L-8C |
| CPU | Intel Xeon D-1541 Processor 8 Cores / 16 Threads 2.1 - 2.7 GHz 45W TDP, 14nm, 12MB Cache |
| Chipset | SoC |
| Memory |
Includes 32GB DDR4 ECC UDIMM Memory 4 x 288-pin DDR4 DIMM Supports up to 128GB DDR4 ECC RDIMM Supports up to 64GB DDR4 ECC/non-ECC UDIMM 2400/2133/1866/1600MHz @ 1.2V DIMM Sizes: 32GB, 16GB, 8GB, 4GB Error Detection: single-bit errors; double-bit errors w/ ECC memory |
| Video | Aspeed AST2400 with BMC |
| Storage Technology | 6 x SATA3 6Gb/s Ports 1 x M.2 Slots (SATA or PCI-E 3.0 x4) Note: M.2 SATA and SATA0 (mux) SATA0 also supports pin-8 power with SATA DOM |
| Connectivity | 2 x SoC 10GBase-T LAN 2 x Intel i350-AM2 GbE LAN 1 x Realtek RTL8201N PHY Dedicated IPMI |
| Expansion | 1 x PCI-E 3.0 x16 slot (low profile) |

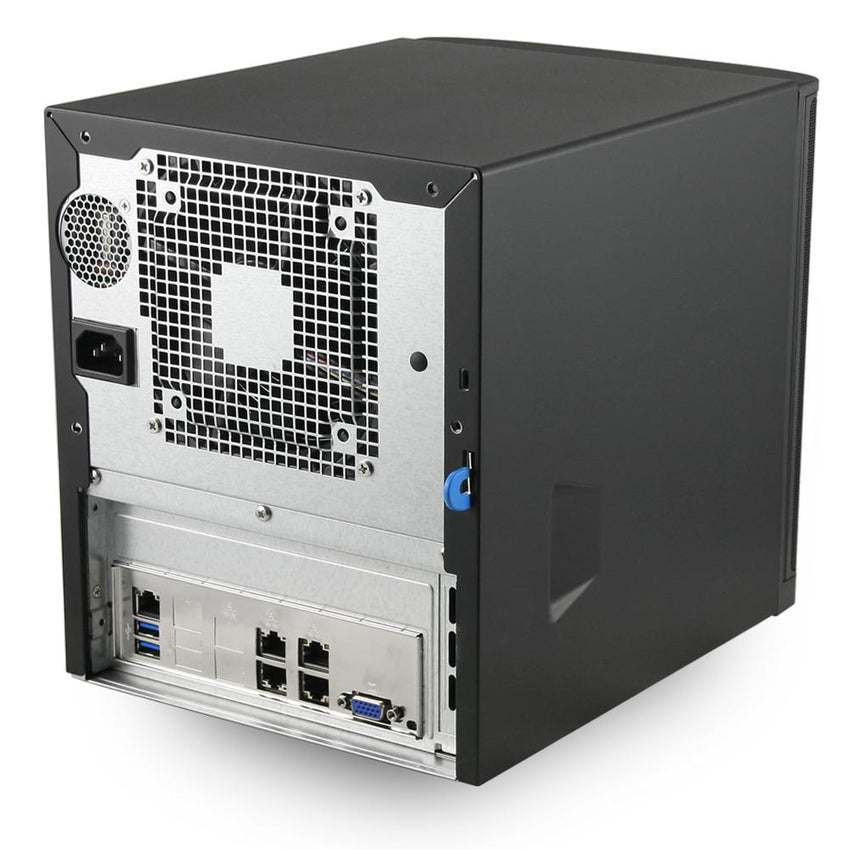

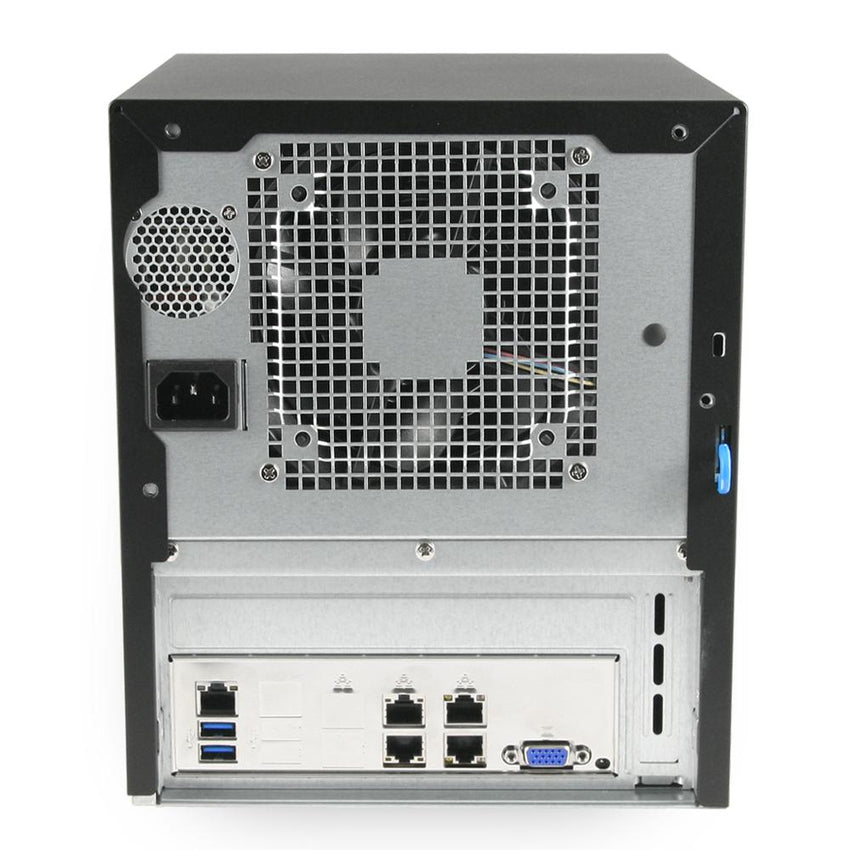

| Rear I/O | 1 x IPMI RJ45 2 x USB 3.0 2 x GbE RJ45 2 x 10GBase-T RJ45 1 x VGA |
| Front Panel I/O | 1 x Power LED 1 x Hard Drive activity LED 2 x Network activity LED 1 x System LED 1 x Reset Button 1 x Power Switch 2 x USB 2.0 |
| Drive Support |

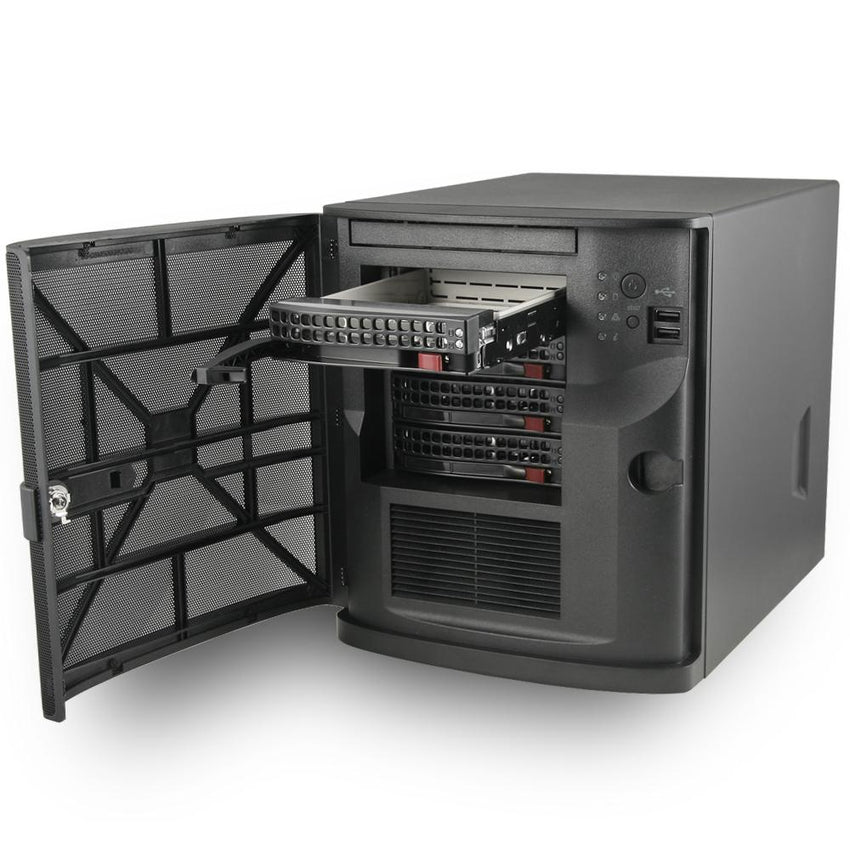

Includes 1 x 128GB SATA M.2 SSD 4 x Hot-swappable 3.5" SATA 2 x Fixed 2.5" SATA 1 x M.2 (PCIe or SATA) Note: NVMe M.2 Drive Required to use all 6 SATA interfaces |
| Power Supply | 250W 80 PLUS Bronze AC-DC power supply AC Voltage: 100 ~ 240V, 50-60Hz, 5 Amp Max |
| Cooling | 120mm x 120mm Case Fan |
| OS Software | FreeNAS |
| Case Dimensions | 240mm x 210mm x 279mm 9.45" x 8.27" x 11" (in inches) |
| Environmental | Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -20°C to 60°C (-4°F to 140°F) Operating Humidity: 10% to 85% (non-condensing) Non-operating Temperature: 10% to 95% (non-condensing) |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: NAS-EPM-062I4L-8C
