| Product ID | NAS-EPM-062I4L-4C |
| CPU | Intel Atom C3558 Processor 4 Cores / 4 Threads 2.2 GHz 16W TDP, 14nm, 8MB Cache |
| Chipset | SoC |
| Memory |
Includes 32GB DDR4 ECC UDIMM Memory 4 x 288-pin DDR4 DIMM Supports up to 256GB DDR4 ECC RDIMM Supports up to 64GB DDR4 ECC/non-ECC UDIMM 2400/2133/1866/1600MHz @ 1.2V (Operating Speed 2133MHz) DIMM Sizes: 64GB, 32GB, 16GB, 8GB, 4GB Error Detection: single-bit errors; double-bit errors w/ ECC memory |
| Video | Aspeed AST2400 BMC |
| Storage Technology | 8 x SATA3 6Gb/s Ports 1 x M.2 Slots (SATA or PCI-E 3.0 x2) Note: Total combined PCI-E lanes and SATA Ports up to 8 |
| Connectivity | 4 x Intel C3000 SoC GbE LAN 1 x Realtek RTL8211F Dedicated IPMI |
| Expansion | 1 x PCI-E 3.0 x4 slot (low profile) Note: Total combined PCI-E lanes and SATA Ports up to 8 |

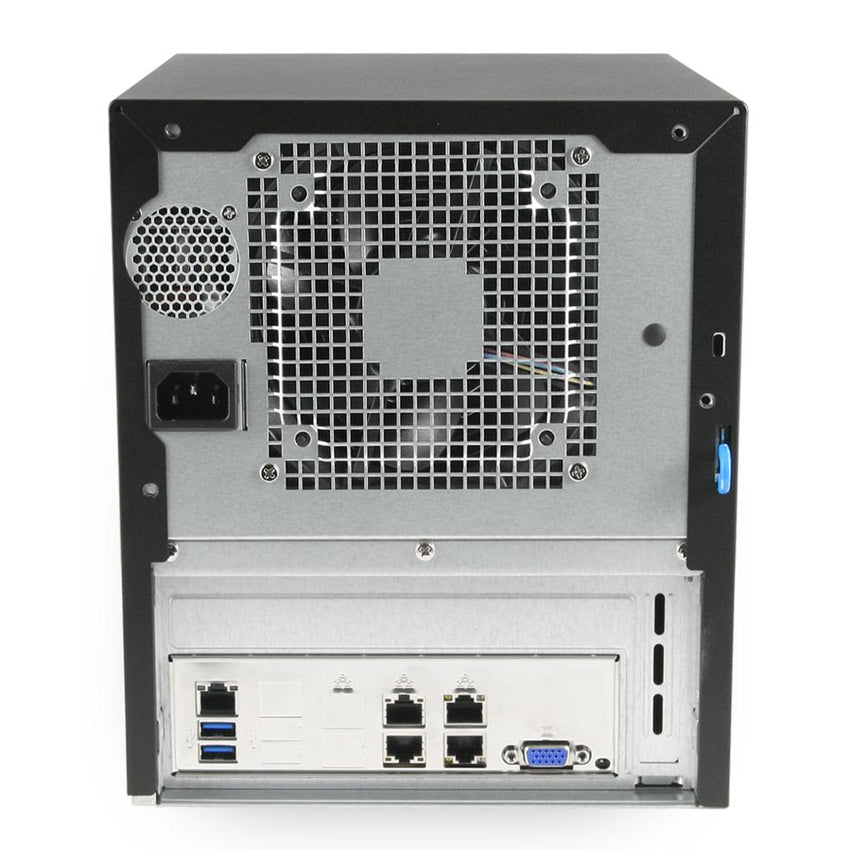

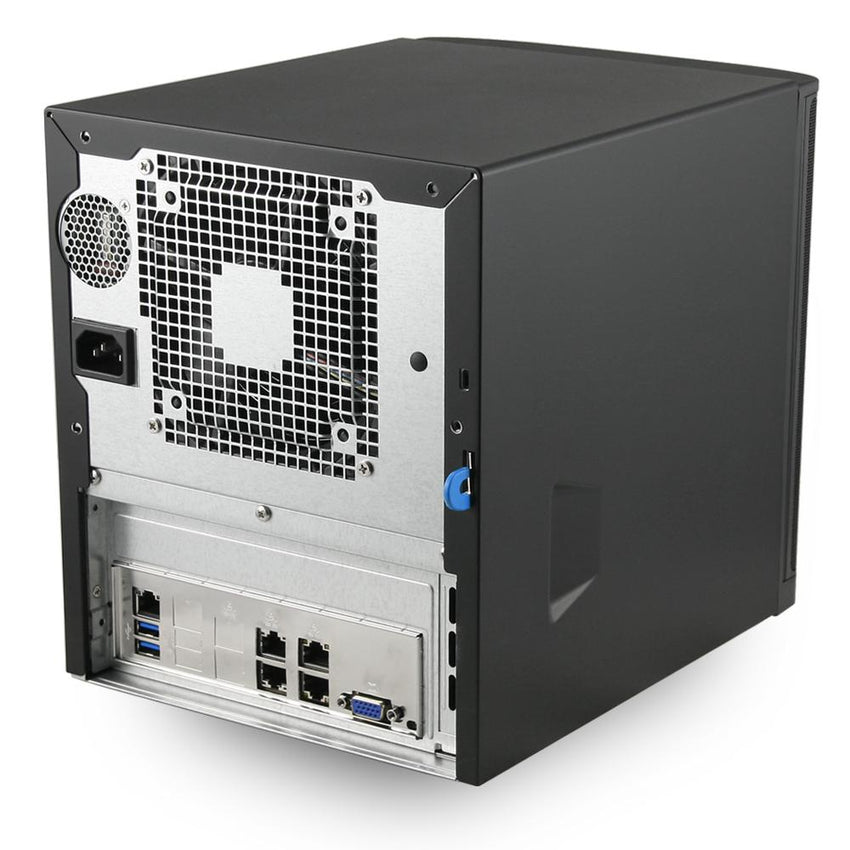

| Rear I/O | 3 x Status LEDs (Power, HDD, NIC) 1 x RJ45 Dedicated IPMI 2 x USB 2.0 4 x RJ45 GbE LAN 1 x VGA |
| Front Panel I/O | 1 x Power LED 1 x Hard Drive activity LED 2 x Network activity LED 1 x System LED 1 x Reset Button 1 x Power Switch 2 x USB 2.0 |
| Drive Support |

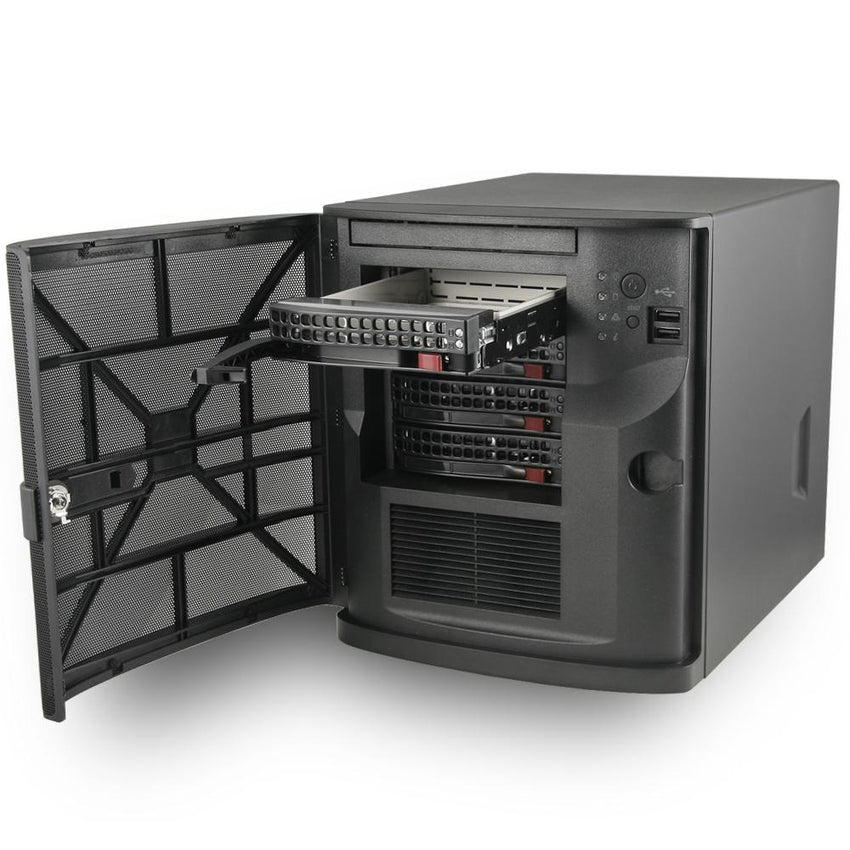

Includes 1 x 128GB SATA M.2 SSD 4 x Hot-swappable 3.5" SATA 2 x Fixed 2.5" SATA 1 x M.2 (PCIe or SATA) Note: NVMe M.2 Drive Required to use all 6 SATA interfaces |
| Power Supply | 250W 80 PLUS Bronze AC-DC power supply AC Voltage: 100 ~ 240V, 50-60Hz, 5 Amp Max |
| Cooling | 120mm x 120mm Case Fan |
| OS Software | FreeNAS |

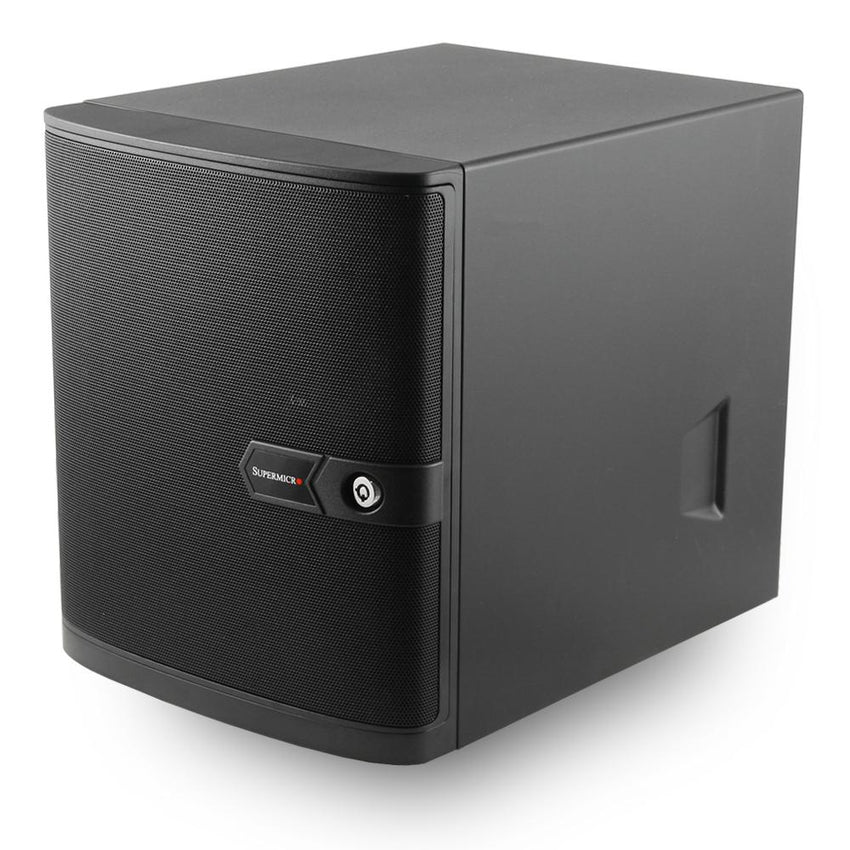

| Case Dimensions | 240mm x 210mm x 279mm 9.45" x 8.27" x 11" (in inches) |
| Environmental | Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -20°C to 60°C (-4°F to 140°F) Operating Humidity: 10% to 85% (non-condensing) Non-operating Temperature: 10% to 95% (non-condensing) |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: NAS-EPM-062I4L-4C
