Product ID	NAS-DP2U-123E
CPU	2 x Intel Xeon E5-2603 v4 Processors 6 Cores / 6 Threads 1.7 GHz 85W TDP, 14nm, 15MB SmartCache
Chipset	Intel C610
Memory	Includes 64GB DDR4 ECC RDIMM Memory 24 x DDR4-2400 Slots DDR4 ECC RDIMM/LRDIMM Supports up to 768GB RDIMM Supports up to 1536GB LRDIMM
Video	AST2400 with 8MB DDR3 Video Memory
Storage Technology	LSI SAS 9207-8i HBA 8 x SATA3/SAS 6Gb/s Ports
Connectivity	2 x Intel I350 Gigabit LAN 1 x GbE Dedicated IPMI
Expansion	2 x PCI-E 3.0 x16 double width FHFL slots 1 x PCI-E 3.0 x8 LP slots 1 x PCI-E 3.0 x8 LP slots (occupdied by HBA) 1 x PCI-E 3.0 x8 OCP LAN mezzanine slot

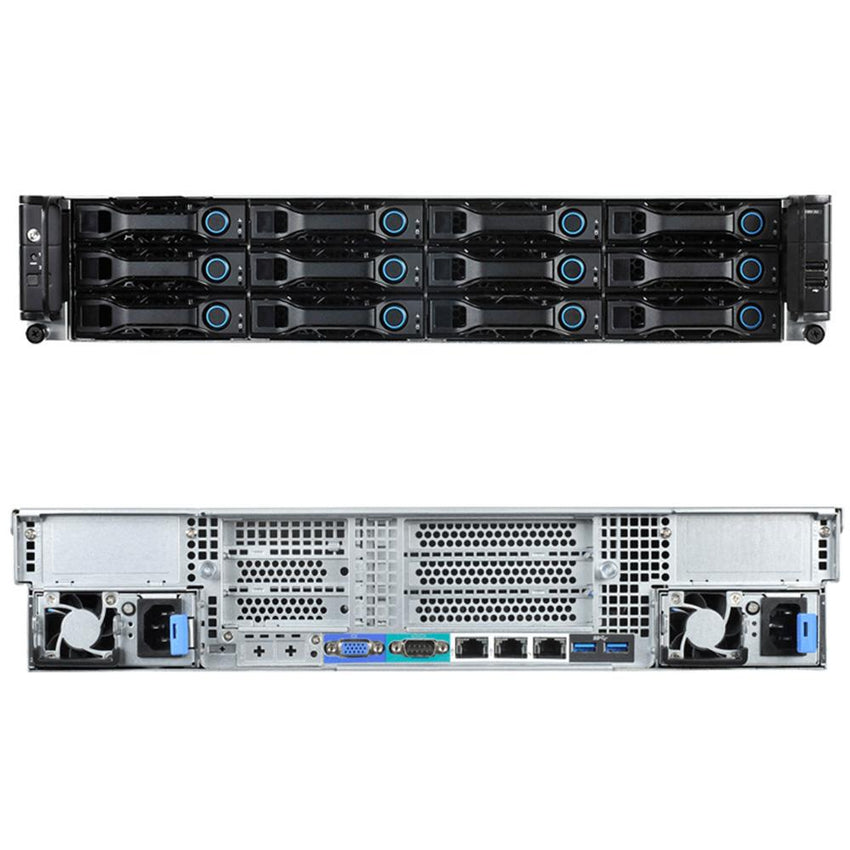

Rear I/O	1 x VGA 1 x RS232 Serial Port 1 x GbE Dedicated IPMI 2 x GbE LAN 2 x USB 3.0
Front Panel I/O	1 x Power Button 1 x Power LED 1 x Reset Button 2 x USB 2.0
Drive Support	Includes 64GB SATADOM Boot Drive 12 x 3.5" Hot Swap Drives
Cooling	5 x Dual Rotor Fans 9+1 Redundant
OS Software	FreeNAS
Power Supply	1200W 80+ Platinum AC Power Supply 100-240V, 50/60Hz, 12A-8A Maximum Output Power: 1200W @ 200-240V +12V: 97.5A, +12Vsb: 2.5A Maximum Output Power: 1023W @ 100-120V +12V: 82.75A, +12Vsb: 2.5A
Case Dimensions	17.24 x 3.44 x 29.33 (in inches) 438.0 x 87.5 x 745.0mm Weight: 54.94 lbs, 24.92 kg
Environmental	Operating Temperature: 5°C - 40°C (41°F - 104°F) Non-operating Temperature: -40°C - 65°C (-40°F - 149°F) Operating Humidity: 20% to 85% RH Non-operating Humidty: 10% to 90% RH
Warranty	1-Year Warranty on Parts and Labor
