Manufacturer | Jetway |
Product ID | HBJC160F699-3758-S |
Model Number | JBC160F699 |
CPU | Intel Atom C3758 Processor 2.20 GHz 8 core / 8 Threads 25W TDP, 14nm, 16MB SmartCache |
Chipset | SoC |
Memory | 4 x 288-pin DDR4-2666 DIMM slots Supports up to 128GB ECC RDIMM Supports up to 64GB ECC UDIMM Supports up to 64GB UDIMM Dual Channel |
Video | Aspeed AST2510 Graphics PCIe VGA/2D Controller VGA Max Resolution: 1920x1200 @ 60Hz Note: VGA requires use of VGA header and cable |
Audio | N/A |
Storage Technology | SATA3 6Gb/s M.2: SATA Only |
Connectivity | 2 x Intel I210-AT GbE Ports 4 x Intel SFP+ 10GbE Ports Supports Intel QuickAssist Technology |
Expansion Slots | 1 x PCI-E 3.0 x16 slot (x8 Bandwidth) Supports Full Height |

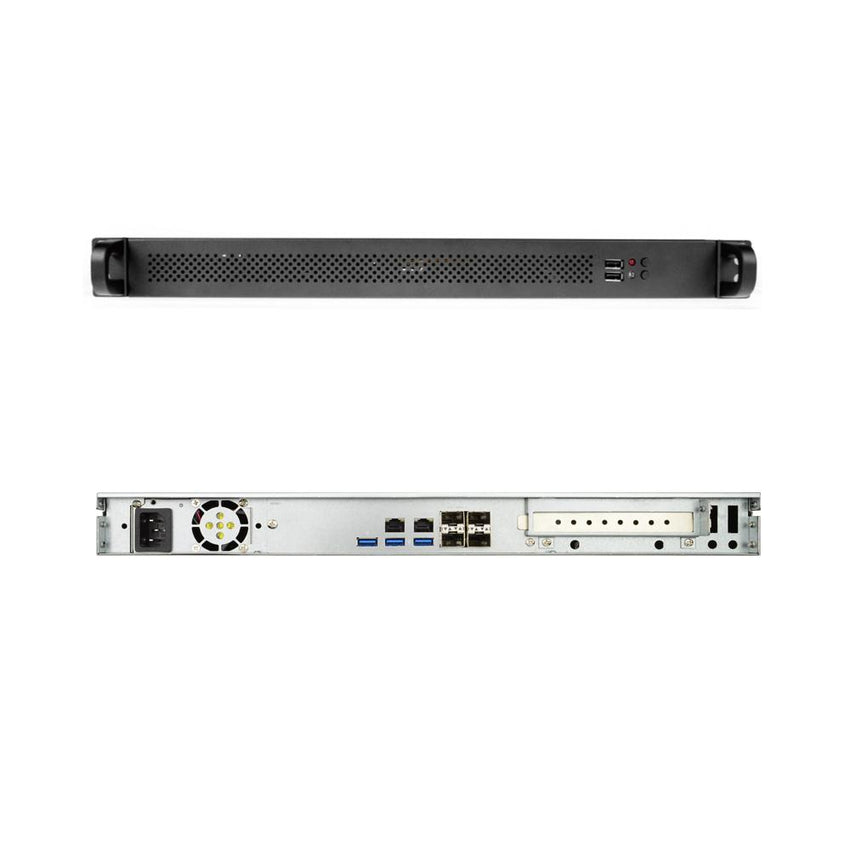

Front Panel I/O | 2 x USB 2.0 2 x Status LED (Power, HDD) 1 x Power Button 1 x Reset Button |

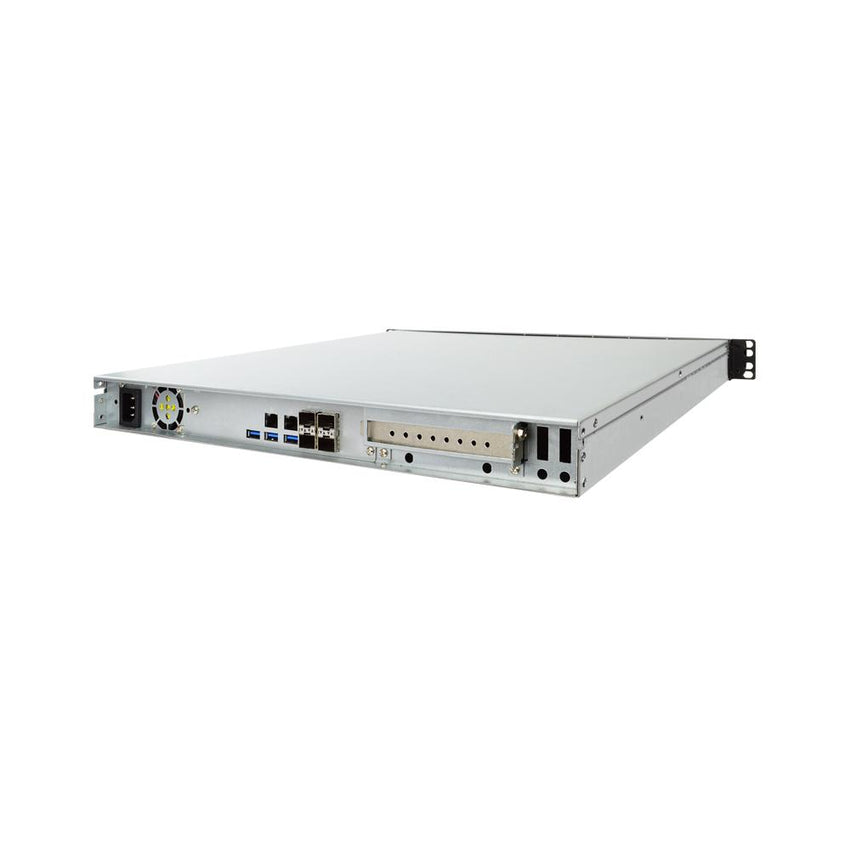

Rear Panel I/O | 3 x USB 3.0 2 x RJ45 GbE LAN 4 x SFP+ Ports |
Drive Support | 4 x 2.5" or 3.5" Drive Bays 1 x M.2 (M-Key, 2242/2260/2280, SATA only) |
Power Supply | 300W Flex Power Supply AC Input 100-240V, 50-60Hz, 6.3A Max +5V: 16A Max +12V: 18A Max -12V: 0.5A Max +3.3V: 14A Max +5Vsb: 2.5A Max |
Fan Support | Includes 4 x 40x20mm 7000RPM 8CFM Case Fans |

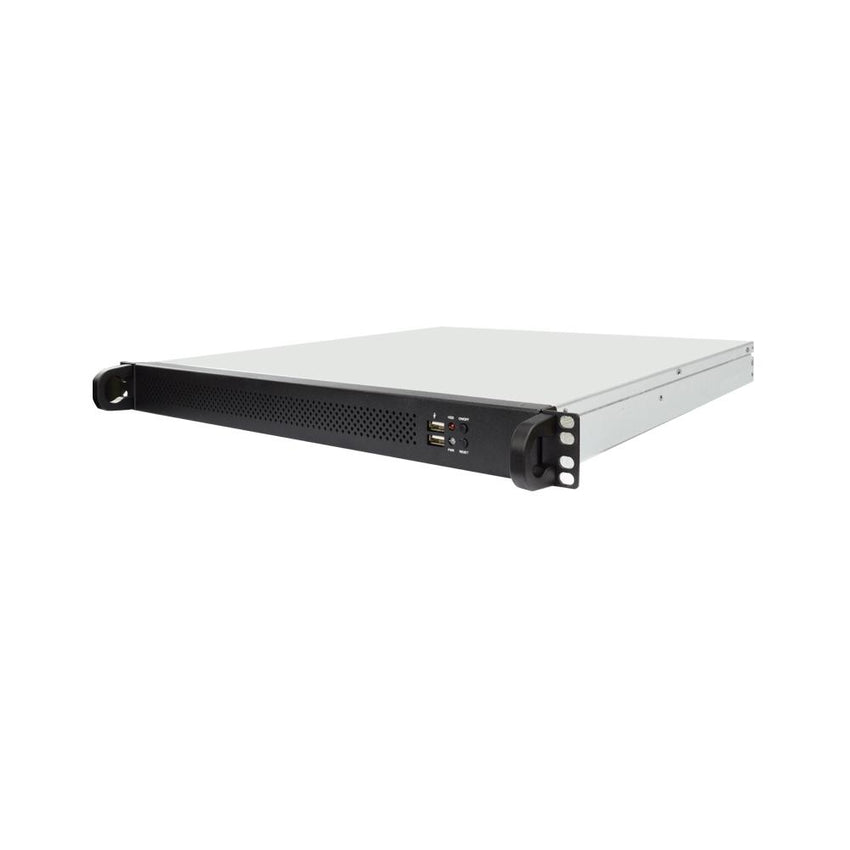

Case Dimensions | 1U Rackmount Form Factor 430 x 450 x 44mm 16.9" x 17.7" x 1.7" (in inches) |
Environmental | Operating Temperature: 0°C - 50°C Storage Temperature: -10°C - 70°C |
Compliance | CE, FCC, LVD, RoHS, REACH, EuP/ErP Ready |
Warranty | 2-Year Manufacturer's Limited Warranty |
