Manufacturer	ASUS
Product ID	ESC4000A-E12-26WGP

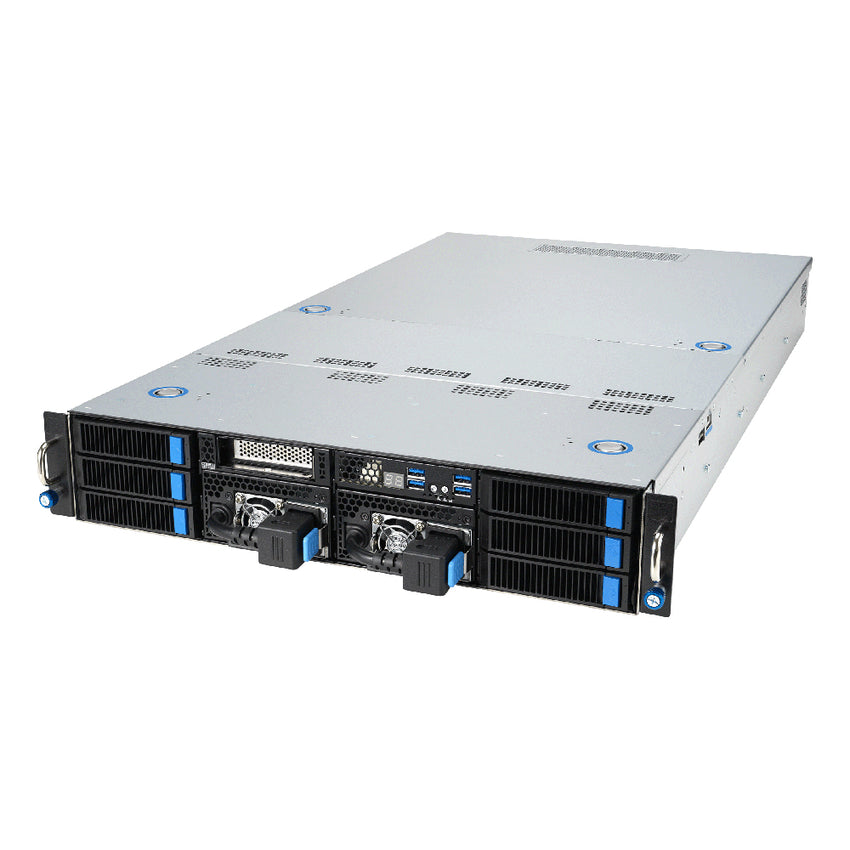

Model Number	ESC4000A-E12
CPU	Supports AMD EPYC 9004 Series Processor Socket SP5 Up to 400W TDP
Chipset	SoC
Memory	12 x DDR5 DIMM slots Maximum 3 TB Capacity 4800/4400 MHz Supports RDIMM/RDIMM 3DS
Video	ASPEED AST2600 64MB
Storage Technology	6 x SATA3 Ports 4 x NVMe Ports
Connectivity	2 x Intel I350 GbE LAN 1 x Management Port
Expansion	4 x PCI-E 5.0 x16 slots or 8 x PCI-E 5.0 x16 slots (x8 Link) 1 x PCI-E 5.0 x16 slot (Full Height, Half Length) 1 x PCI-E 5.0 x16 slot (x16/x8 Link, Full Height Half Length) or OCP 3.0 slot 1 x PCI-E 5.0 x8 slot (x0/x8 Link, Low Profile Hal Length)

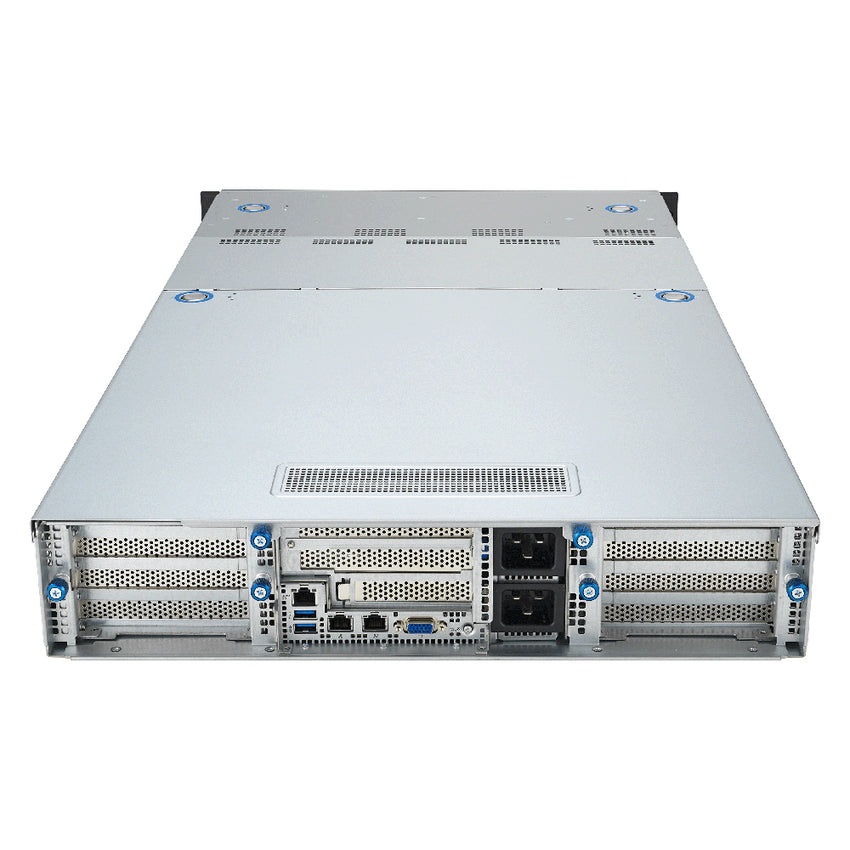

Rear I/O	1 x RJ45 Management Port 2 x USB 3.2 (Gen1) 2 x RJ45 GbE LAN 1 x VGA 2 x Status LED (Location, Message) 1 x Power Button with LED

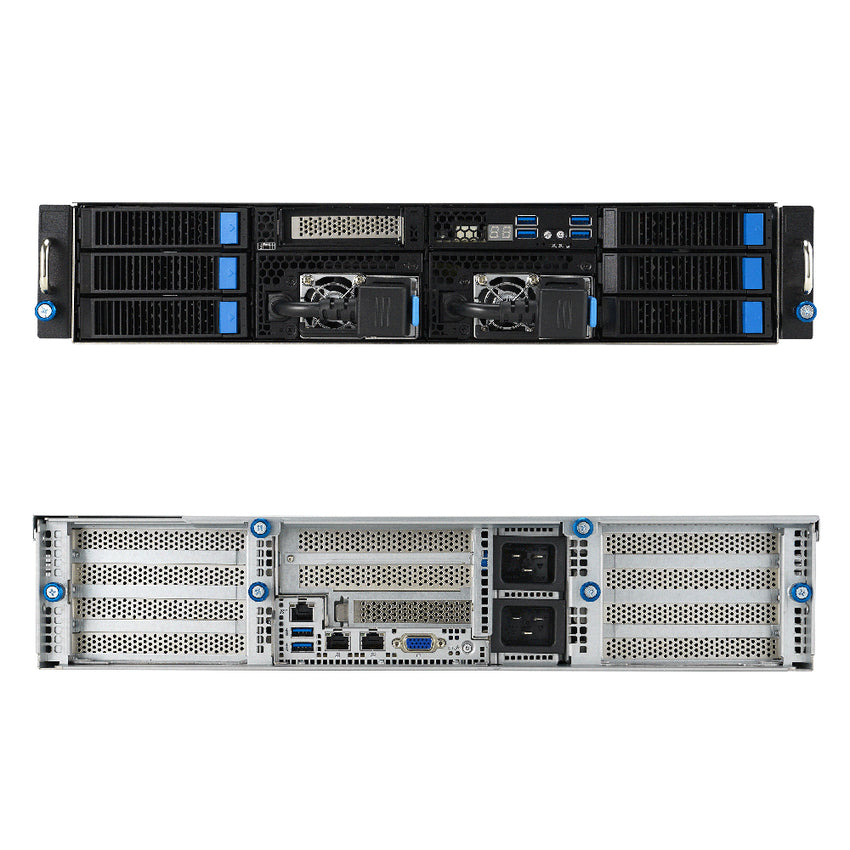

Front Panel I/O	1 x Q-Code/Port 80 LED 4 x USB 3.2 (Gen1) 1 x Power Button with LED 1 x Location Button with LED 1 x Message LED 2 x LAN LED
Drive Support	2 x 2.5" NVMe/SATA Drive Bays 2 x 3.5" NVMe/SATA Drive Bays 2 x 3.5" SATA Drive Bays
Power Supply	1+1 Redundant 2600W 80-PLUS Titanium CRPS-R Power Supply

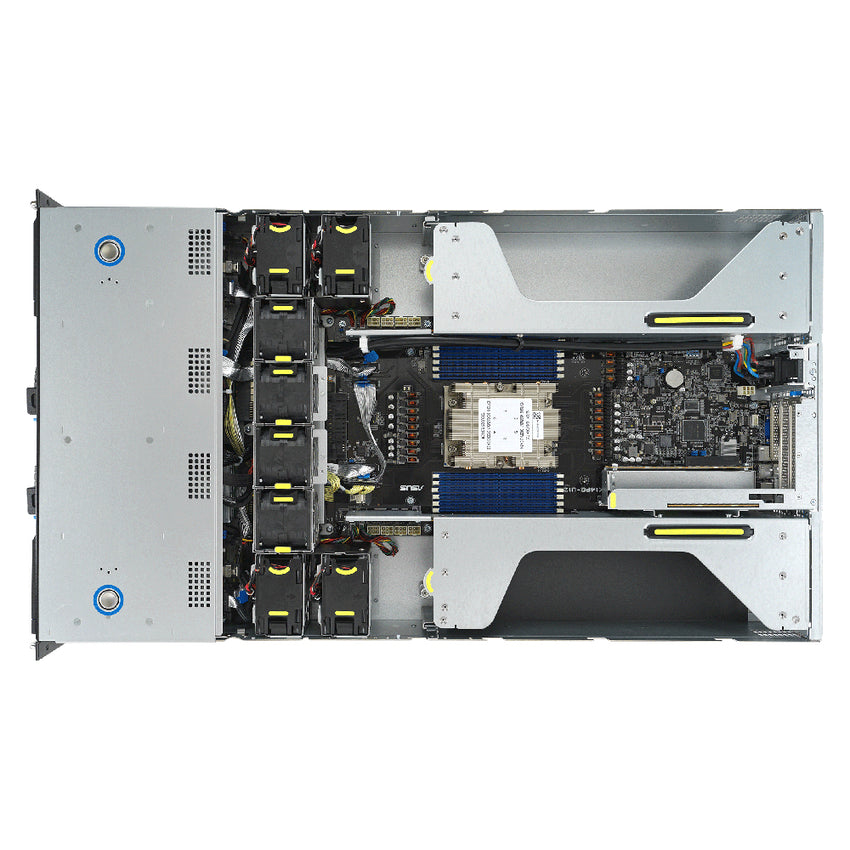

Cooling	8 x Hotswappable Case Fans
Case Dimensions	2U Form Factor 800 x 439.5 x 88.9mm 31.5" x 17.3" x 3.5" (in inches) Net Weight: 24 Kg, 52.9 lbs Gross Weight: 34.8 Kg, 76.7 lbs
Environmental	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Non-operating Humidty: 20% to 90% (non-condensing)
Compliance	BSMI, CE, RCM, FCC(Class A)
Warranty	1 Year Manufacturer's Limited Warranty
