Manufacturer	QCT
Product ID	D51BP-1U
Part Number	1S2BZZZ001C
CPU	Supports Dual Intel Xeon E5-2600 v3 product family Supports Dual Intel Xeon E5-2600 v4 product family Supports Max TDP 135W Socket FCLGA 2011
Chipset	Intel C610
Memory	20 x DDR4-2400 Slots DDR4 ECC RDIMM/LRDIMM Supports up to 640GB RDIMM Supports up to 1280GB LRDIMM
Video	AST2400 with 8MB DDR3 Video Memory
Storage Technology	PCI-E 3.0 x4 Interface Supports NVMe, SAS, and SATA3
Connectivity	2 x Intel I350 Gigabit LAN 1 x GbE Dedicated IPMI
Expansion	1 x PCI-E 3.0 x8 SAS mezzanine slot 1 x PCI-E 3.0 x8 OCP LAN

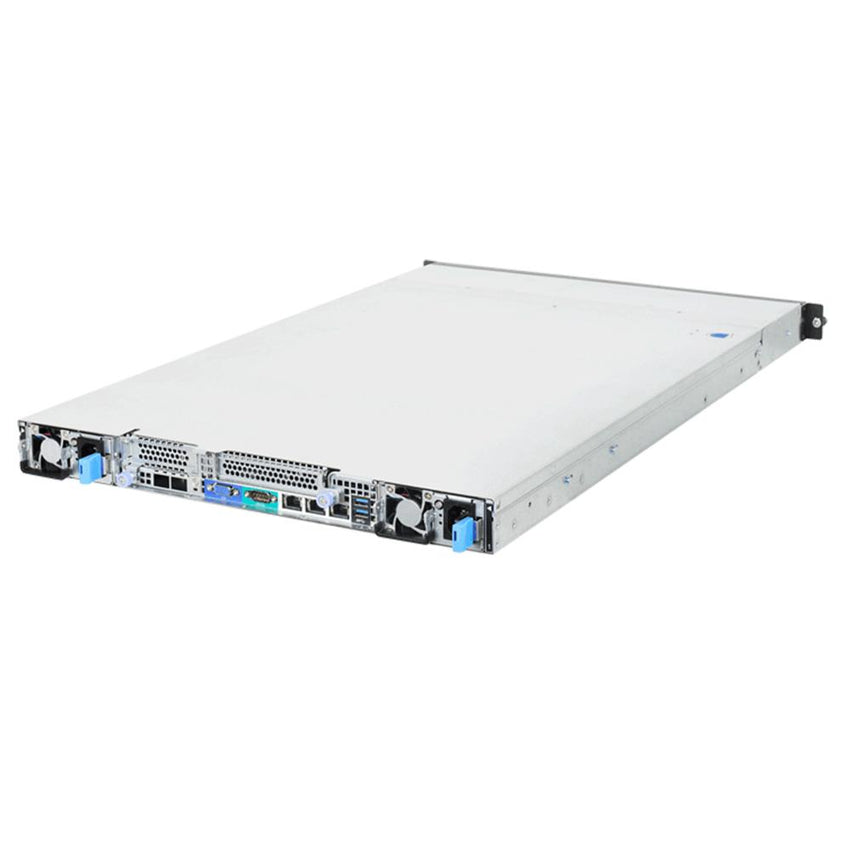

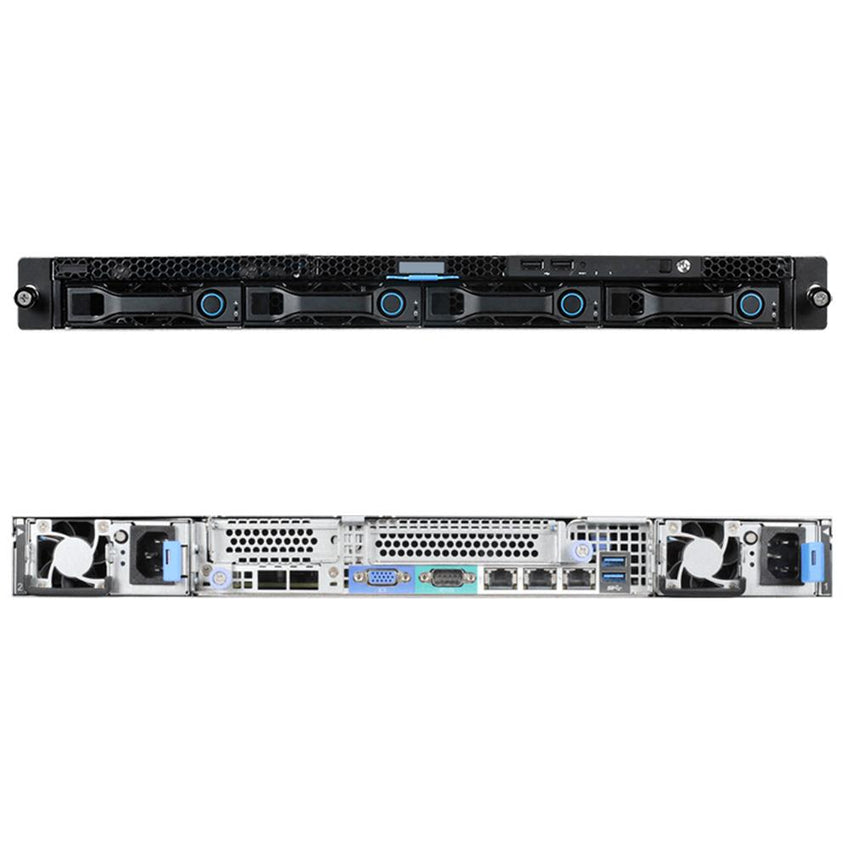

Rear I/O	1 x VGA 1 x RS232 Serial Port 2 x RJ45 GbE LAN 1 x RJ45 GbE Dedicated IPMI 2 x USB 3.0

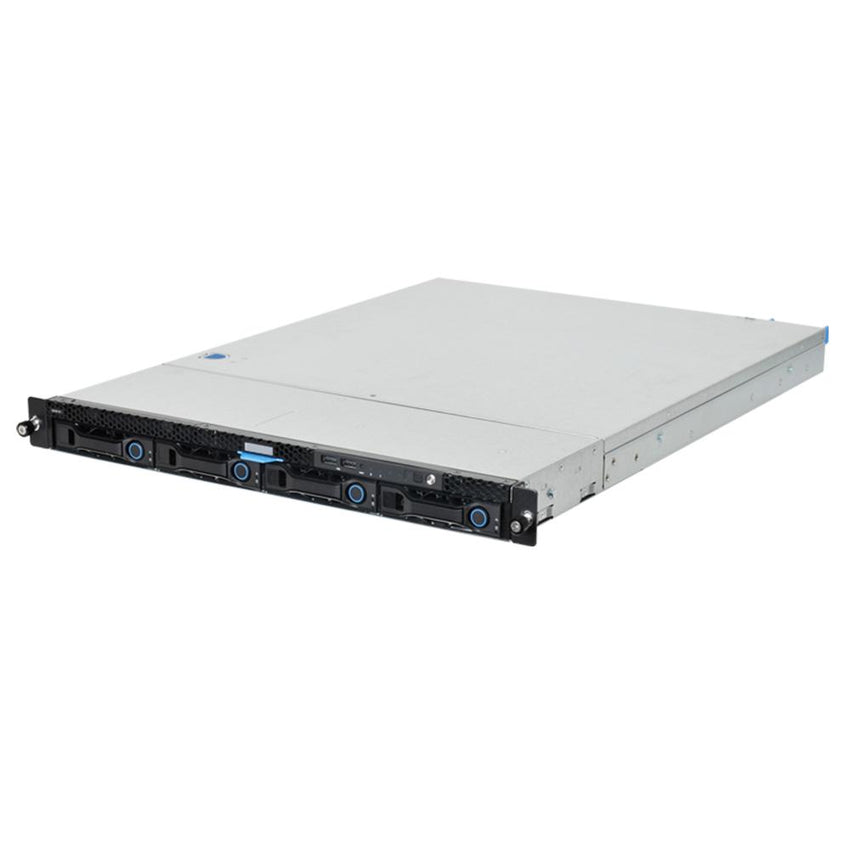

Front Panel I/O	2 x USB 2.0 1 x Reset Button 4 x Status LED 1 x Power Button
Drive Support	4 x 3.5"/2.5" NVMe/SAS/SATA Drives
Cooling	6 x Dual Rotor Fans 11+1 Redundant
Power Supply	470W 80+ Gold AC Power Supply 100-240V, 50/60Hz, 6.5A-3.5A +12V: 36A +12Vsb: 2.5A Optional Redundant Power Supply
Case Dimensions	17.24" x 1.70" x 29.21" (in inches) 438.0 x 43.2 x 742.0mm Weight: 45.88 lbs, 20.81 kg
Environmental	Operating Temperature: 5°C - 40°C (41°F - 104°F) Non-operating Temperature: -40°C - 65°C (-40°F - 149°F) Operating Humidity: 20% to 85% RH Non-operating Humidty: 10% to 90% RH
