| Manufacturer | Tyan |
| Product ID | B8056G68AE12HR |
| Model Name | Transport CX GC68A-B8056 |
| CPU |
Supports AMD EPYC 9004 Series Processor Socket SP5 Max 300W (cTDP) |
| Chipset | SoC |
| Memory |
24 x DDR5 DIMM slots Maximum 3072GB RDIMM/3DS RDIMM Capacity 12 Channels |
| Video | Aspeed AST2600 |
| Storage Technology |
1 x SFF-TA-1016 (MCIO 8x) for 4 x SATA Ports 6 x SFF-TA-1016 (MCIO 8x) for 12 x NVMe Front 2 x M.2 22110/2280 slot (PCI-E 4.0 x4) |
| Connectivity |
1 x Realtek RTL8211F GbE Dedicated IPMI |
| Expansion |
2 x PCI-E 5.0 x16 slots (Full Height, Half Length) 1 x OCP 3.0 Mezzanine slot (PCI-E 5.0 x16) |

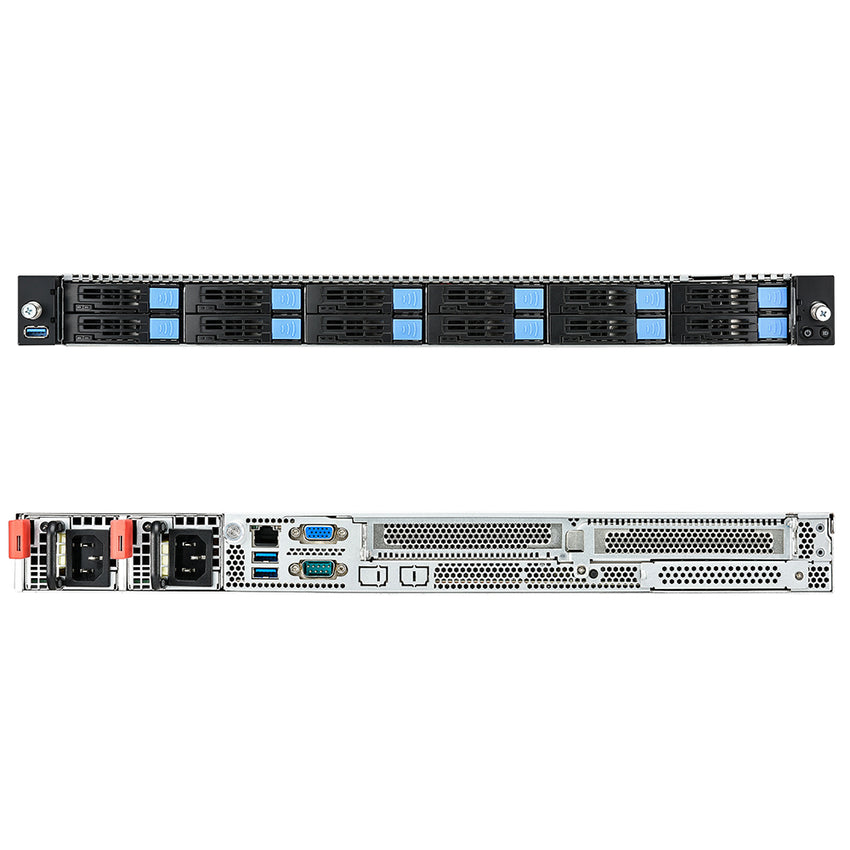

| Rear I/O |
1 x RJ45 Dedicated IPMI 2 x USB 3.2 (Gen1) 1 x VGA 1 x COM |
| Front Panel I/O |
1 x USB 3.2 (Gen1) 1 x Power Button 1 x UID Button |
| Drive Support |
8 x 2.5" NVMe Hotswap Bays 4 x 2.5" NVMe/SATA Hotswap Bays 2 x M.2 22110/2280 slots (PCI-E 5.0 x4) |
| Power Supply |
1+1 850W 80-PLUS Platinum RPSU 100-240Vac, 50/60Hz |
| Cooling |
3 x 40x28mm Case Fans 3 x 40x56mm Case Fan |
| Case Dimensions |
1U Rackmount 26.77" x 17.26" x 1.69" (in inches) 680 x 438.5 x 43mm |
| Environmental |
Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 90% at 35°C (non-condensing) Non-Operating Humidity: 90% at 35°C (non-condensing) |
| Compliance |
FCC (SDoC) Class A CE (DoC) Class A C-Tick VCCI CB/LVD RoHS 6/6 Compliant |
| Warranty | 1 Year Manufacturer's Limited Warranty |
PRODUCT ID: B8056G68AE12HR
