Manufacturer | Tyan |
Product ID | B8036G68AE12HR |

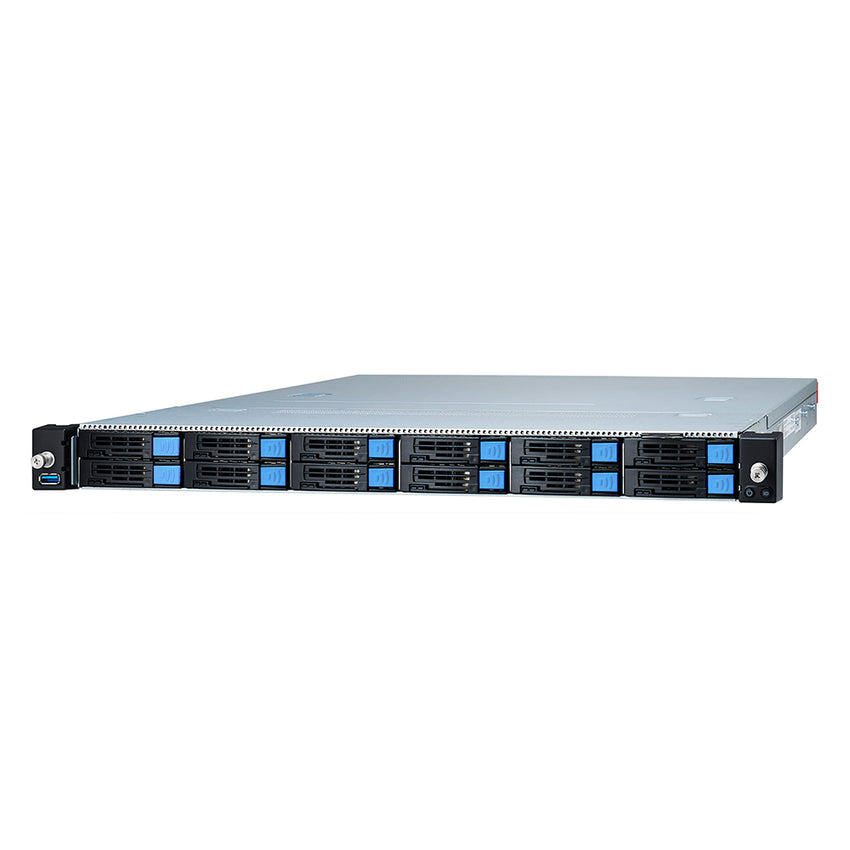

Model Name | Transport CX GC68AB8036 |
CPU | Supports AMD EPYC 7003/7002 Series Processor Socket SP3 Max 240W TDP |
Chipset | SoC |
Memory | 16 x DDR4 DIMM slots Supports up to 2048GB ECC RDIMM Supports up to 4096GB ECC LRDIMM Supports up to 4096GB ECC RDIMM 3DS/LRDIMM 3DS 8 Channel |
Video | Aspeed AST2500 |
Storage Technology | 4 x Marvell 9235 SATA Connectors 2 x M.2: PCI-E 3.0 x4 and SAT 6 x SFF-8654 for 12 NVMe Ports |
Connectivity | 2 x Broadcom BCM5720 GbE LAN 1 x Realtek RTL8211E GbE Dedicated IPMI |
Expansion | 1 x PCI-E 4.0 x16 slot (Full Height, Half Length) 1 x PCI-E 4.0 x16 slot (Half Height, Half Length) 1 x OCP 2.0 Mezzanine Slot |

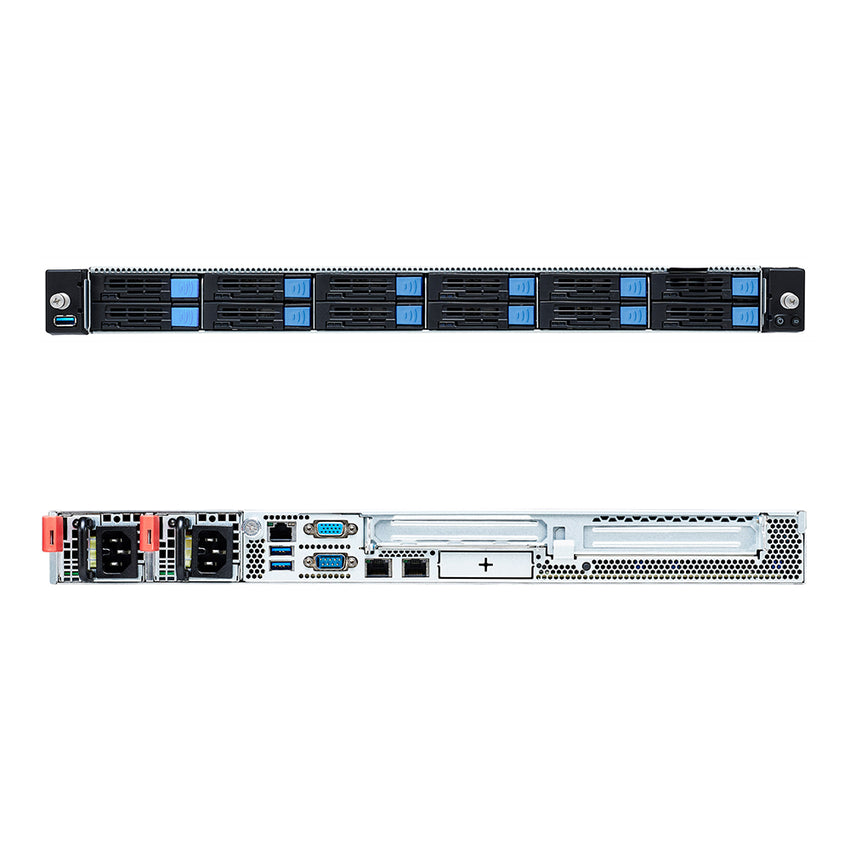

Rear I/O | 1 x RJ45 GbE Dedicated IPMI 2 x USB 3.0 1 x VGA 1 x COM 2 x RJ45 GbE LAN |
Front Panel I/O | 1 x USB 3.0 1 x Power Button with LED 1 x ID Button |
Drive Support | 8 x 2.5" NVMe Hotswap Bays 4 x 2.5" NVMe/SATA Hotswap Bays |
Power Supply | 1+1 850W 80-PLUS Platinum RPSU 100-240Vac, 50/60Hz |
Cooling | 5 x 40x28mm Case Fans 1 x 40x56mm Case Fan |
Case Dimensions | 1U Rackmount 26.77" x 17.26" x 1.69" (in inches) 680 x 438.5 x 43mm |
Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 90% at 35°C (non-condensing) Non-Operating Humidity: 90% at 35°C (non-condensing) |
Compliance | FCC (SDoC) Class A CE (DoC) Class A VCCI RCM CB/LVD RoHS 6/6 Compliant |
Warranty | 1 Year Manufacturer's Limited Warranty |
