Product ID	GA88B8021 / B8021G88V2HR-2T-N
CPU	Supports AMD EPYC 7000 Series Processor AMD Socket SP3 Max 180W TDP
Memory	16 x DDR4-2666 DIMM Slots DDR4 ECC RDIMM/LRDIMM/LRDIMM 3DS Up to 1,024GB LRDIMM Up to 2,048GB RDIMM/LRDIMM 3DS 8 Channels, 1.2V
Video	Aspeed AST2500 1 x VGA (1920x1200)
Storage Technology	SAS: 12Gb/s SATA: 6Gb/s NVMe: PCI-E Only
Connectivity	2 x Intel X550-AT2 10GbE LAN 1 x Realtek RTL8211E Dedicated IPMI
Expansion	4 x PCI-E Gen3 x16 slots (Full height, 10.5" length, Double-width) 1 x PCI-E Gen3 x16 slot (Full height, Half Length, Single-width)

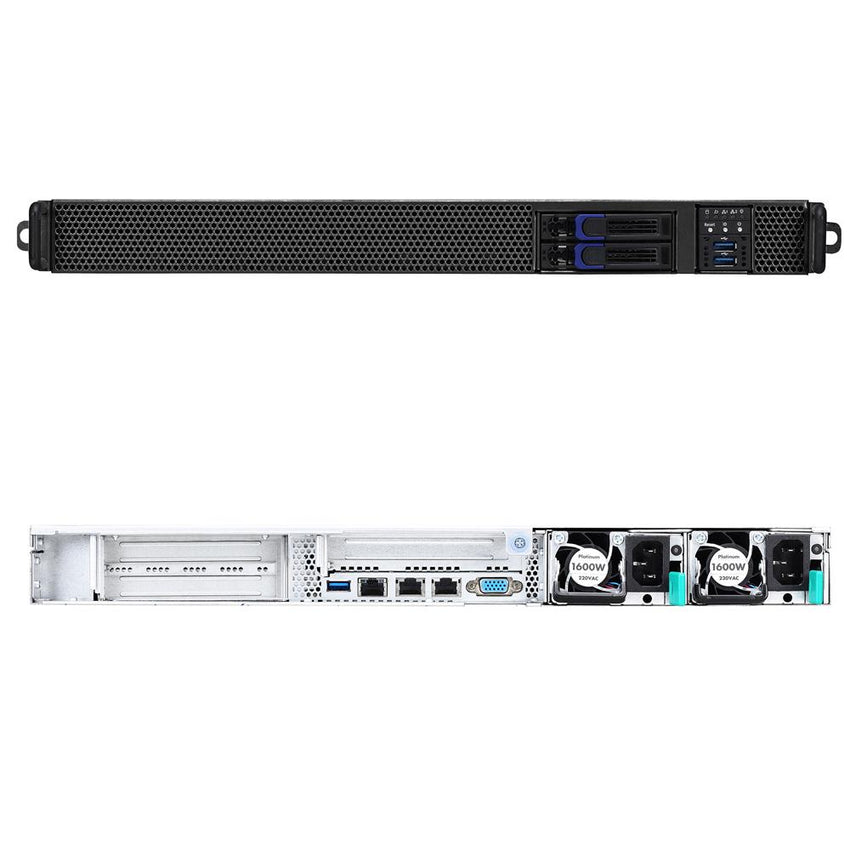

Rear I/O	1 x USB 3.0 1 x RJ45 Dedicated IPMI 2 x RJ45 10GbE LAN 1 x VGA
Front Panel I/O	5 x Status LEDs (UID, BMC event, HDD, LAN, Power) 1 x Reset Button 1 x UID Button 2 x USB 3.0
Drive Support	2 x 2.5" Hotswappable SAS/SATA Drives (Front) 2 x M.2 NVMe Only (22110/2280)
Power Supply	1600W 1+1 Redundant 80+ Platinum Power Supply AC 100-127V/12A AC 20-240V/9.8A 47-63 Hz
Cooling	10 x 4 CM Fans
Case Dimensions	1U Rackmount 885 x 438 x 43.5mm 34.84" x 17.24" x 1.71" (in inches) Net Weight: 13.5 kg, 30 lbs Gross Weight: 26.5 kg, 58.5 lbs
Environmental	Operating Temperature: 10°C - 35°C (50°F - 95°F) Non-operating Temperature: -40°C - 70°C (-40°F - 158°F) In/Non-operating Humidity: 90%, non-condensing at 35°C
Compliance	RoHS 6/6 RCM Class A FCC (SDoC) Class A CE (DoC) Class A VCCI Class A CB/LVD
Warranty	1-year warranty on parts and labor
