Product ID	TN200B7108-X4S / B7108T200X4-220PE6HR

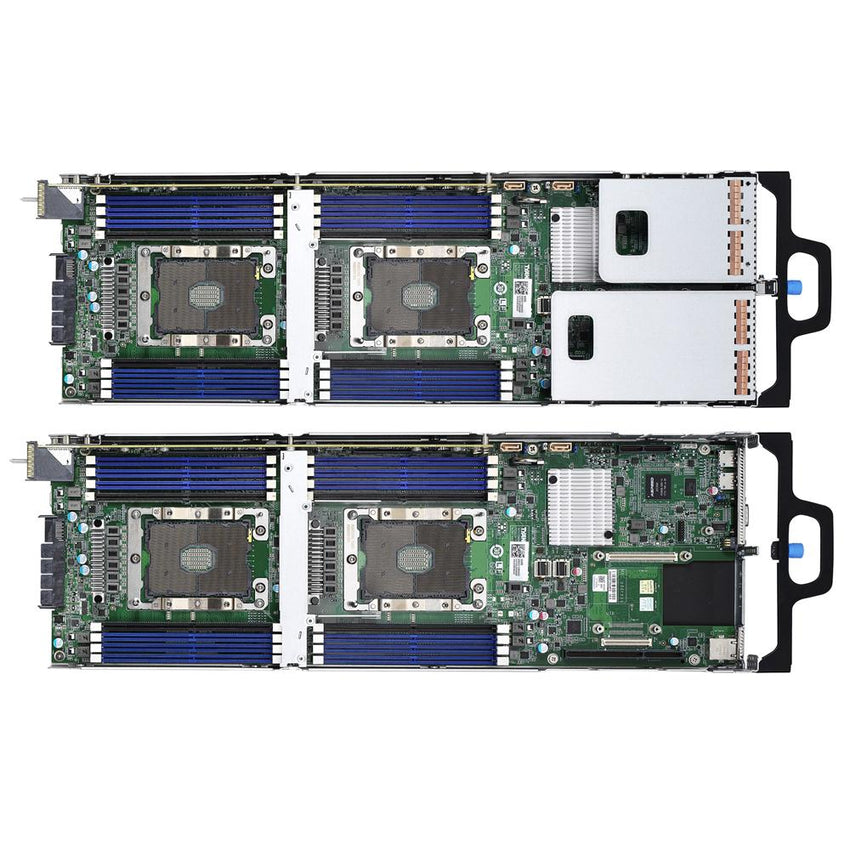

CPU	Supports Dual Intel Xeon Scalable Processor per blade Socket LGA3647 Max 165W TDP
Chipset	Intel C621
Memory	8 x DDR4 DIMM Slots per CPU, 16 total per blade DDR4 ECC RDIMM/LRDIMM/LRDIMM 3DS Up to 512GB RDIMM Up to 1,024GB LRDIMM Up to 2,048GB RDIMM/LRDIMM 3DS 6 Channels per CPU, 1.2V
Video	Aspeed AST2500 Resolution up to 1920x1200
Storage Technology	HDD Interface: NVMe M.2: PCI-E Only
Connectivity	1 x Realtek RTL8211E PHY per blade
Expansion	Per Blade: 1 x PCI-E Gen3 x16 slots (Half Height, Half length) 1 x PCI-E Gen3 x8 slot (Half height, Half length) 1 x PCI-E Gen3 x16 OCP 2.0 slot (conn.A+conn.B+conn.C)
Rear I/O	Per Blade: 1 x RJ45 1 x Serial COM 2 x USB 3.0

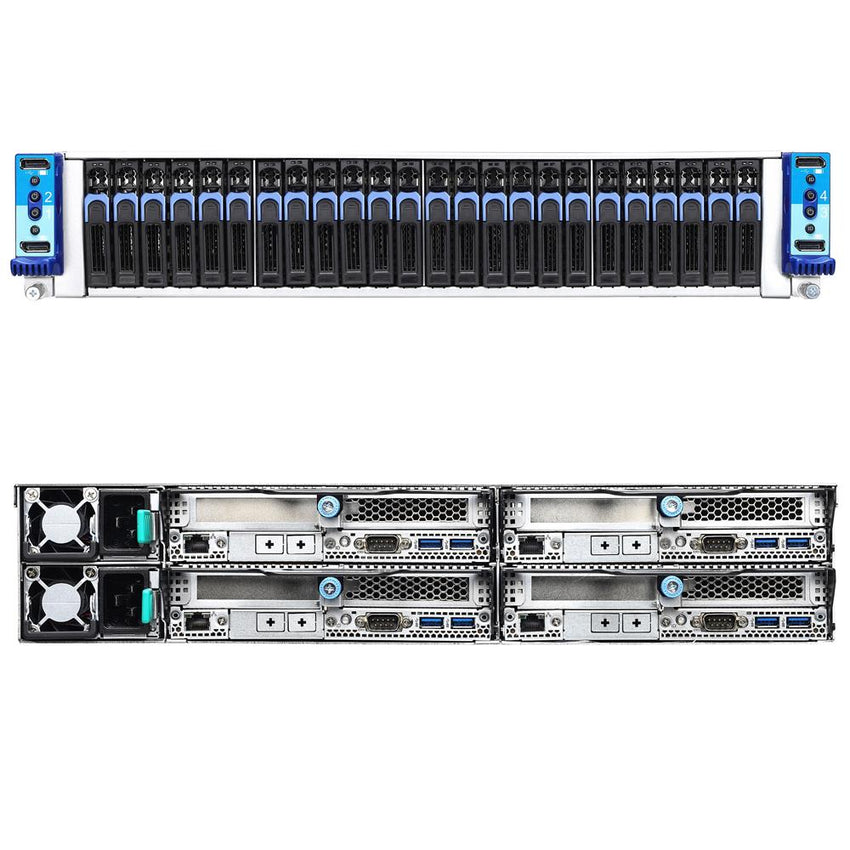

Front Panel I/O	4 x Power Button w/ LED 4 x ID Button w/ LED 4 x DisplayPort
Drive Support	Per Blade: 6 x 2.5" Hot Swappable NVMe U.2 Drive Bays 2 x M.2 NVMe Only (22110/2280) 2 x 8-pin SATA DOM Connector
Power Supply	2200W 1+1 Redundant 80+ Platinum RPSU AC 20-240V/13A
Cooling	4 x 8 CM Fans

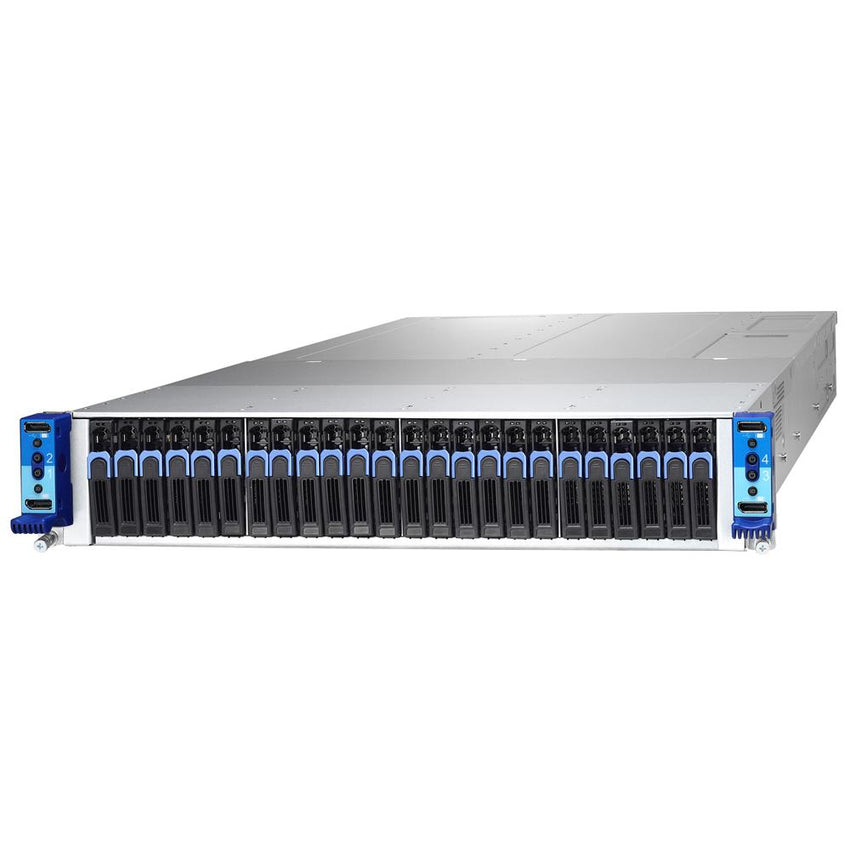

Case Dimensions	2U Rackmount 849 x 443.8 x 86.8mm 33.43" x 17.47" x 3.42" (in inches) Net Weight: 30 kg, 66.5 lbs Gross Weight: 38 kg, 84 lbs
Environmental	Operating Temperature: 10°C - 35°C (50°F - 95°F) Non-operating Temperature: -40°C - 70°C (-40°F - 158°F) In/Non-operating Humidity: 90%, non-condensing at 35°C
Compliance	RoHS 6/6 RCM Class A FCC (SDoC) Class A CE (DoC) Class A VCCI Class A CB/LVD
Warranty	1-year warranty on parts and labor
