Manufacturer	Tyan
Product ID	B5556G24EV4HR-2T-N
CPU	Supports Intel Xeon E-2100 Processors Supports Intel 8th Gen Core i3 Processors LGA 1151 Supports up to 95W TDP
Chipset	Intel C242
Memory	4 x DDR4 DIMM slots Supports ECC UDIMM Supports up to 64 GB Capacity Supports 2666/2400 MHz Dual Channel
Video	Aspeed AST2500 BMC with Redfish Support
Storage Technology	2 x SATA3 6Gb/s Ports 4 x SATA3 6Gb/s Ports via Mini-SAS HD Supports RAID 0, 1, 5, 10 (Intel RSTe)
Connectivity	2 x Intel X550-AT 10GbE Ports 1 x Realtek RTL8211E Dedicated IPMI
Expansion	1 x PCI-E 3.0 x8 slot (Half Height, Half Length) 1 x PCI-E 3.0 x16 slots (Full Height, Full Length, Dual Width)

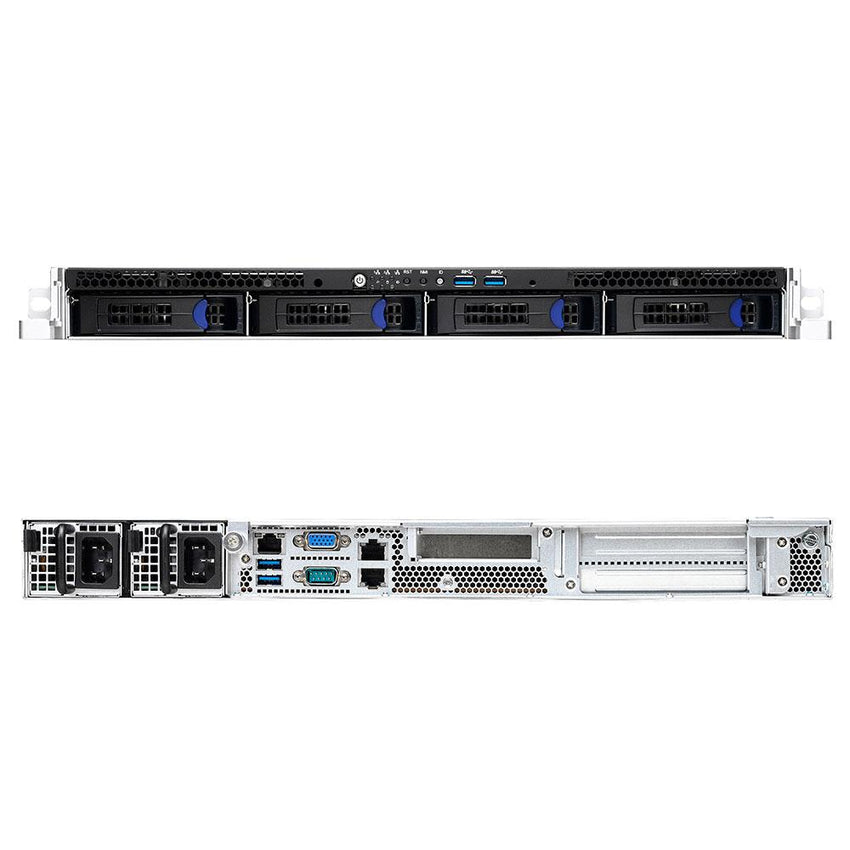

Rear Panel I/O	1 x RJ45 Dedicated IPMI 2 x USB 3.1 (Gen2) 1 x VGA 1 x Serial COM 2 x RJ45 10GbE LAN
Front Panel I/O	1 x Power Button 6 x Status LED (HDD, ID, LAN, BMC event) 1 x RST Button 1 x NMI Button 1 x ID Button 2 x USB 3.1 (Gen1)
Drive Support	4 x 3.5"/2.5" Hot Swap Drive Bays 2 x 2.5" Internal Fixed Drive Bays
Power Supply	1+1 Redundant 650W 80 PLUS Platinum Power Supply 100-240V, 9A, 50-60Hz Hot Swappable
Case Dimensions	1U Form Factor 645 x 436 x 43.6mm 25.4" x 17.2" x 1.72" (in inches) Weight: 15.5kg, 34.5lbs
Environmental	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) In/Non-Operating Humidity: 90%, non-condensing at 35°C
Compliance	FCC (SDoc) Class A, CE (DoC) Class A, CB/LVD RCM Class A, VCCI Class A
Warranty	3 Year Manufactuere's Limited Warranty
