| Manufacturer | Supermicro |
| Product ID | AS-3015MR-H8TNR |
| CPU | AMD Ryzen 7000 Series per Node Socket AM5 Up to 16C/32T Up to 16MB Cache per CPU |
| Chipset | AMD Knoll - Integrated I/O Controller Hub |
| Memory | 4 x DDR5 DIMM slots per Node Maximum 128 Capacity 5200/4800/3600 MHz ECC/Non-ECC UDIMM |
| Video | Aspeed AST2600 |
| Storage Technology | Per Node: 2 x U.2 NVMe 1 x M.2: PCI-E 5.0 x2 2 x SAS port Link to AOC SAS Card |
| Connectivity | 1+1 Dedicated and Centralized IPMI Management Ports 2 x 2.5G LAN Ports Per Node |
| Expansion | 1 x PCI-E 5.0 x16 slot (x8 Link, Low Profile) Per Node |

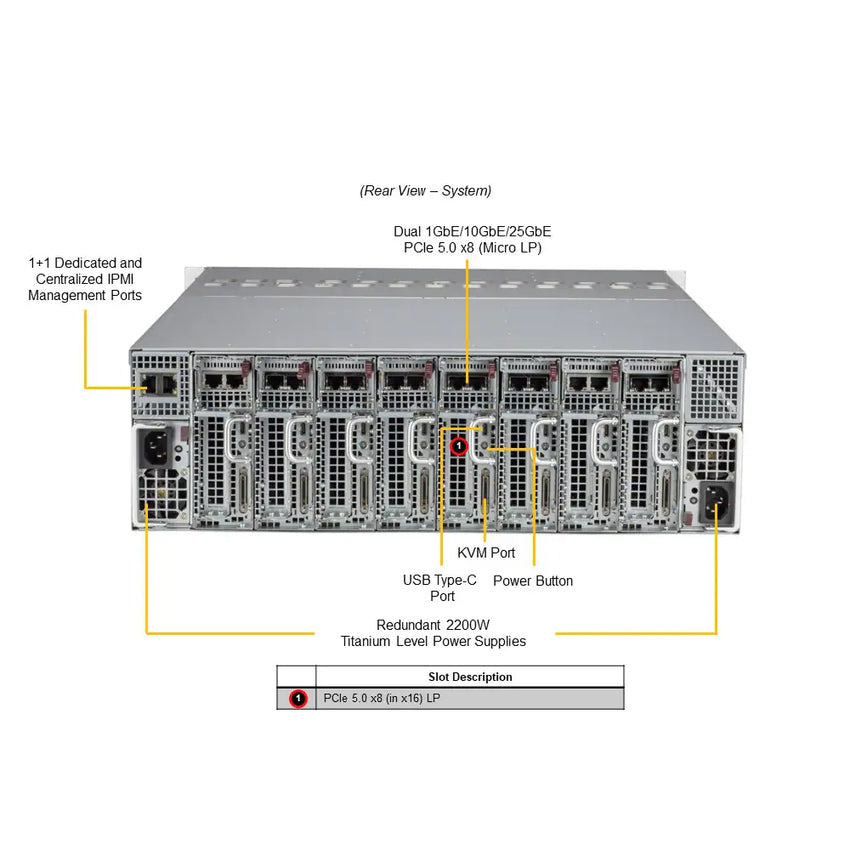

| Rear I/O | 2 x RJ45 1+1 Dedicated and Centralized IPMI Per Node: 2 x RJ45 2.5G LAN 1 x USB 3.2 Type-C Port 1 x Power Button 1 x KVM Port (2 x USB 2.0, Serial COM, VGA) |

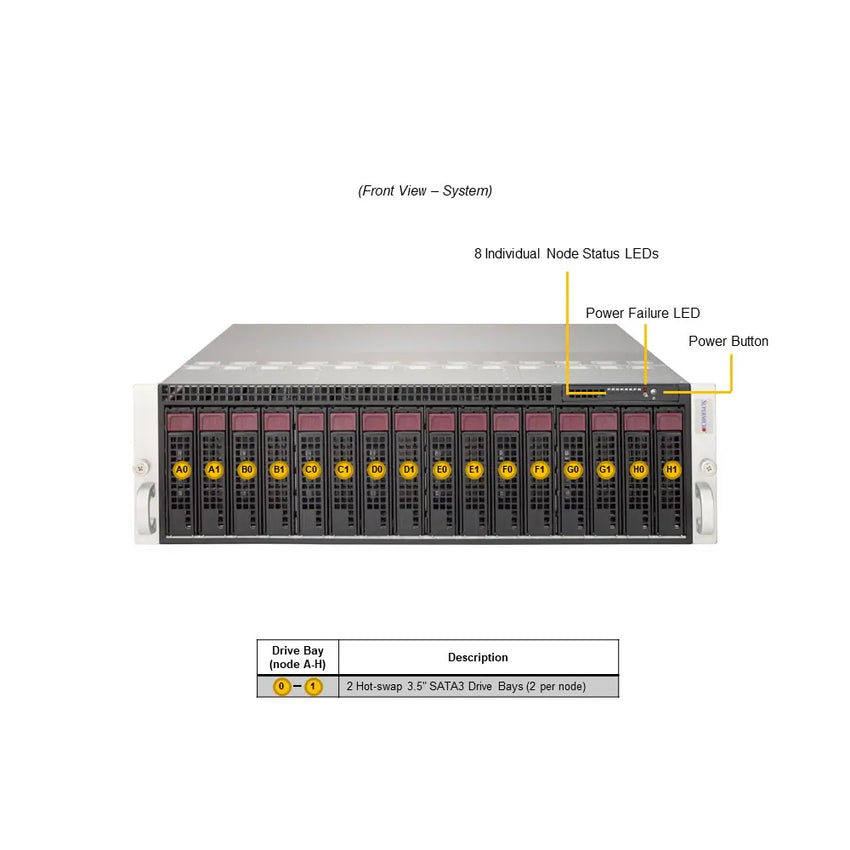

| Front Panel I/O | 8 x Status LED (Node) 1 x Power Failure LED 1 x Power Button |
| Drive Support | 16 x 3.5"/2.5" NVMe/SATA Drive Bays 8 x M.2 22110/2280 slot (1 per Node, PCI-E 5.0 x2, M Key) |
| Power Supply | 2200W Redundant 80+ Titanium Power Supply AC Input: 100-120V, 180-240V |
| Cooling | 4 x 80x38mm Case Fans |
| Case Dimensions | 3U Rackmount 23.2" x 17.26" x 5.21" (in inches) 589 x 438 x 132mm Gross Weight: 88 lbs, 39.92kg |
| Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 8% to 90% (non-condensing) Non-Operating Humidity: 5% to 95% (non-condensing) |
| Compliance | RoHS |
| Warranty | 1 Year Manufacturer's Limited Warranty |
PRODUCT ID: AS-3015MR-H8TNR
