Manufacturer	Supermicro
Product ID	AS-2013S-C0R
CPU	Supports AMD EPYC 7000 Series Processors Socket SP3 Up to 200W TDP, up to 32 Cores
Chipset	SoC
Memory	8 x DDR4 DIMM Slots Supports up to 1TB ECC RDIMM 2666MHz 8-Channel
Video	Aspeed AST2500
Storage Technology	8 x SATA3 6.0Gb/s Ports 8 x SAS3 12Gb/s Ports via Broadcom 3008 IR mode; RAID 0, 1, 10 1 x M.2 Slots (PCI-E 3.0 x4)
Connectivity	2 x Intel I210 GbE LAN 1 x Realtek RTL8211F PHY Dedicated IPMI
Expansion	3 x PCI-E 3.0 x16 slots (low profile) 3 x PCI-E 3.0 x8 slots (low profile)

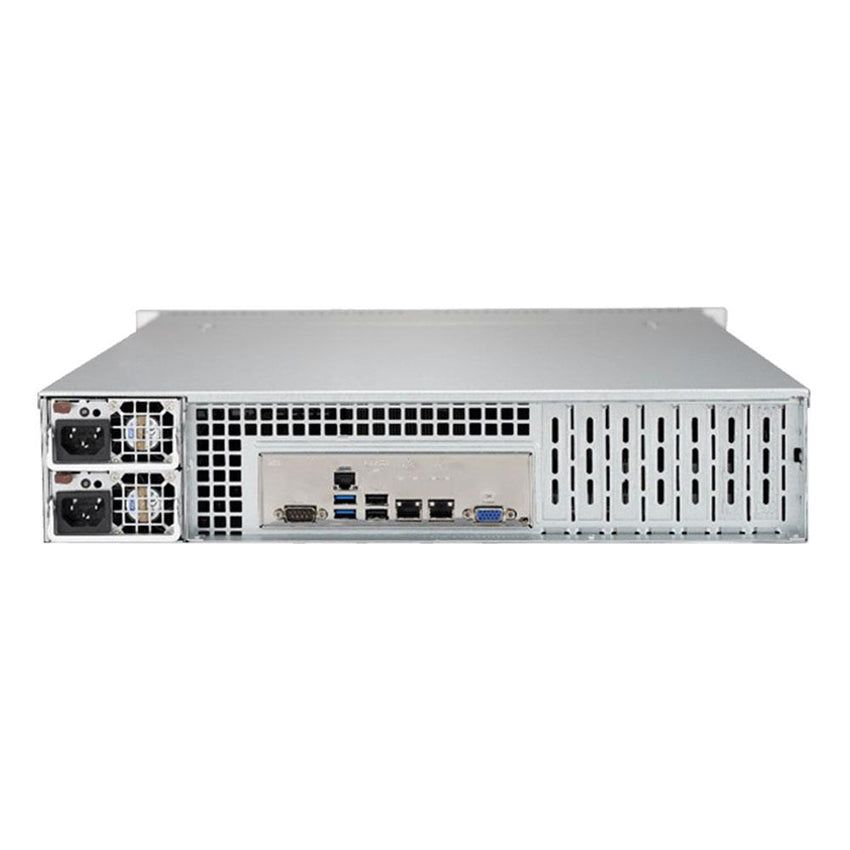

Rear I/O	1 x Serial COM 1 x RJ45 Dedicated IPMI ,br> 2 x USB 2.0 2 x USB 3.0 2 x RJ45 GbE LAN 1 x VGA

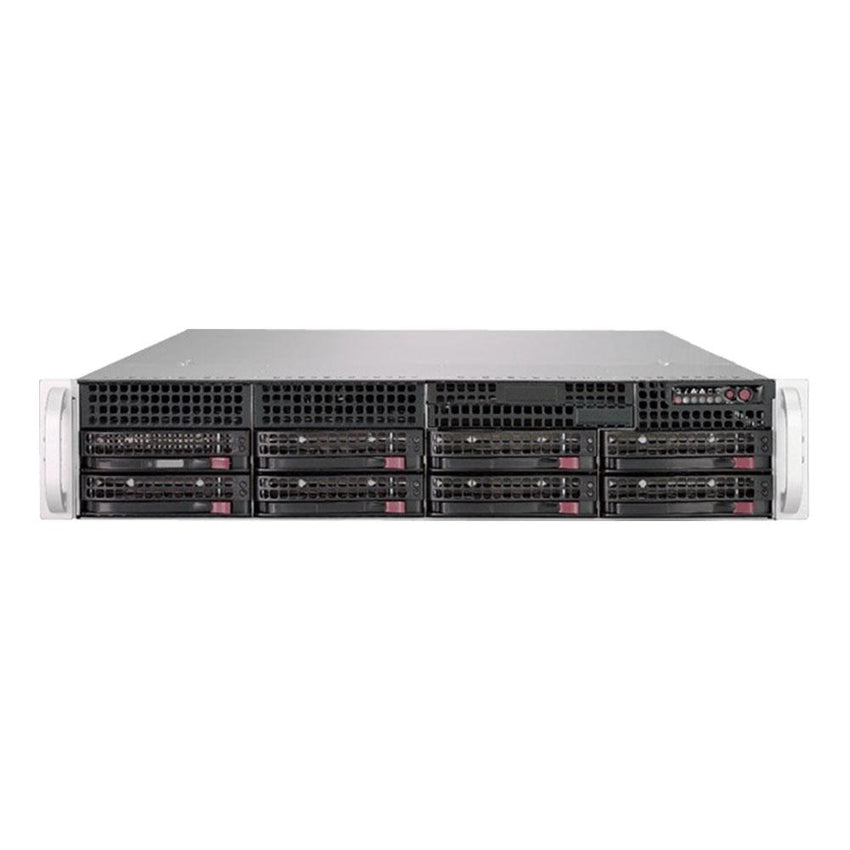

Front Panel I/O	5 x Status LED (Power, HDD, LAN, BMC) 1 x Reset Button 1 x Power Button
Drive Support	8 x 3.5" SATA/SAS Drive Bays
Power Supply	740W Redundant 80 PLUS Platinum Power Supply 100-240V, 50-60Hz, 9-3.5A
Cooling	3 x 80mm 7000RPM Hot Swap PWM Fans
Case Dimensions	2U Form Factor 647 x 437 x 89mm 25.5" x 17.2" x 3.5" (in inches) Net Weight: 35.5lbs, 16.1kg Gross Weight: 69lbs, 31.2kg
Environmental	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 8% to 90% (non-condensing) Non-operating Humidty: 5% to 95% (non-condensing)
Compliance	RoHS
Warranty	1 Year Manufacturer's Limited Warranty
