Manufacturer	Supermicro
Product ID	AS-1014S-WTRT
CPU	Supports AMD EPYC 7002 Series Processor Socket SP3 Supports 240W TDP
Chipset	SoC
Memory	8 x DDR4 DIMM slots Supports up to 2TB 3DS ECC RDIMM/LRDIMM 3200MHz
Video	ASPEED AST2500 BMC
Storage Technology	4 x SATA3 6.0 GB/s Ports 2 x M.2 (PCI-E 3.0 x2 or SATA) slots 2 x SATADOM Ports
Connectivity	2 x BroadcomBCM57416 10GBase-T LAN 1 x Dedicated IPMI LAN
Expansion Slots	2 x PCI-E 4.0 x16 slots (Full Height, Half Length) 1 x PCi-E 4.0 x16 slot (Low Profile, some devices will run at 3.0 speeds)

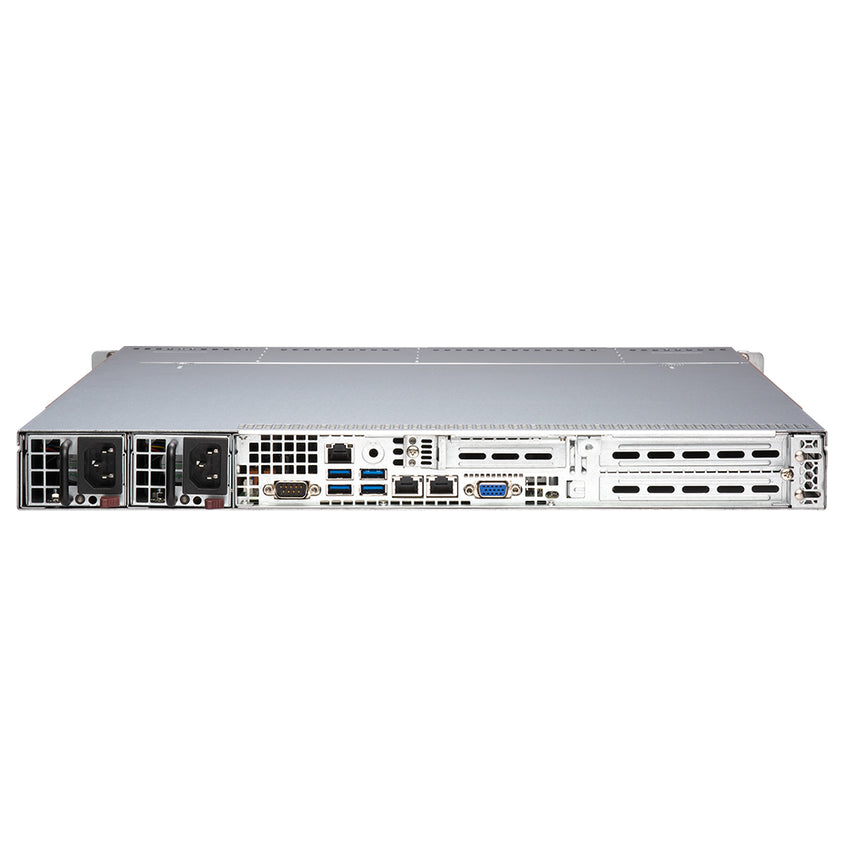

Rear Panel I/O	1 x Serial COM Port 1 x RJ45 Dedicated IPMI Port 4 x USB 3.0 2 x RJ45 GbE LAN 1 x VGA Port

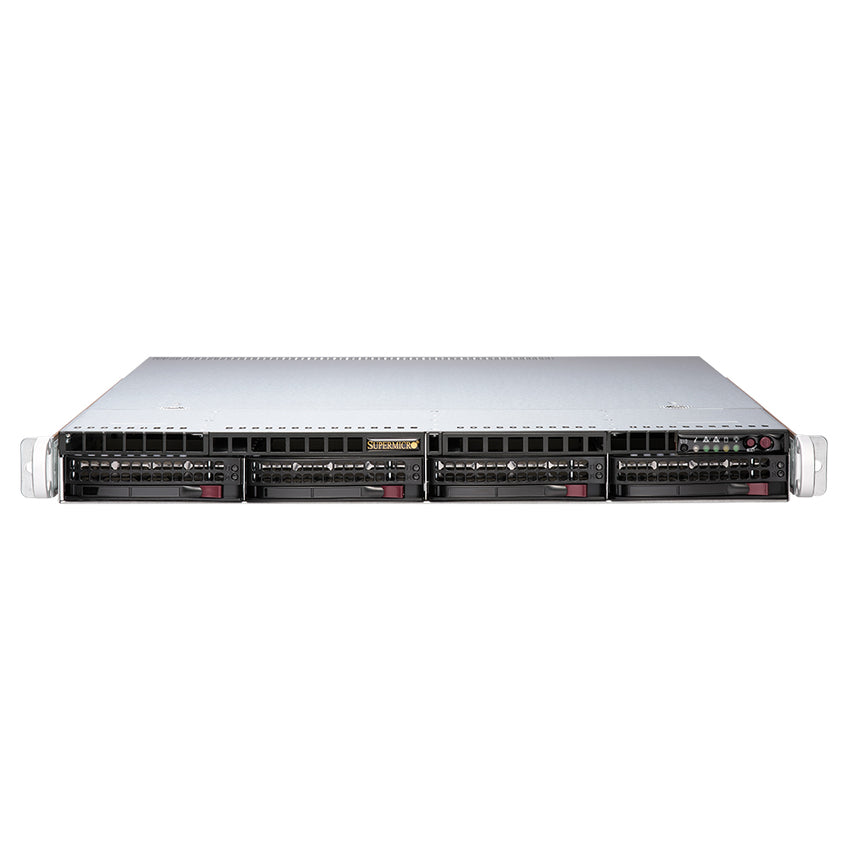

Front Panel I/O	1 x UID Button 6 x Status LED (UID, HDD, LAN, Power) 1 x Reset Button 1 x Power Button
Drive Support	4 x 3.5" Hot Swap SATA Drive Bays
Cooling	4 x 40x56mm Cooling Fans Supports 6 x 40x56mm Cooling Fans
Power Supply	500W Redundant 80 PLUS Platinum Power Supply with PMBus 100-240Vac, 50-60Hz, 6.1-2.6A
Case Dimensions	1U Rackmount 650 x 437 x 43mm 25.6" x 17.2" x 1.7" (in inches)
Environmental	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Humidity: 8% to 90% (non-condensing) Non-operating Humidty: 5% to 95% (non-condensing)
Compliance	RoHS
Warranty	1-Year Manufacturer's Warranty on Parts 3-Year Manufacturer's Warranty on Labor
