Manufacturer	ASRock Rack
Product ID	4U36L2S-C621
CPU	Supports 2 x 2nd Gen Intel Xeon Scalable Processors, Cascade Lake LGA 3647 205W Thermal Design Power
Chipset	C621
Memory	16 x DDR4 DIMM Slots (8 per CPU) RDIMM up to 64GB per slot (1TB Total) LRDIMM up to 256GB per slot (4TB total) RDIMM/LRDIMM up to 2933 MHz
Video	ASPEED AST2500
Storage Technology	24-port 12Gbps Active Backplane 12-port 12Gbps Active Backplane and 2-port Passive Backplane 1 x M.2: PCI-E 3.0 x4 or SATA 1 x M.2: SATA
Connectivity	2 x Intel X722 GbE LAN 2 x Marvell 88E1543 PHY GbE LAN 1 x Realtek RTL8211E Dedicated IPMI
Expansion	4 x PCI-E 3.0 x16 slots (Low Profile) 1 x PCI-E 3.0 x16 slot or 2 x PCI-E 3.0 x8 slots (Low Profile)

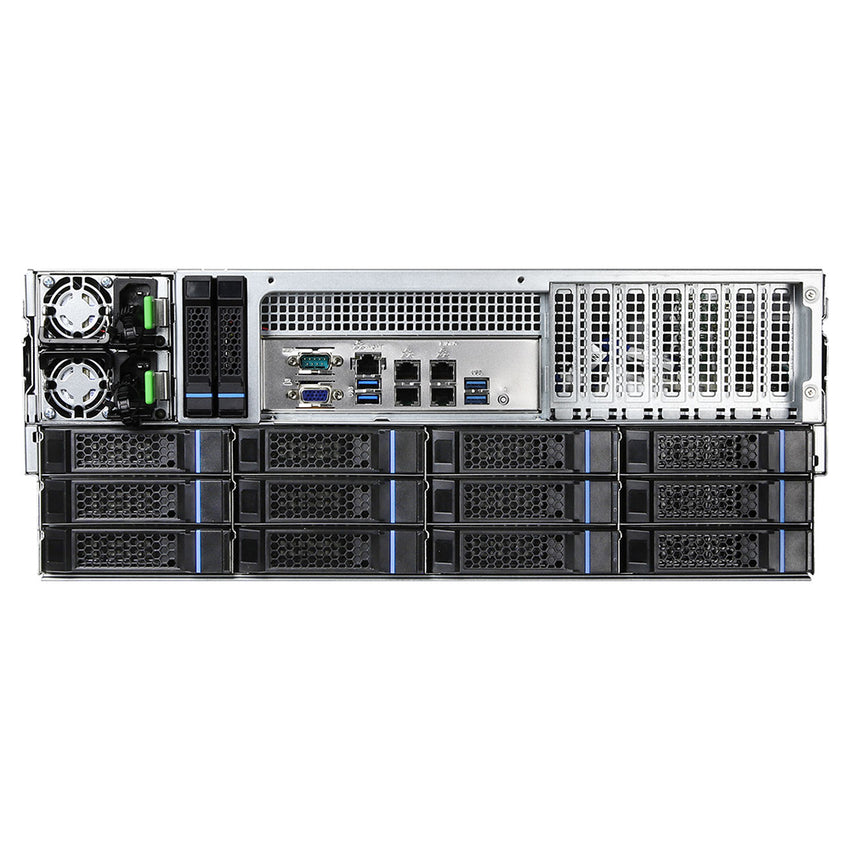

Rear I/O	1 x COM 1 x VGA 1 x RJ45 GbE Dedicated IPMI 4 x USB 3.2 (Gen1) 4 x RJ45 GbE LAN 1 x UID Button
Front Panel I/O	1 x Reset button 1 x Power Button 5 x Status LED (Power, LAN, System Fail, HDD) 2 x USB 3.2 (Gen1) Type-A
Drive Support	24 x 3.5" Hotswap Drive Bays 12 x 3.5" Hotswap Drive Bays (Rear, Requires additional RAID/HBA Card) 2 x 2.5" SATA Hotswap Drive Bays
Power Supply	1+1 1200W 80 PLUS Platinum CRPS Lowline: 100-127V, 50/60Hz Highline: 200-240V, 50/60Hz
Cooling	7 x 80x38mm Hotswap Fans
Case Dimensions	4U Rackmount 27.52" x 17.01" x 6.93" (in inches) 699 x 432 x 176mm
Environmental	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-Operating Temperature: -40°C to 70°C (-40°F to 158°F)
Warranty	1 Year Manufacturer's Limited Warranty
