Manufacturer | ASRock Rack |
Product ID | 2U4G-ROME/2T |
CPU | Supports AMD EPYC 7003 and 7002 Series Processors Socket SP3 (LGA4094) |
Chipset | SoC |
Memory | 8 x DDR4 DIMM Slots Supports up to 512GB RDIMM Supports up to 2,048GB LRDIMM 3200/2933 MHz |
Video | ASPEED AST2500 |
Storage Technology | 4 x SATA 6.0Gb/s 1 x M.2: PCI-E 3.0 x4 or SATA |
Connectivity | 2 x Intel X550 10GBase-T LAN 1 x Realtek RTL8211E Dedicated IPMI Supports Wake-On-LAN Supports Dual LAN with Teaming Function Supports PXE LAN1 supports NCSI |
Expansion | 4 x PCI-E 4.0 x16 slot (Double Width) Note: Max 350W per GPU 1 x PCI-E 4.0 x16 slot (Low Profile) 1 x OCP Mezzanine Type A (Gen3 x8) 1 x OCP Mezzanine Type B (Gen3 x8) |

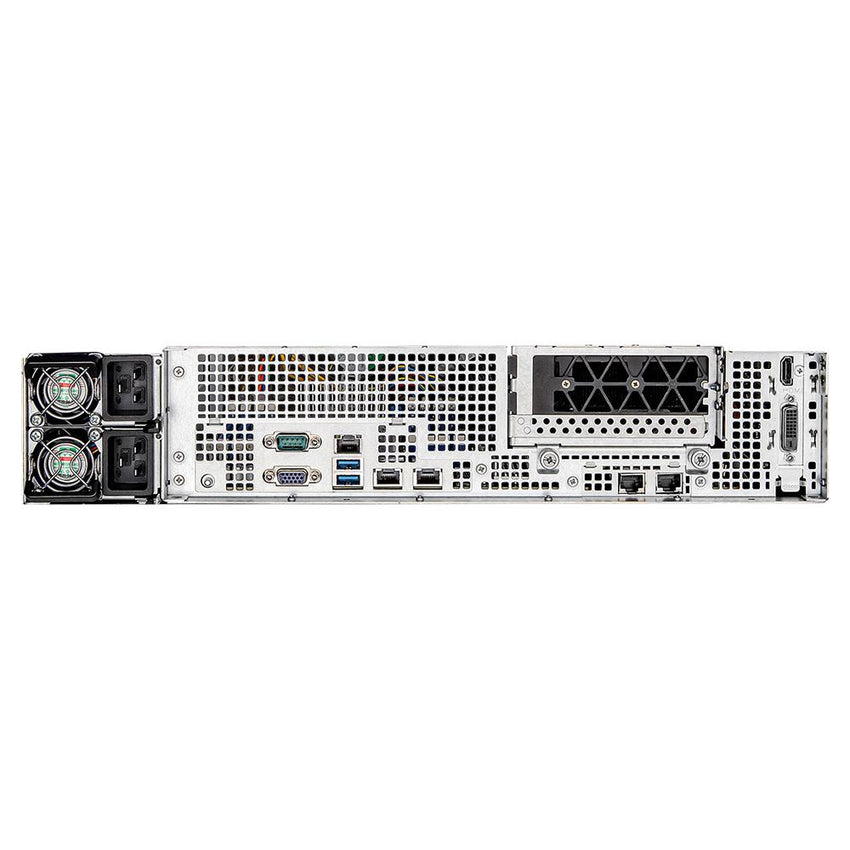

Rear I/O | 1 x Serial Port 1 x VGA 1 x RJ45 Dedicated IPMI 2 x USB 3.0 2 x RJ45 10G LAN |

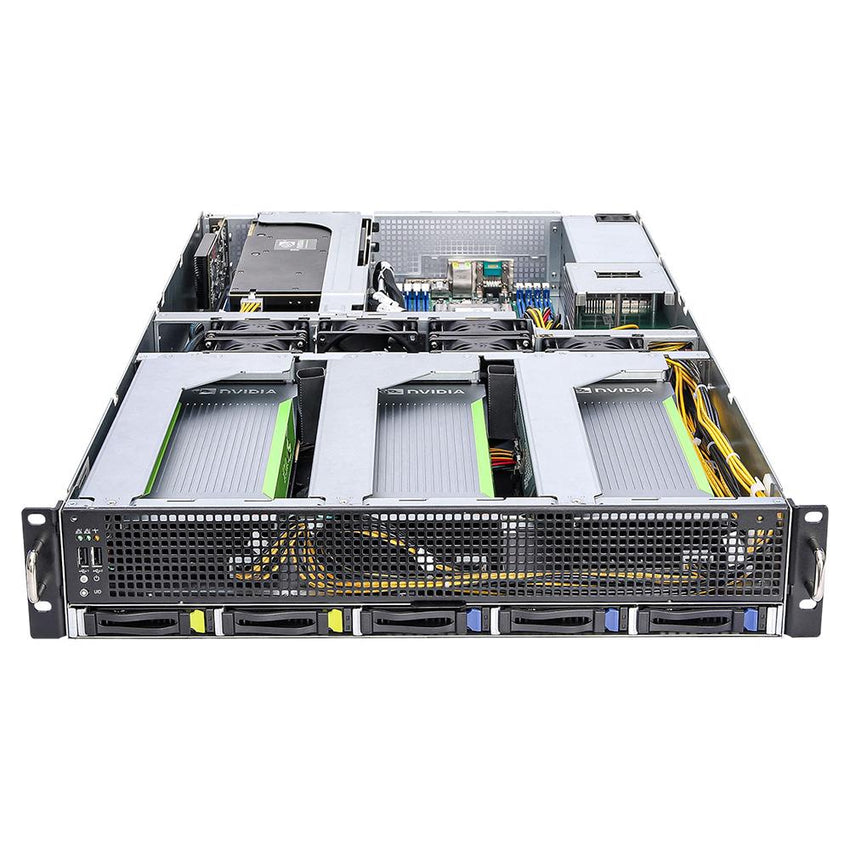

Front Panel I/O | 3 x Status LED (LAN, System Event) 2 x USB 2.0 1 x Power Button 1 x UID Button |
Drive Support | 1 x 2.5" NVMe Drive Bay 1 x 2.5" NVMe/SATA Drive Bay 3 x 2.5" SATA Drive Bay 1 x M.2 2280/2260/2242/2230 slot (PCI-E 3.0 x4 or SATA) |
Power Supply | 1+1 Redundant 2000W 80 PLUS Platinum Power Supply High Line 200-240V, 50/60Hz |
Cooling | 6 x 80x38mm Cooling Fans |
Case Dimensions | 2U Rackmount 17.2" x 31.3" x 3.4" (in inches) 438 x 795 x 87.5mm |
Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-Operating Temperature: -40°C to 70°C (-40°F to 158°F) |
Warranty | 1 Year Manufacturer's Limited Warranty |
