Manufacturer | ASRock Rack |
Product ID | 2U4G-EPYC |
CPU | Supports AMD EPYC 7000 Series Processors Socket SP3 |
Chipset | N/A |
Memory | 8 x DDR4 DIMM slots Supports up to 256GB ECC RDIMM Supports up to 512GB ECC LRDIMM 8-Channel |
Video | Aspeed AST2500 DDR4 256Mb VRAM |
Storage Technology | 4 x SATA3 6Gb/s Ports |
Connectivity | 2 x Intel i350 GbE LAN Supports Wake-On-LAN Supports PXE 1 x Realtek RTL8211E Dedicated IPMI |
Expansion | 1 x PCI-E 3.0 x8 slot (Half Height) 4 x PCI-E 3.0 x16 slot (double width) Max 300W per GPU or 8 x PCI-E 3.0 x8 (single width) Max 150W per GPU |

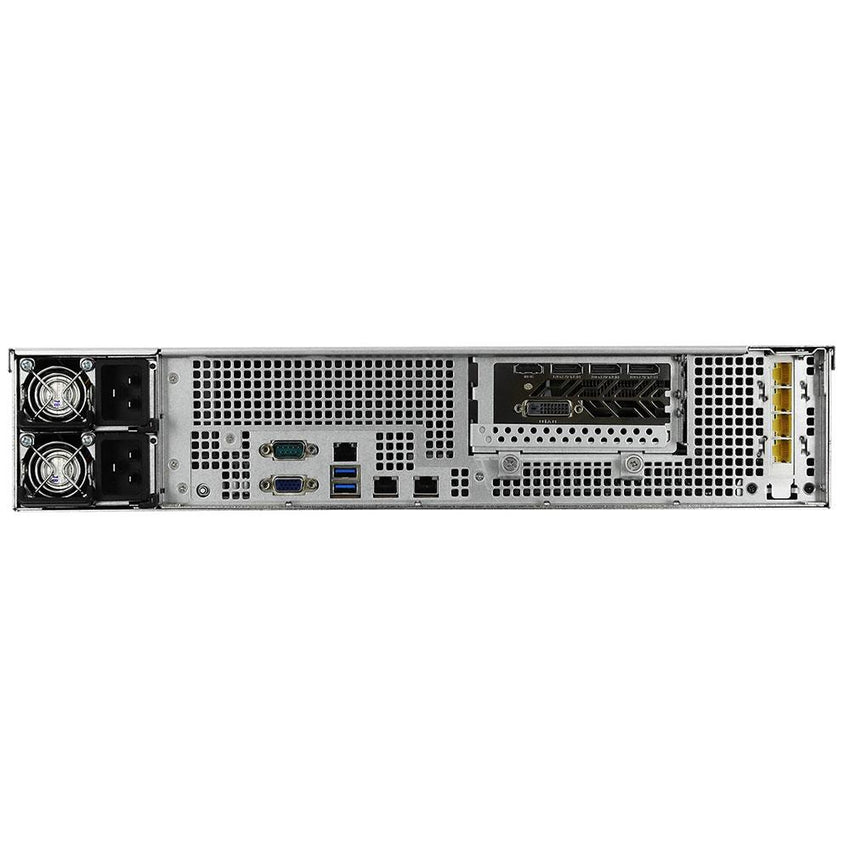

Rear I/O | 1 x Serial COM Port 1 x VGA 1 x RJ45 Dedicated IPMI 2 x USB 3.0 2 x RJ45 GbE LAN |

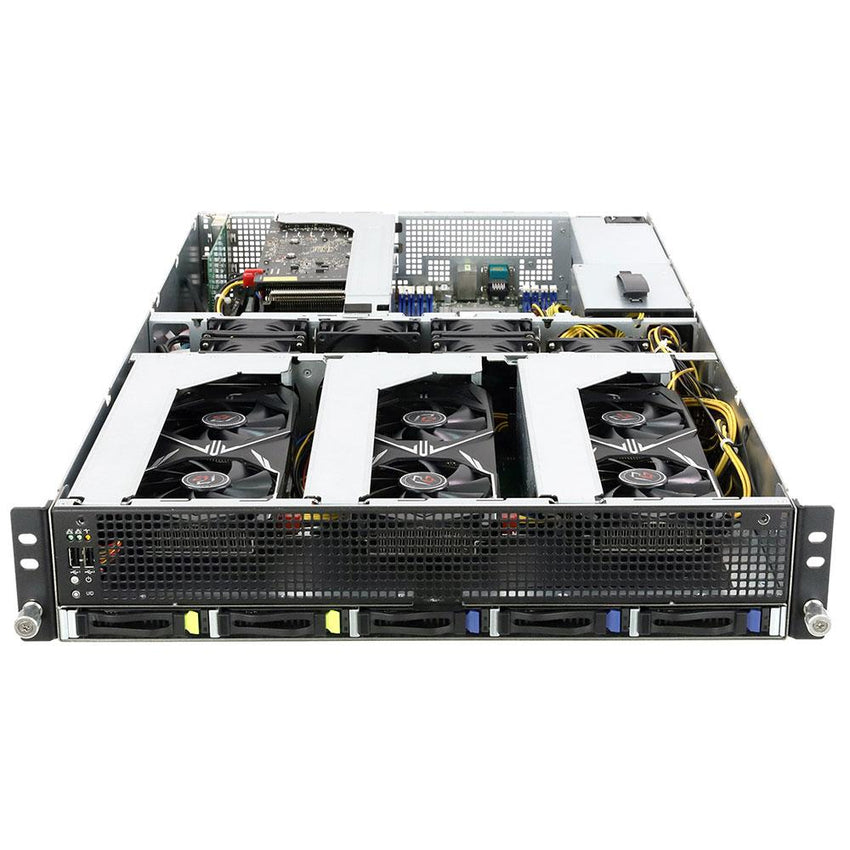

Front Panel I/O | 3 x Status LED (LAN, Event) 2 x USB 2.0 1 x Power Button 1 x UID Button |
Drive Support | 4 x 2.5" SATA3 Drive Bays 1 x 2.5" NVMe Drive Bay Note: NVMe requires additional kit |
Power Supply | 1+1 Redundant 2000W 80 PLUS Platinum Power Supply |
Cooling | 6 x 80x38mm Case Fans |
Case Dimensions | 2U Form Factor 438 x 795 x 87.5mm 17.2" x 31.3" x 3.4" (in inches) |
Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
Warranty | 1 Year Manufacturer's Limited Warranty |
