| Manufacturer | ASRock Rack |
| Product ID | 2U12L2S-ROME/2T |
| CPU | Supports AMD EPYC 7003 and 7002 Series Processors Socket SP3 (LGA4094) Supports up to 225W |
| Chipset | SoC |
| Memory | 8 x DDR4 DIMM Slots Supports up to 512GB RDIMM Supports up to 1,024GB LRDIMM 3200/2933/2666/2400 MHz |
| Video | ASPEED AST2500 |
| Storage Technology | SATA 6.0Gb/s 1 x M.2: PCI-E 3.0 x4 or SATA |
| Connectivity | 2 x Intel X550-AT2 10GBase-T LAN 1 x Realtek RTL8211E Dedicated IPMI Supports Wake-On-LAN Supports Dual LAN with Teaming Function Supports PXE LAN1 supports NCSI |
| Expansion | 2 x PCI-E 4.0 x16 slots (Full Height, Full Length) 1 x PCI-E 4.0 x16 slot (Full Height, Half Length) 1 x PCI-E 4.0 x8 slot (Full Height, Half Length) 1 x OCP 2.0 Mezzanine Connector A and B (PCIe x16) |

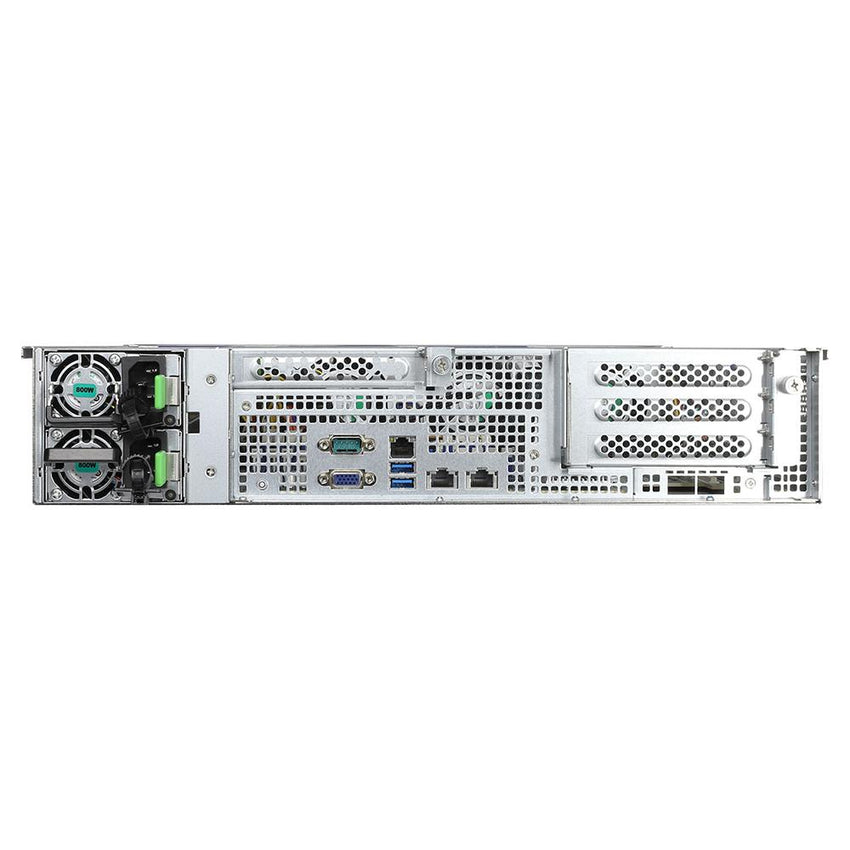

| Rear I/O | 1 x COM Port 1 x VGA 1 x RJ45 Dedicated IPMI 2 x USB 3.0 2 x RJ45 10G LAN |
| Front Panel I/O | 1 x Power Button 1 x UID Button 4 x Status LED (Power, LAN, UID) 1 x NMI Button 1 x USB 3.2 (Gen1) Type-A |
| Drive Support | 12 x 3.5" Hotswap Drive Bays 2 x 2.5" Internal Drive Bays 1 x M.2 2280/2260/2242/2230 slot (PCI-E 3.0 x4 or SATA) |
| Power Supply | 1+1 800W 80 PLUS Platinum CRPS 100-127V, 50/60Hz 200-240V, 50/60Hz |
| Cooling | 3 x 80x38mm 11200 RPM Middle Fans |
| Case Dimensions | 2U Rackmount 24.6" x 19" x 3.4" (in inches) 625 x 482.6 x 87mm |
| Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-Operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Warranty | 1 Year Manufacturer's Limited Warranty |
PRODUCT ID: 2U12L2S-ROME/2T
