| Manufacturer | ASRock Rack |
| Product ID | 1U8S2E-ICX/2T |
| CPU | Supports Intel 3rd Gen Xeon Scalable Processor Socket LGA 4189 |
| Chipset | Intel C621A |
| Memory | 8 x DDR4 DIMM slots Maximum 512GB Capacity RDIMM Maximum 1024GB Capacity LRDIMM Maximum 2048GB Capacity RDIMM-3DS/LRDIMM-3DS 3200 MHz |
| Video | Aspeed AST2500 |
| Storage Technology | 2 x NVMe/SATA 8 x SATA 6Gb/s Connector 1 x M.2: PCI-E 3.0 x4/SATA |
| Connectivity | 2 x Intel X710-AT2 10GbE LAN 1 x Realtek RTL8211E Management LAN |
| Expansion | 1 x PCI-E 4.0 x16 slot (Full Height, Half Length) |

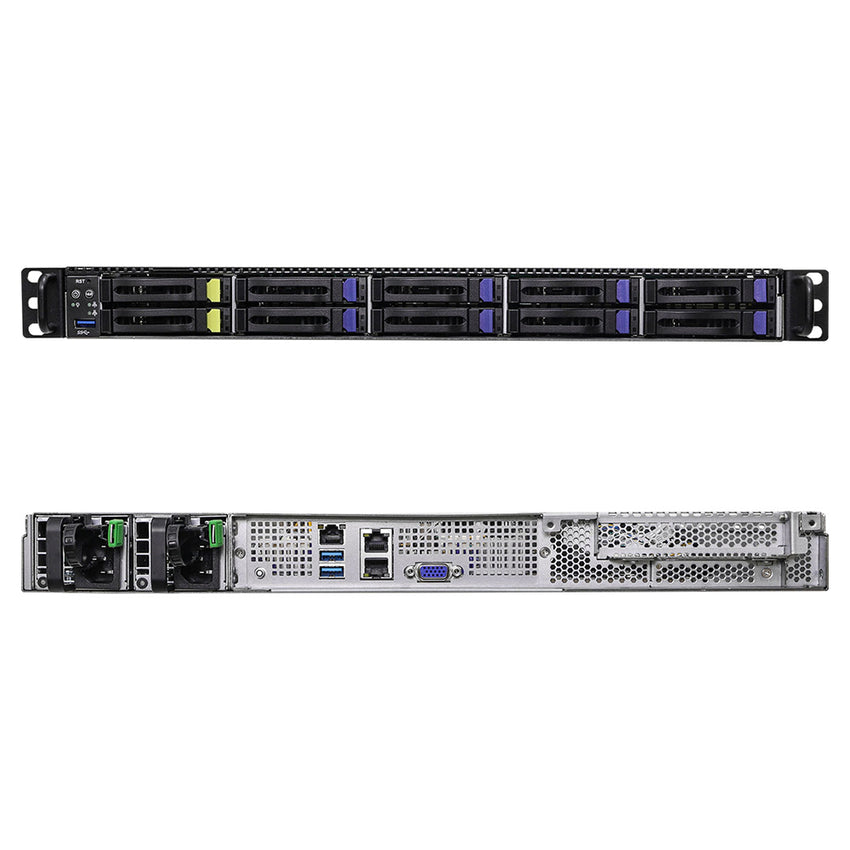

| Rear I/O | 1 x UID Button with LED 1 x RJ45 GbE Dedicated Management LAN 2 x USB 3.2 (Gen1) 2 x RJ45 10GbE LAN 1 x VGA |
| Front Panel I/O | 1 x Reset Button 1 x Power Button 1 x NMI Button 5 x Status LED (Power, HDD, LAN) 1 x USB 3.2 (Gen1) |
| Drive Support | 2 x 2.5" NVMe/SATA Drive Bays 8 x 2.5" SATA Drive Bays 1 x M.2 2280 slot (PCI-E 3.0 x4 or SATA) |
| Power Supply | 1+1 Redundant 750W 80-PLUS Gold PSU 100-240V, 50-60Hz |
| Cooling | 6 x 40x56mm Case Fans |
| Case Dimensions | 1U Rackmount 625 x 430 x 43.5mm 24.6" x 16.9" x 1.7" (in inches) |
| Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Non-Operating Humidity: 20% to 90% (non-condensing) |
| Warranty | 1 Year Manufacturer's Limited Warranty |
PRODUCT ID: 1U8S2E-ICX/2T
