Manufacturer	ASRock Rack
Product ID	1U4LW-X570/2L2T
CPU	Supports AMD Ryzen 5000 Series Desktop Processors Supports AMD Ryzen 4000 G-Series Desktop Processors with Radeon Graphics Supports AMD Ryzen PRO 4000 and 3000 Series Desktop Processors Supports AMD Ryzen 3000 Seies Processors with Radeon Graphics CPU Socket AM4 Includes CPU Cooler
Chipset	AMD X570
Memory	4 x DDR4 DIMM Slots Maximum 128GB Capacity ECC UDIMM Support only with PRO Processors Supports up to 3200 MHz Note: AMD Ryzen 3000 Series Processors up to 2666MHz only
Video	Aspeed AST2500 Note: HDMI port requires CPU dependent Radeon Graphics
Storage Technology	SATA3: 6Gb/s M.2: PCI-E 4.0 x4 or SATA Note: PCI-E 3.0 x4 speeds when using Ryzen 3000 Series Processors
Connectivity	2 x Intel X710-AT2 10GbE LAN 2 x Intel i210 GbE LAN 1 x Realtek RTL8211E Dedicated IPMI
Expansion	1 x PCI-E 4.0 x16 slot (Full Height, Half Length) Note: PCI-E 3.0 x8 when using AMD Ryzen 3000 Series Processors

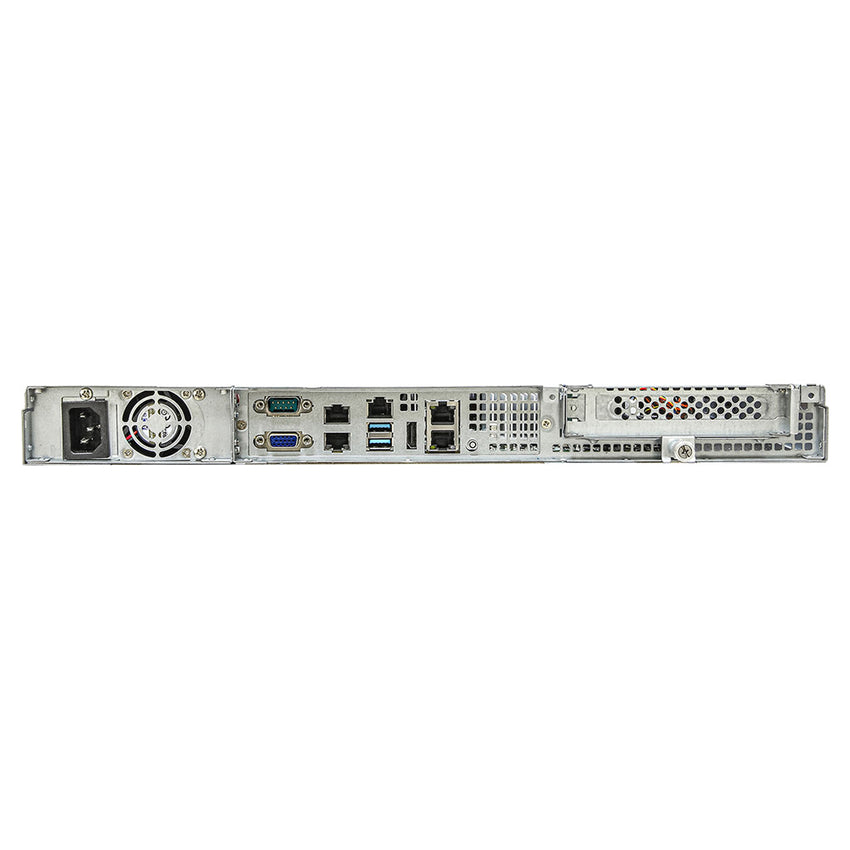

Rear I/O	1 x Serial Port 1 x VGA 2 x RJ45 GbE LAN 1 x RJ45 Dedicated IPMI 2 x USB 3.2 (Gen2) 1 x HDMI (CPU Dependent) 2 x RJ45 10GbE LAN 1 x UID Button/UID LED
Front Panel I/O	1 x Power Button w/ LED 1 x UID w/ LED 1 x System Reset Button 3 x Status LED (LAN, HDD, System Health) 2 x USB 3.2 (Gen1)
Drive Support	4 x 3.5" Hot Swap Drive Bays 3 x 2.5" Fixed Drive Bays 1 x M.2 22110/2280/2260/2242 slot (PCI-E 4.0 x4 or SATA) 1 x M.2 2280/2260/2242 slot (PCI-E 4.0 x4 or SATA)
Power Supply	400W 80 PLUS Gold Power Supply 100-240V, 50-60Hz
Cooling	5 x 40x28mm PWM Case Fans
Case Dimensions	1U Rackmount 533.4 x 482.6 x 44.4mm 21" x 19" x 1.75" (in inches) Includes Rack Rails
Environmental	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Warranty	1 Year Manufacturer's Limited Warranty
