| Manufacturer | ASRock Rack |
| Product ID | 1U4LW-X570 |
| CPU | Supports AMD Ryzen 5000 Series Desktop Processors Supports AMD Ryzen 4000 G-Series Desktop Processors with Radeon Graphics Supports AMD Ryzen PRO 4000 and 3000 Series Desktop Processors Supports AMD Ryzen 3000 Seies Processors with Radeon Graphics CPU Socket AM4 |
| Chipset | AMD X570 |
| Memory | 4 x DDR4 DIMM Slots Maximum 128GB Capacity ECC UDIMM Support only with PRO Processors Supports up to 3200 MHz Note: AMD Ryzen 3000 Series Processors up to 2666MHz only |
| Video | Aspeed AST2500 Note: HDMI port requires CPU dependent Radeon Graphics |
| Storage Technology | SATA3: 6Gb/s M.2: PCI-E 4.0 x4 or SATA Note: PCI-E 3.0 x4 speeds when using Ryzen 3000 Series Processors |
| Connectivity | 2 x Intel i210 GbE LAN 1 x Realtek RTL8211E Dedicated IPMI |
| Expansion | 1 x PCI-E 4.0 x16 slot (Full Height, Half Length) Note: PCI-E 3.0 x8 when using AMD Ryzen 3000 Series Processors |

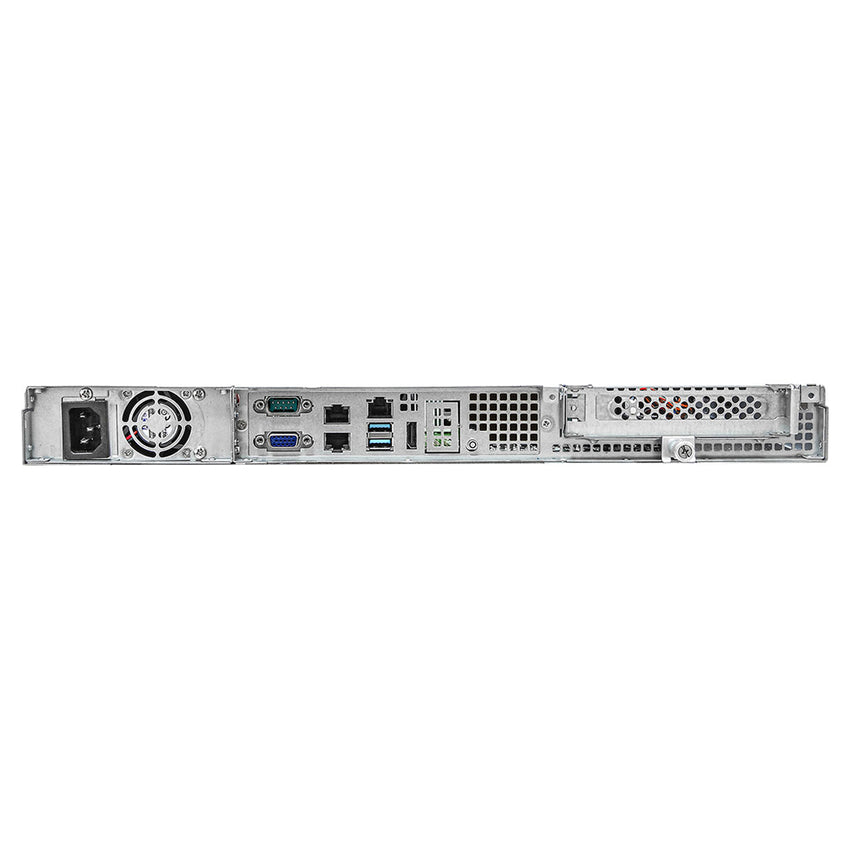

| Rear I/O | 1 x Serial Port 1 x VGA 2 x RJ45 GbE LAN 1 x RJ45 Dedicated IPMI 2 x USB 3.2 (Gen2) 1 x HDMI (CPU Dependent) 1 x UID Button/UID LED |
| Front Panel I/O | 1 x Power Button w/ LED 1 x UID w/ LED 1 x System Reset Button 3 x Status LED (LAN, HDD, System Health) 2 x USB 3.2 (Gen1) |
| Drive Support | 4 x 3.5"/2.5" Hot Swap Drive Bays 3 x 2.5" Fixed Drive Bays 1 x M.2 22110/2280/2260/2242 slot (PCI-E 4.0 x4 or SATA) 1 x M.2 2280/2260/2242 slot (PCI-E 4.0 x4 or SATA) |
| Power Supply | 400W 80 PLUSÂ Gold Power Supply 100-240V, 50-60Hz |
| Cooling | 5 x 40x28mm PWM Case Fans |
| Case Dimensions | 1U Rackmount 533.4 x 482.6 x 44.4mm 21" x 19" x 1.75" (in inches) |
| Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Warranty | 1 Year Manufacturer's Limited Warranty |
PRODUCT ID: 1U4LW-X570
