| Manufacturer | ASRock Rack |
| Product ID | 1U4LW-C262/2L2T RPSU |
| CPU |
Supports Intel Xeon E-2400 Series Processors Supports Intel Pentium Gold G7400/G7400T Processors Socket LGA 1700 Maximum 95W TDP |
| Chipset | Intel C262 |
| Memory |
4 x DDR5 DIMM slots Supports ECC UDIMM Maximum 128GB Capacity 4400/4000/3600 MHz |
| Video | Aspeed AST2600 |
| Storage Technology |
4 x SATA Connectors Backplane: 4-Port 6Gbps Passive Backplane 2 x OCuLink Connectors: PCI-E 4.0 x4 1 x M.2 2280/2260/2242/2230 slot: PCI-E 4.0 x4 |
| Connectivity |
2 x Intel X710 10GbE LAN 2 x Intel i210 GbE LAN 1 x Realtek RTL8211F Dedicated IPMI |
| Expansion |
1 x PCI-E 5.0 x16 slot (Full Height, Half Length) |
| Rear I/O |
1 x COM 1 x VGA 1 x RJ45 GbE Dedicated IPMI 2 x USB 3.2 (Gen1) 2 x RJ45 GbE LAN 2 x RJ45 10G LAN 1 x UID Button with LED |

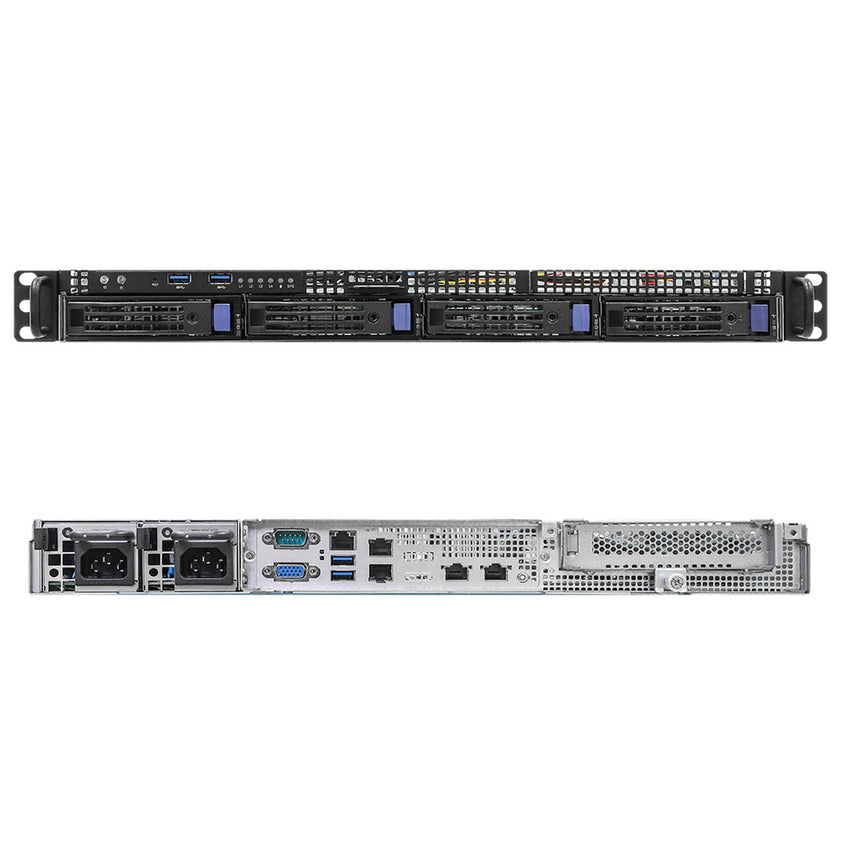

| Front Panel I/O |
1 x Power Button 1 x System Reset 1 x ID Switch 1 x NMI Button 2 x USB 3.2 (Gen1) 6 x Status LED (Power, HDD, LAN, System Fail) |
| Drive Support |
4 x 3.5" Hotswap SATA Drive Bays 2 x 2.5" NVMe (PCI-E 4.0 x4) Internal Drive Bays 1 x M.2 2280/2260/2242/2230 slot (PCI-E 4.0 x4) |
| Power Supply |
1+1 450W 80-PLUS Platinum RPSU 100-240Vac Input 6-3A, 50-60Hz |
| Cooling |
5 x 40x28mm PWM Case Fans |
| Case Dimensions |
1U Rackmount 533.4 x 482.6 x 44.4mm 21" x 19" x 1.75" (in inches) |
| Environmental |
Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Non-Operating Humidity: 20% to 90% (non-condensing) |
| Warranty | 1 Year Manufacturer's Limited Warranty |
PRODUCT ID: 1U4LW-C262/2L2T RPSU
