Manufacturer	ASRock Rack
Product ID	1U4LW-B650/2L2T RPSU
CPU	Supports AMD Ryzen 7000 Series Processors Socket AM5 Up to 105W TDP
Chipset	AMD B650
Memory	4 x DDR5 DIMM slots Maximum 128GB Capacity 5200 MHz (1DPC), 3600 MHz (2DPC) ECC/Non-ECC UDIMM
Video	ASPEED AST2600 HDMI and DisplayPort require AMD Processor with Graphics
Storage Technology	4 x SATA3 6Gb/s Connectors 1 x M.2: PCI-E 5.0 x4
Connectivity	2 x Broadcom BCM57416 10G LAN 2 x Intel I210 1GbE LAN 1 x Realtek RTL8211F 1GbE Dedicated IPMI LAN
Expansion	1 x PCI-E 4.0 x16 slot (Full Height) Supports up to 75W

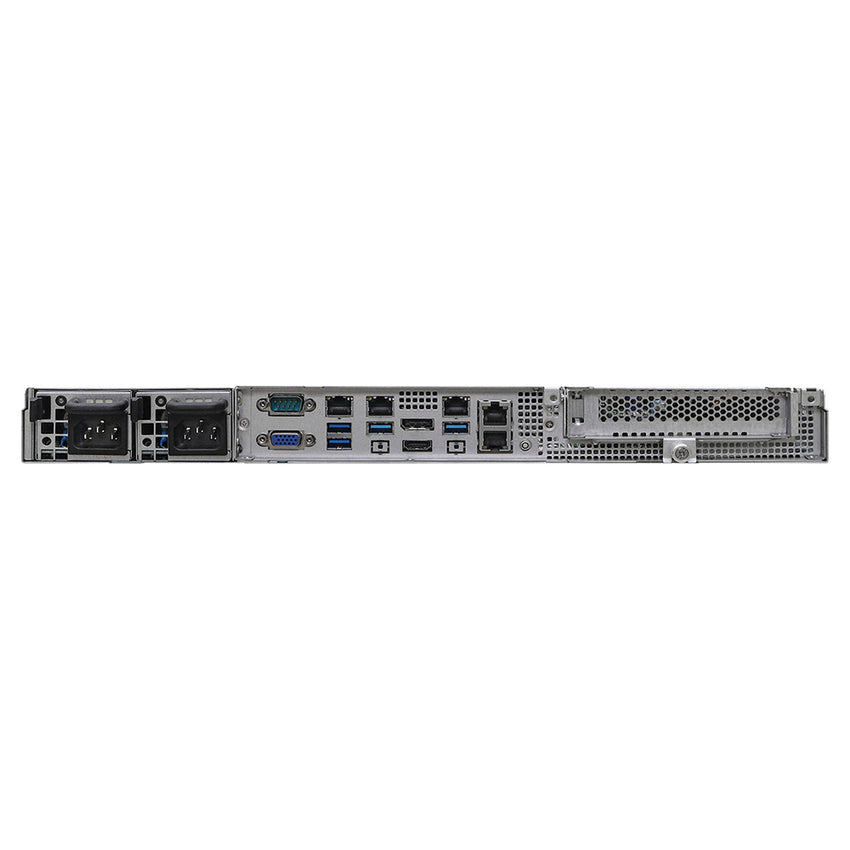

Rear I/O	1 x Serial COM 1 x VGA 1 x RJ45 1GbE Dedicated IPMI 4 x USB 3.2 (Gen1) 2 x RJ45 1GbE LAN 1 x DisplayPort (Requires Processor with Graphics) 1 x HDMI (Requires Processor with Graphics) 2 x RJ45 10G LAN 1 x UID Button with LED

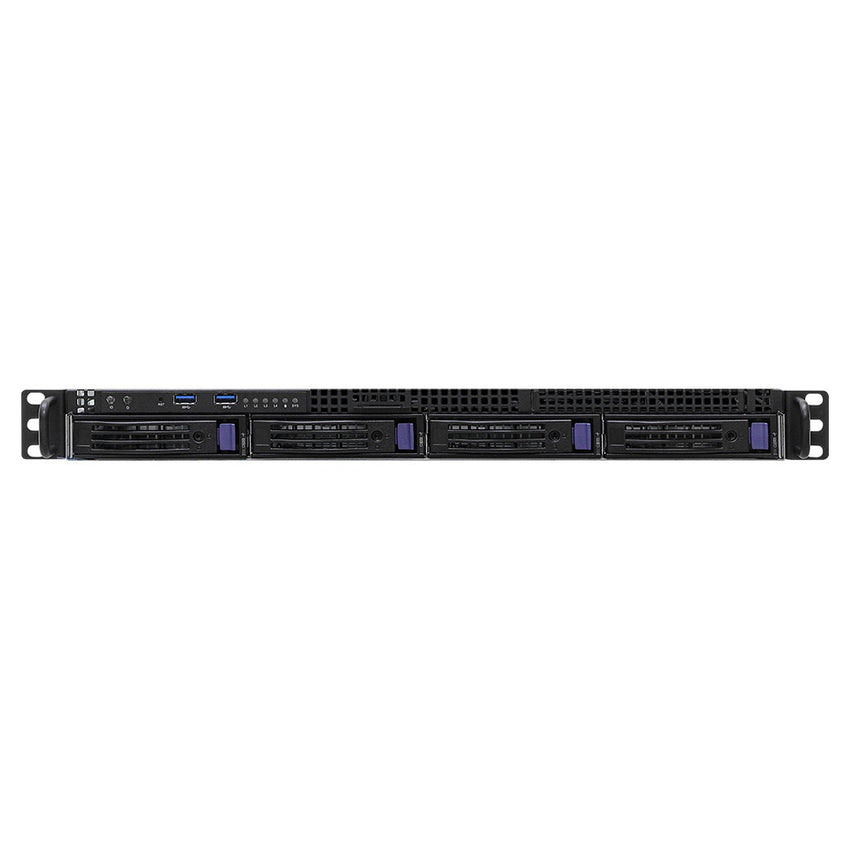

Front Panel I/O	1 x UID Button with LED 1 x Power Button with LED 1 x NMI Button 1 x Reset Button 2 x USB 3.2 (Gen1) 6 x Status LED (LAN, HDD, System)
Drive Support	4 x 3.5" Hotswap SATA Drive Bays 1 x M.2 2280/2242 slot (PCI-E 5.0 x4)
Power Supply	400W 80-PLUS Platinum Power Supply
Cooling	5 x 40x28mm Case Fans
Case Dimensions	1U Form Factor 533.4 x 482.6 x 44.4mm 21" x 19" x 1.75" (in inches)
Environmental	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Non-operating Humidty: 20% to 90% (non-condensing)
Warranty	1 Year Manufacturer's Limited Warranty
