| Manufacturer | ASRock Rack |
| Product ID | 1U4LW-B650/2L2T |
| CPU |
Supports AMD Ryzen 7000 Series Processors Socket AM5 Up to 105W TDP |
| Chipset | AMD B650 |
| Memory |
4 x DDR5 DIMM slots Maximum 128GB Capacity 5200 MHz (1DPC), 3600 MHz (2DPC) ECC/Non-ECC UDIMM |
| Video |
ASPEED AST2600 HDMI and DisplayPort require AMD Processor with Graphics |
| Storage Technology |
4 x SATA3 6Gb/s Connectors 1 x M.2: PCI-E 5.0 x4 |
| Connectivity |
2 x Broadcom BCM57416 10G LAN 2 x Intel I210 1GbE LAN 1 x Realtek RTL8211F 1GbE Dedicated IPMI LAN |
| Expansion |
1 x PCI-E 4.0 x16 slot (Full Height) Supports up to 75W |

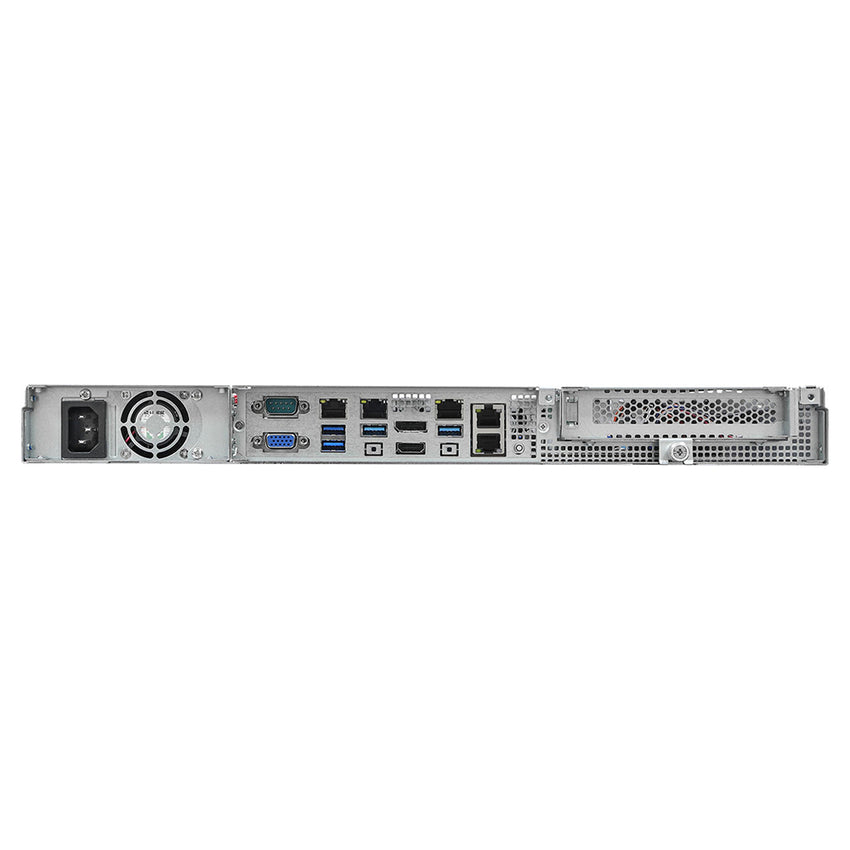

| Rear I/O |
1 x Serial COM 1 x VGA 1 x RJ45 1GbE Dedicated IPMI 4 x USB 3.2 (Gen1) 2 x RJ45 1GbE LAN 1 x DisplayPort (Requires Processor with Graphics) 1 x HDMI (Requires Processor with Graphics) 2 x RJ45 10G LAN 1 x UID Button with LED |

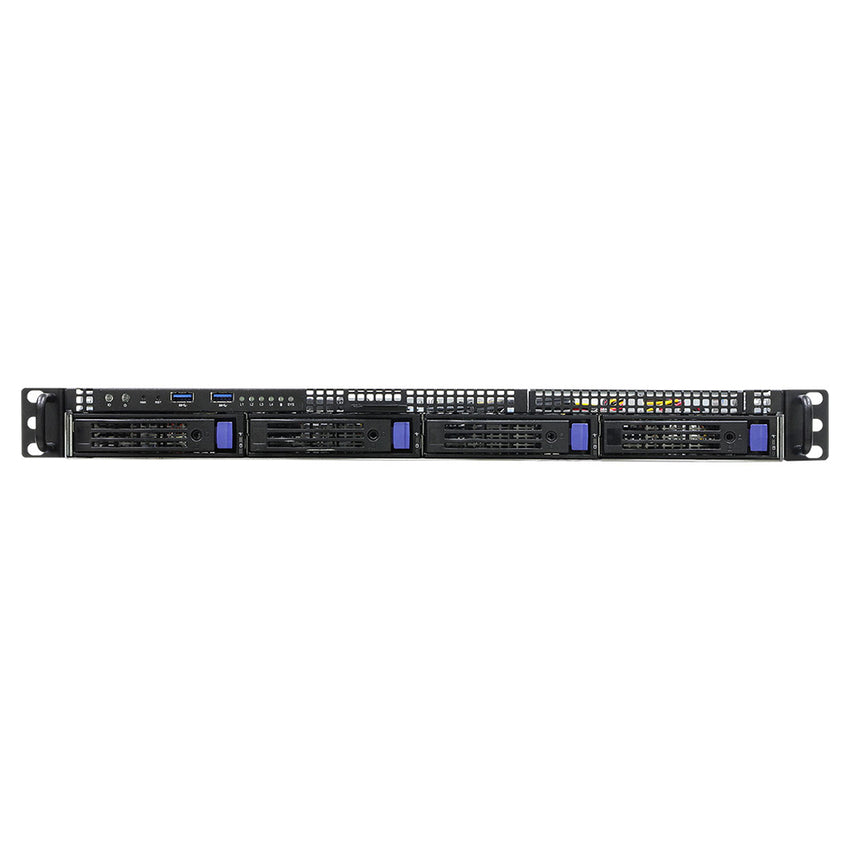

| Front Panel I/O |
1 x UID Button with LED 1 x Power Button with LED 1 x NMI Button 1 x Reset Button 2 x USB 3.2 (Gen1) 6 x Status LED (LAN, HDD, System) |
| Drive Support |
4 x 3.5" Hotswap SATA Drive Bays 1 x M.2 2280/2242 slot (PCI-E 5.0 x4) |
| Power Supply |
400W 80-PLUS Platinum Power Supply |
| Cooling |
5 x 40x28mm Case Fans |
| Case Dimensions |
1U Form Factor 533.4 x 482.6 x 44.4mm 21" x 19" x 1.75" (in inches) |
| Environmental |
Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Non-operating Humidty: 20% to 90% (non-condensing) |
| Warranty | 1 Year Manufacturer's Limited Warranty |
PRODUCT ID: 1U4LW-B650/2L2T
