Manufacturer	ASRock Rack
Product ID	1U2LW-C242
CPU	Supports Intel Xeon E-2100 Processors LGA1151
Chipset	Intel C242
Memory	4 x DDR4 DIMM slots Supports ECC or Non-ECC UDIMM Supports up to 128 GB Capacity Dual Channel
Video	Aspeed AST2500 with 32MB VRAM
Storage Technology	5 x SATA3 6Gb/s Ports 1 x SATA DOM (shared with M.2) 1 x M.2 Slots (SATA or PCI-E 3.0 x4)
Connectivity	2 x Intel I210 GbE LAN Supports Wake-On-LAN Supports Teaming Function Supports PXE 1 x Realtek RTL8211E Dedicated IPMI
Expansion	1 x PCI-E 3.0 x16 slot (single width)

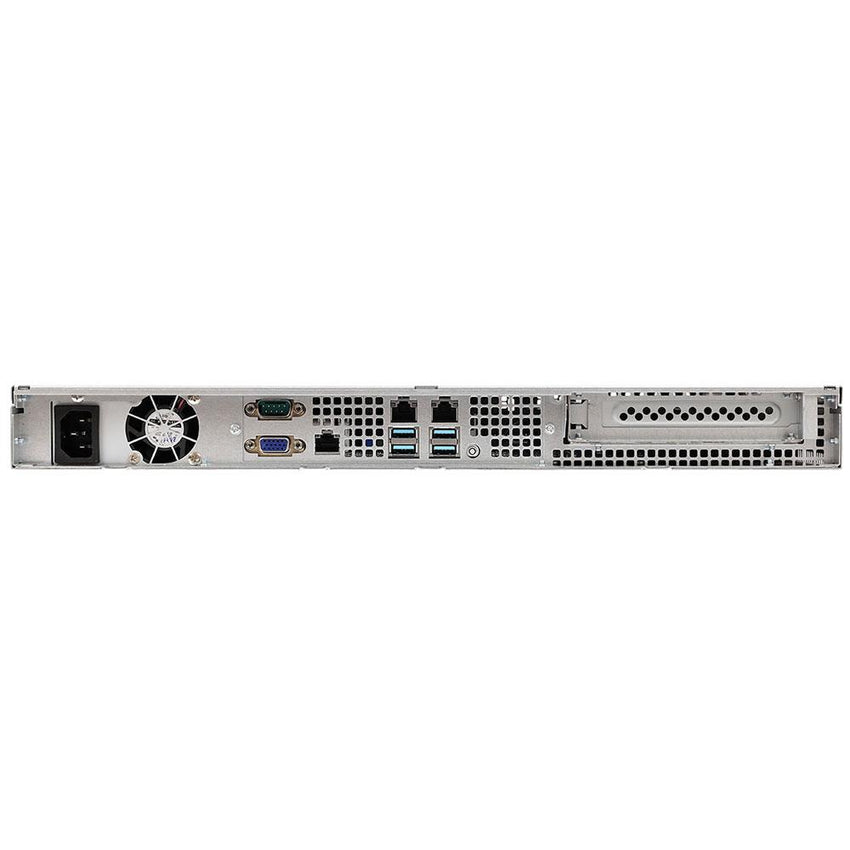

Rear I/O	1 x Serial COM Port 1 x VGA 1 x RJ45 Dedicated IPMI 2 x RJ45 GbE LAN 4 x USB 3.0
Front Panel I/O	1 x Power Button 5 x Status LED 1 x Reset Button 2 x USB 2.0
Drive Support	1 x 3.5" Drive Bay 1 x 3.5"/2.5" Drive Bay
Power Supply	315W 80 PLUS Gold Power Supply
Cooling	3 x 40x28mm PWM Case Fans
Case Dimensions	1U Form Factor 394 x 482.6 x 44.4mm 15.5" x 19" x 1.75" (in inches)
Environmental	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Warranty	1 Year Manufacturer's Limited Warranty
