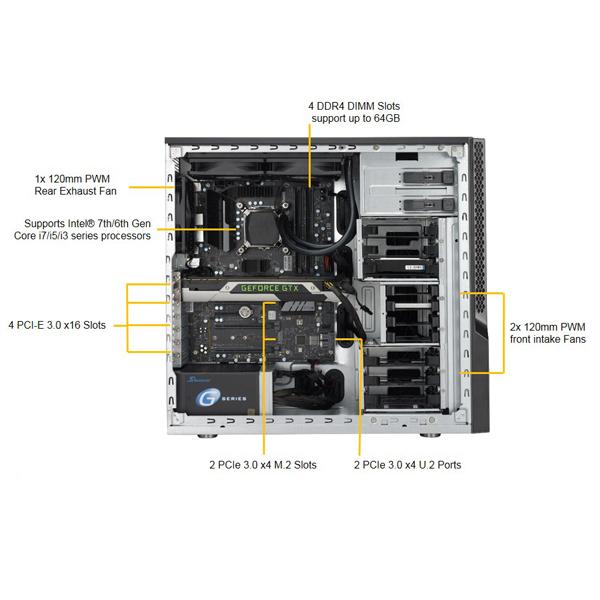

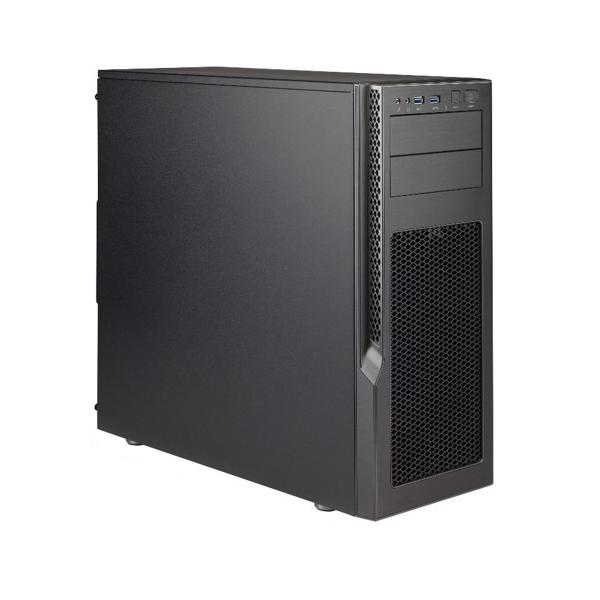

Supermicro SYS-5130AD-T Intel Z270 Mid-Tower Barebone Workstation
Manufacturer	Supermicro
Model Number	5130AD-T
CPU	Intel Core i3/i5/i7 7th/6th Generation Processor Support 160W TDP MAX LGA 1151
Chipset	Intel Z270
Memory	4x DDR4 DIMM Slots 2400MHz Minimum Non-ECC, Un-buffered 64GB Maximum
Video	CPU or GPU Dependent
Storage Technology	6x SATA 6Gbps (RAID 0, 1, 5, 10) 2x M.2 NVMe (RAID 0, 1) or 2x U.2 (RAID 0, 1)
Connectivity	2x Intel Gigabit Ethernet (i219V and i210-AT)
Expansion	2x PCIe x16 (3.0) or 2x PCIe x8 (Auto switching) 2x PCIe x8 (3.0) 1x PCIe x4 (3.0) Maximum GPU length 320mm with all drive cages installed Maximum GPU length 420mm without the dedicated 2.5" drive cage

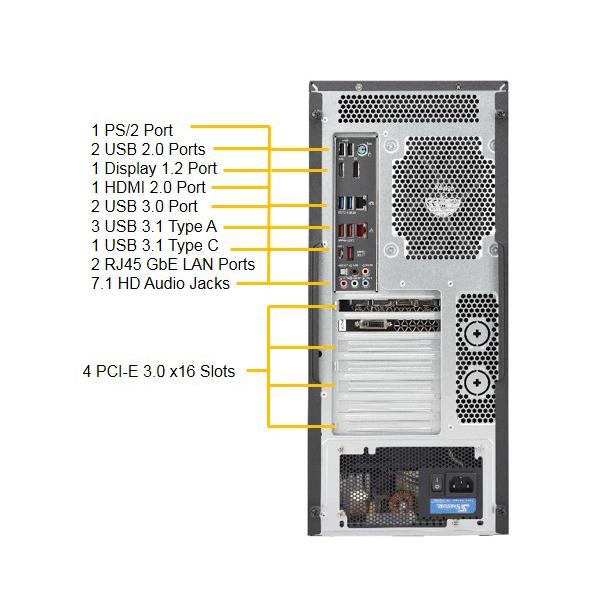

Rear I/O	1x PS/2 2x USB 2.0 1x DisplayPort 1.2 1x HDMI 2.0 2x USB 3.0 3x USB 3.1 1x USB 3.1 Type C 2x RJ45 GbE 6x Audio I/O 4x PCI Expansion Bays
Front I/O	1x Power Switch with LED 1x Reset Switch 1x Hard Drive activity LED 2x USB 3.0 Ports 2x Audio I/O 2x Tool-less 5.25" Expansion Bays
Drive Support	Removable 3.5" and 2.5" HDD Cages with tool-less trays 4x 2.5" Drive Bays 6x 3.5" and 2.5" Combination Drive Bays 2x M.2 NVMe SSD or 2x U.2 SSD
Power Supply	750W Power Supply with Semi-Modular Cabling 100 ~ 240V Operation 80 PLUS Gold Certified
Case Dimensions	460mm x 493mm x 200mm 18.1" x 19.4" x 7.9" (in inches)
Case Cooling	2x 120mm front cooling fans 1x 120mm rear exhaust fan Compatible with 120mm and 240mm closed-loop water cooling kits
Warranty	1-Year Warranty on Parts and Labor
